Spanner 및 BigQuery: 실시간 사기 방어 쉴드

1. 소개

플레이어가 동물 아바타를 만들고, 세계를 탐험하고, 게임 내 통화를 거래하는 멀티플레이어 온라인 게임인 Petverse의 백엔드에 오신 것을 환영합니다.

최근 게임 경제가 위협을 받고 있습니다. 부유한 Dog 플레이어의 계정에서 막대한 금액이 빠져나가 프리미엄 참치 주식으로 완전히 전환됩니다. 부유한 개들에게서 훔쳐 고양이 대중에게 먹이는 '로빈 후드 고양이' 집단이 있는 것 같습니다.

이 Codelab에서는 주범과 자동화된 봇 조직을 포착하는 실시간 사기 방어 방패를 빌드합니다. Spanner의 운영 데이터가 BigQuery의 분석과 융합되어 그래프 (GQL) 및 관계형 쿼리를 사용하여 복잡한 사기 패턴을 감지하고 조사하는 방법을 알아봅니다.

실습할 내용

BigQuery 연속 쿼리를 사용하여 실시간 스트림에서 비정상치를 감지하고 Spanner로 푸시합니다.
Spanner Graph를 사용하여 금융 관계를 추적하여 사기 조직 조사
Spanner 벡터 검색을 사용하여 유사한 프로필 설명을 찾아 봇 계정을 식별합니다.

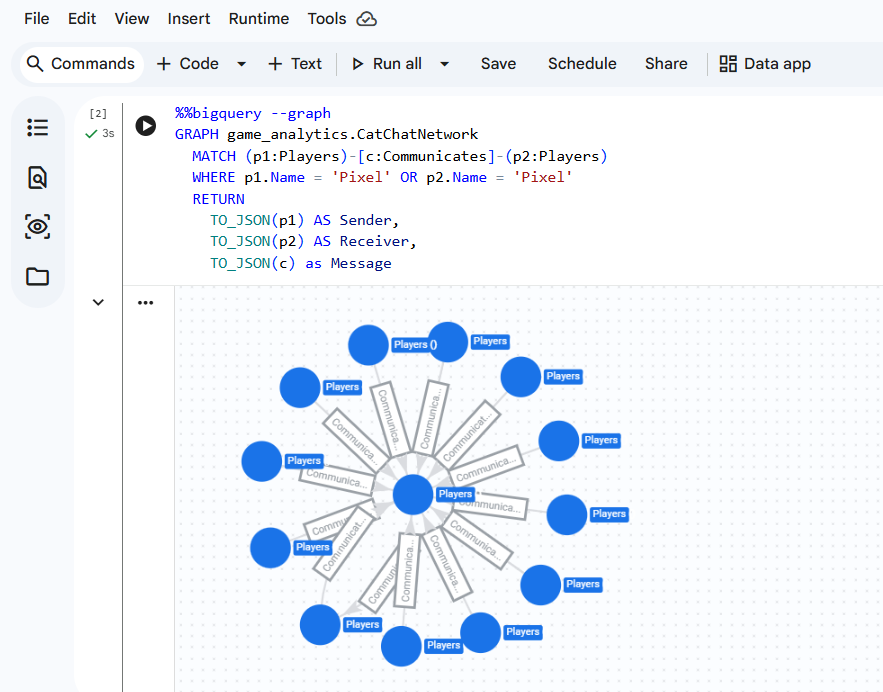

BigQuery 그래프를 사용하여 대규모 커뮤니케이션 로그를 분석하여 조직 음모를 밝혀내세요.

필요한 항목

결제가 사용 설정된 Google Cloud 프로젝트
SQL, 터미널 명령어, Python에 관한 기본 지식
GitHub 계정이 필요할 수 있습니다 (코드는 GitHub에 호스팅됨).

대상: 중급 개발자, 데이터 엔지니어, 설계자

예상 총 소요 시간: 45~60분

비용 추정: 이 Codelab에서 만든 리소스의 비용은 5달러 미만입니다.

2. 시작하기 전 / 설정

Google Cloud 프로젝트 만들기 또는 선택

이 실습에 필요한 서비스를 사용하려면 결제가 사용 설정된 Google Cloud 프로젝트가 필요합니다.

Google Cloud 콘솔의 프로젝트 선택기 페이지에서 Google Cloud 프로젝트를 선택하거나 만듭니다.
Cloud 프로젝트에 결제가 사용 설정되어 있는지 확인합니다. 결제가 사용 설정되어 있는지 확인하는 방법을 알아보세요.
Cloud Console 홈페이지에서 프로젝트 ID를 찾습니다.

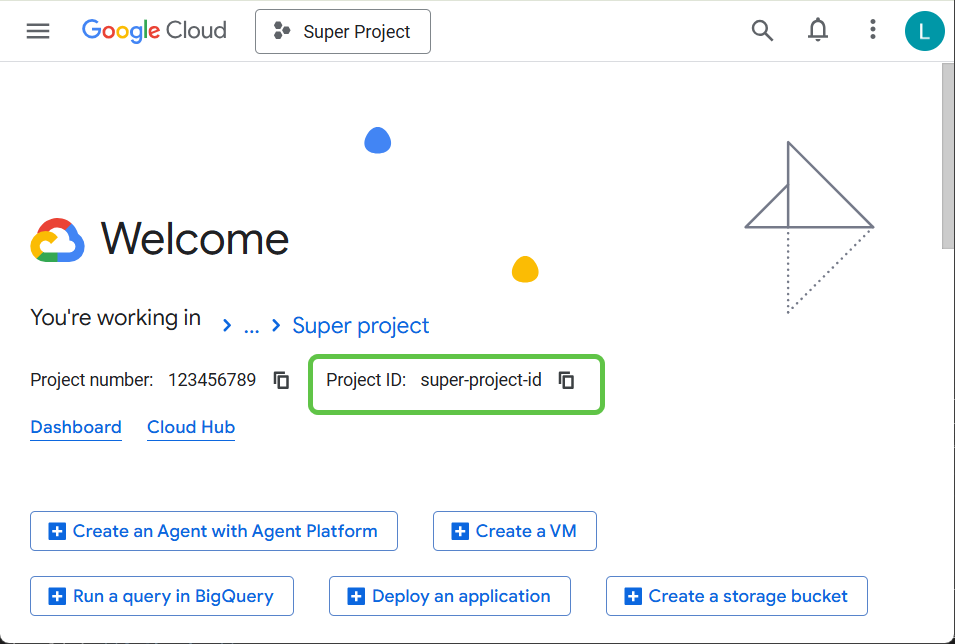

Cloud 콘솔 홈페이지

Cloud Shell 시작

Google Cloud Shell을 실행 환경으로 사용합니다. Cloud Shell에는 gcloud, git 등 필요한 도구가 사전 설치되어 있습니다.

Google Cloud Shell로 이동합니다.
메시지가 표시되면 승인을 클릭합니다.
Cloud Shell 터미널에서 환경 변수를 설정하여 프로젝트에서 작업 중인지 확인합니다.

export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID

Cloud Shell: gcloud config를 사용하여 프로젝트 설정

필요한 API 사용 설정

다음 명령어를 실행하여 Spanner, BigQuery, Vertex AI용 API를 사용 설정합니다.

gcloud services enable spanner.googleapis.com \
    bigquery.googleapis.com \
    aiplatform.googleapis.com \
    run.googleapis.com

저장소 클론

애플리케이션 코드와 샘플 스키마가 포함된 저장소를 클론합니다.

git clone https://github.com/GoogleCloudPlatform/cloud-spanner-samples.git
cd cloud-spanner-samples/spanner-bq-fraud-defense

3. 인프라 프로비저닝

이제 BigQuery에서 데이터 웨어하우스를 설정하고 Spanner에서 운영 데이터베이스를 설정합니다.

BigQuery 데이터 세트 및 연결 설정

BigQuery가 게임의 원격 분석 스트림을 분석합니다.

Google Cloud Shell의 콘솔에서 다음 명령어를 실행하여 프로젝트 ID가 설정되어 있는지 확인합니다.

export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID

game_analytics BigQuery 데이터 세트를 만듭니다.

bq mk -d --location=US game_analytics

스토리지 버킷 및 (선택적으로) Spanner에 연결할 연결을 만듭니다.

bq mk --connection --location=US --project_id=$PROJECT_ID \
    --connection_type=CLOUD_RESOURCE unicorn-connection

스키마 파일을 사용하여 GameplayTelemetry, AccountSignals, Players, ChatLogs 테이블의 스키마를 만듭니다.

bq query --use_legacy_sql=false < bq_schema.sql

Spanner 설정

Google Cloud Spanner는 운영 실시간 트랜잭션을 처리합니다. 이 실습에서는 비용 효율적인 100처리 단위 (PU) 인스턴스를 사용합니다.

Spanner 인스턴스를 만듭니다.

gcloud spanner instances create game-instance \
    --config=regional-us-central1 \
    --description="Game Instance" \
    --processing-units=100 \
    --edition=ENTERPRISE

Spanner 데이터베이스 game-db를 만듭니다.

gcloud spanner databases create game-db --instance=game-instance

애플리케이션 테이블 (Players, Transactions, AccountSignals) 및 속성 그래프 (PlayerNetwork)로 Spanner 스키마를 업데이트합니다.

gcloud spanner databases ddl update game-db --instance=game-instance --ddl-file=spanner_schema.sql

멀티모달 벡터 검색을 위한 AvatarSearchIndex를 만듭니다.

gcloud spanner databases ddl update game-db --instance=game-instance \
    --ddl="CREATE SEARCH INDEX AvatarSearchIndex ON Players(AvatarDescriptionTokens)"

BigQuery로 데이터 가져오기

데모 데이터를 BigQuery로 가져옵니다.

bq load --source_format=AVRO game_analytics.GameplayTelemetry gs://sample-data-and-media/spanner-bq-fraud-heist/GameplayTelemetry
bq load --source_format=AVRO game_analytics.AccountSignals gs://sample-data-and-media/spanner-bq-fraud-heist/AccountSignals
bq load --source_format=AVRO game_analytics.Players gs://sample-data-and-media/spanner-bq-fraud-heist/Players
bq load --source_format=AVRO game_analytics.ChatLogs gs://sample-data-and-media/spanner-bq-fraud-heist/ChatLogs

BigQuery 콘솔로 이동하여 game_analytics 데이터 세트의 데이터를 탐색합니다.

BigQuery 콘솔

Spanner로 데이터 가져오기

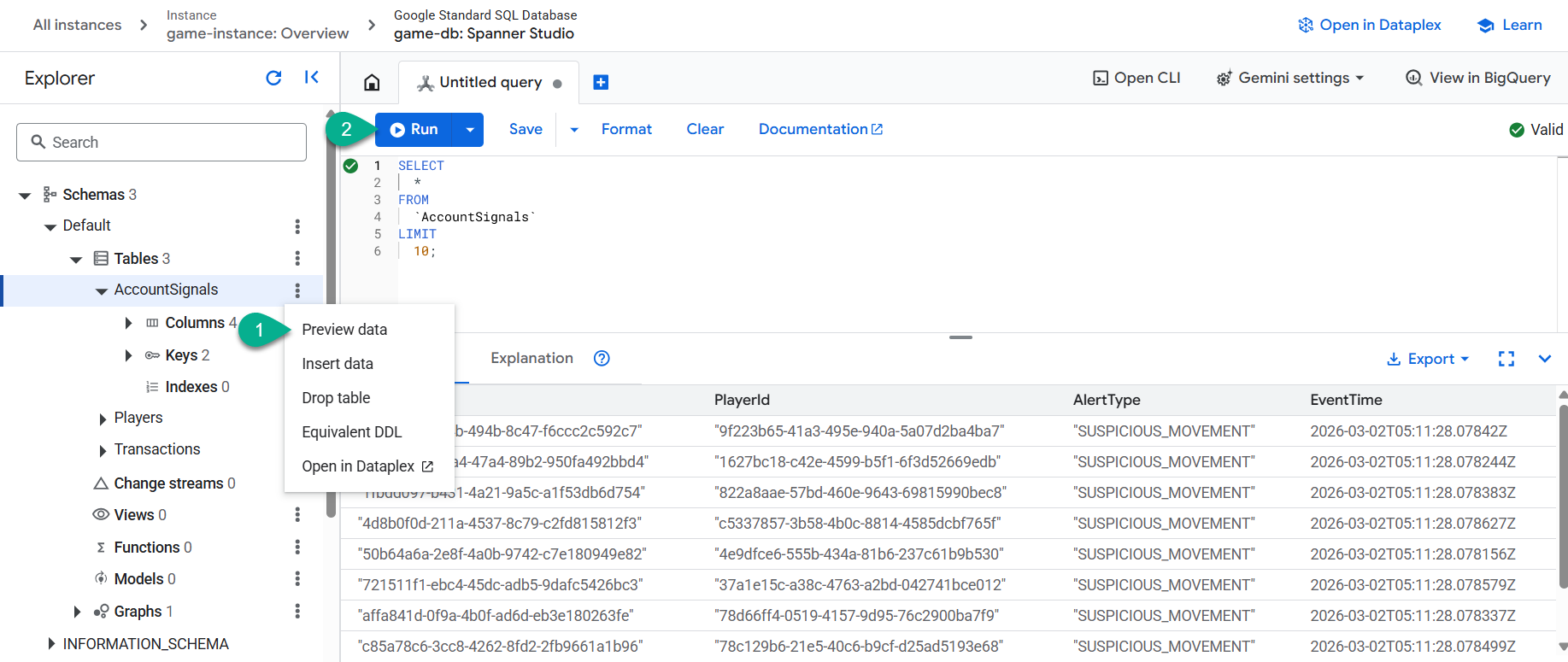

Spanner 콘솔로 이동하여 game-db 데이터베이스의 데이터를 살펴봅니다.

Spanner 스튜디오를 클릭하고 새 쿼리 (+)를 엽니다.

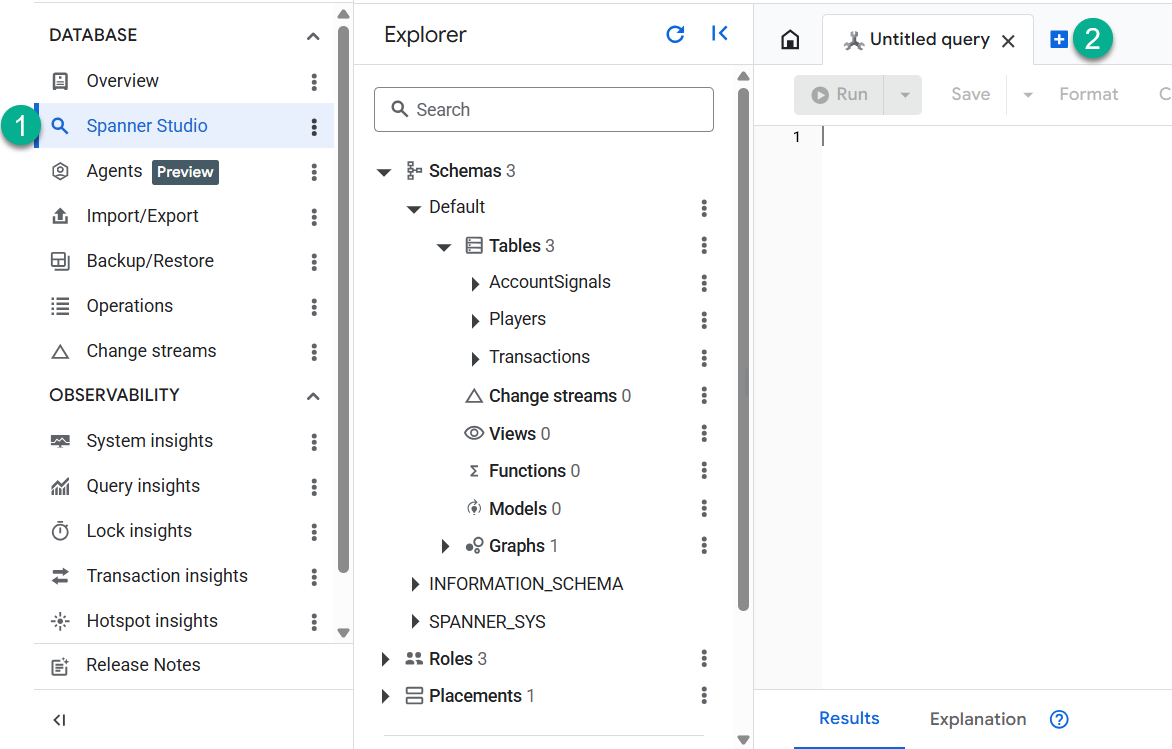

Spanner 콘솔

다음 INSERT 문을 쿼리 편집기에 붙여넣고 실행을 클릭합니다.

-- Table: Players
INSERT INTO Players (
  PlayerId,
  Name,
  Species,
  Clan,
  AvatarDescription,
  ProfilePictureUrl,
  CreatedAt
) VALUES
  ('dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 'Pixel', 'Cat', 'CatClan', 'A heroic cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/pixel_profile_booth.png', '2026-03-02T05:11:28.077335+00:00'),
  ('e82df4fb-0b6d-44dc-8609-70b41430af38', 'Rocky_1', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077374+00:00'),
  ('ea3afac7-54f0-4f68-8ed5-a5b6bd386c59', 'Whiskers_2', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077389+00:00'),
  ('f37d558b-fd0a-404c-a193-bc3a8a2edfba', 'Felix_3', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077407+00:00'),
  ('f3687206-405e-43b6-afb0-8ca73eee5dd1', 'Luna_4', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077419+00:00'),
  ('82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 'Luna_5', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077429+00:00'),
  ('755c7aff-e538-4681-9b90-4b870a42ac72', 'Buddy_6', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077439+00:00'),
  ('8a034e84-26b3-4198-8ec9-3749b1f60537', 'Charlie_7', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077462+00:00'),
  ('ca288a07-2bf8-46fa-a121-9bd0d0f44c64', 'Rocky_8', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077474+00:00'),
  ('7b2881f0-289b-4ea4-9c0e-c1748249b70a', 'Bella_9', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077484+00:00'),
  ('153f4022-a4ce-404a-8544-25d004fd34ad', 'Simba_10', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077494+00:00'),
  ('3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', 'Charlie_11', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077507+00:00'),
  ('e37b6dcf-7ccb-47d0-8b9d-0da2fa30ad09', 'Felix_12', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077516+00:00'),
  ('0b395a7b-0673-4348-afd0-7cea9252629f', 'Bella_13', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077527+00:00'),
  ('64921a63-bea6-4a5c-9e49-7a817678c94f', 'Charlie_14', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077537+00:00'),
  ('0d9040df-34a3-4e54-b660-a85e3c60a6fe', 'Felix_15', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077546+00:00'),
  ('188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', 'Max_16', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077556+00:00'),
  ('a2eaefc9-dbff-4704-b908-74518d687e17', 'Rocky_17', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/shiba_inu_105.jpg', '2026-03-02T05:11:28.077565+00:00'),
  ('b59d9b9a-a169-43c1-832d-7e7d4acfa19c', 'Felix_18', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077581+00:00'),
  ('7019b91a-d908-4c93-8ed2-d1c60e518630', 'Nala_19', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077595+00:00'),
  ('1a972a71-a530-407a-b3f7-1dd9b2532cec', 'Luna_20', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077604+00:00'),
  ('3bd0489d-3f43-428d-be2d-0434f0e04ed8', 'Luna_21', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077613+00:00'),
  ('28d7ab21-7ca7-435b-bdc4-5266a381ef89', 'Whiskers_22', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077623+00:00'),
  ('87d880d4-c949-40e3-8d76-9307b45d57fe', 'Rocky_23', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077632+00:00'),
  ('b49a4523-83ff-4f59-8fca-54356928a18b', 'Nala_24', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077641+00:00'),
  ('1e049026-1231-4763-bc50-82cb51950fa2', 'Nala_25', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077650+00:00'),
  ('e83caccd-e81e-454a-bf92-9d9a5a509e25', 'Simba_26', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077659+00:00'),
  ('45650b49-9701-4415-92a9-79073243d198', 'Simba_27', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077668+00:00'),
  ('2eb95b36-c9c3-4720-849b-fc240c9434da', 'Bella_28', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/samoyed_97.jpg', '2026-03-02T05:11:28.077677+00:00'),
  ('491943d2-8aa3-4484-9d6d-afcab7ec579a', 'Buddy_29', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077687+00:00'),
  ('004ac8b2-a37d-42c8-aba3-35b204f596f0', 'Max_30', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077697+00:00'),
  ('5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 'Whiskers_31', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077706+00:00'),
  ('4736fc20-1c22-49c2-af87-c35802302507', 'Luna_32', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077715+00:00'),
  ('d98fc7ff-dd92-4723-994c-6267ef951bcc', 'Buddy_33', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077797+00:00'),
  ('3de80488-e1b6-4908-a6ec-9c51f46f43b9', 'Luna_34', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077821+00:00'),
  ('710128e0-4e1d-479c-acbc-497bbc5bc802', 'Bella_35', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/scottish_terrier_108.jpg', '2026-03-02T05:11:28.077836+00:00'),
  ('7e5d416f-f42c-410e-8e2a-19be0cdfc1e5', 'Simba_36', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077850+00:00'),
  ('b5af580c-4998-4f68-b52f-5c5b6a9d0aab', 'Buddy_37', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/scottish_terrier_108.jpg', '2026-03-02T05:11:28.077864+00:00'),
  ('145cc805-810a-4320-864d-ba6b5c6fbc33', 'Max_38', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077884+00:00'),
  ('34fa84c8-3356-4ed6-9ac5-967cd2baabac', 'Whiskers_39', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077894+00:00'),
  ('a50c967b-2e89-448d-be47-4df628c51572', 'Luna_40', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077906+00:00'),
  ('64aeeb22-42db-46bf-85bd-b21b135c9803', 'Simba_41', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077915+00:00'),
  ('dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', 'Felix_42', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077924+00:00'),
  ('d9380e8d-8949-4849-af57-7a91a1a2b953', 'Bella_43', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077933+00:00'),
  ('88a425a0-b499-4825-8a16-3d33b85feec9', 'Whiskers_44', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077942+00:00'),
  ('e17ae312-37c6-4a66-9172-2d20d8528033', 'Simba_45', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077958+00:00'),
  ('ae82282e-d380-4500-99e0-2dc4e276c0cf', 'Nala_46', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077967+00:00'),
  ('9ce13d41-dede-4658-a7e4-7bc00372d65c', 'Simba_47', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077976+00:00'),
  ('8db26b5c-2c09-4578-89bf-f9afaf765e36', 'Whiskers_48', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077989+00:00'),
  ('eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', 'Luna_49', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078002+00:00'),
  ('3f064471-24a0-47cd-8927-925cb3e5df7f', 'Felix_50', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.078012+00:00'),
  ('ed20f879-2d42-4ba7-8df7-d696c4b6aafd', 'Whiskers_51', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.078021+00:00'),
  ('7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 'Buddy_52', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.078030+00:00'),
  ('398de7e0-8f4f-44ba-adfe-503a157cfe7c', 'Rocky_53', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.078040+00:00'),
  ('0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 'Bella_54', 'Dog', 'DogClan', 'A loyal golden retriever with a happy smile', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078049+00:00'),
  ('0b1e7a03-2922-4d53-8871-290520e6bb76', 'Max_55', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078059+00:00'),
  ('d0ad6342-88fd-443f-82ba-919fc1d652d0', 'Luna_56', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.078068+00:00'),
  ('73e9a7c4-09e6-46d8-a093-b241d7d1d5df', 'Charlie_57', 'Dog', 'DogClan', 'A loyal golden retriever with a happy smile', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078081+00:00'),
  ('55a1207d-a029-48da-a79d-c1f3f6824a37', 'Buddy_58', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078090+00:00'),
  ('61dd4370-bff0-4d09-be31-19f19c4dad5d', 'Max_59', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078099+00:00'),
  ('4e9dfce6-555b-434a-81b6-237c61b9b530', 'Merry_Cat_0', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078112+00:00'),
  ('686337b0-304e-4270-89c3-d015f9039294', 'Merry_Cat_1', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.078165+00:00'),
  ('1627bc18-c42e-4599-b5f1-6f3d52669edb', 'Merry_Cat_2', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.078212+00:00'),
  ('215b3d04-402a-4ac2-83ed-1edb9a421691', 'Merry_Cat_3', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.078258+00:00'),
  ('78d66ff4-0519-4157-9d95-76c2900ba7f9', 'Merry_Cat_4', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.078301+00:00'),
  ('822a8aae-57bd-460e-9643-69815990bec8', 'Merry_Cat_5', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078349+00:00'),
  ('9f223b65-41a3-495e-940a-5a07d2ba4ba7', 'Merry_Cat_6', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.078390+00:00'),
  ('3910b199-caf7-4822-8346-1ba9bd750c8e', 'Merry_Cat_7', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.078427+00:00'),
  ('78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'Merry_Cat_8', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.078463+00:00'),
  ('eba84e9d-bd10-466e-8fcd-899c0a868149', 'Merry_Cat_9', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078508+00:00'),
  ('37a1e15c-a38c-4763-a2bd-042741bce012', 'Merry_Cat_10', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078544+00:00'),
  ('c5337857-3b58-4b0c-8814-4585dcbf765f', 'Merry_Cat_11', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078587+00:00');

-- Table: Transactions
INSERT INTO Transactions (
  TransactionId,
  SenderId,
  ReceiverId,
  Amount,
  Timestamp,
  IsSuspicious
) VALUES
  ('83086ce9-1813-40c7-8e60-624662e7dff8', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', '4e9dfce6-555b-434a-81b6-237c61b9b530', 13481, '2026-03-02T05:11:28.078136+00:00', TRUE),
  ('8c8f38a8-424f-4752-b662-78800e04b137', '4e9dfce6-555b-434a-81b6-237c61b9b530', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 7327, '2026-03-02T05:11:28.078145+00:00', TRUE),
  ('e4b88c5e-ad32-4fa7-87d7-7e7e70ab133a', '3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', '686337b0-304e-4270-89c3-d015f9039294', 11283, '2026-03-02T05:11:28.078182+00:00', TRUE),
  ('8fe11946-c0ef-4b84-a259-11850955a3ea', '686337b0-304e-4270-89c3-d015f9039294', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 8181, '2026-03-02T05:11:28.078191+00:00', TRUE),
  ('c2d024eb-9131-47ce-84c0-3404e5a01db0', '145cc805-810a-4320-864d-ba6b5c6fbc33', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 11086, '2026-03-02T05:11:28.078228+00:00', TRUE),
  ('7a51d50f-63ac-4406-b4df-2d6fd862977f', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 9443, '2026-03-02T05:11:28.078237+00:00', TRUE),
  ('edc980d0-539e-4951-9eaf-4ba98b88b40c', '2eb95b36-c9c3-4720-849b-fc240c9434da', '215b3d04-402a-4ac2-83ed-1edb9a421691', 10438, '2026-03-02T05:11:28.078274+00:00', TRUE),
  ('0e98eb5f-a942-4bb3-931a-1de1bdbb2e03', '215b3d04-402a-4ac2-83ed-1edb9a421691', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 7612, '2026-03-02T05:11:28.078286+00:00', TRUE),
  ('13cf3599-f18a-47a5-8b7d-71f9eda250ab', 'ca288a07-2bf8-46fa-a121-9bd0d0f44c64', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 14301, '2026-03-02T05:11:28.078318+00:00', TRUE),
  ('db7051ef-aa4b-47fa-a54e-54ff03dbabf1', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 10294, '2026-03-02T05:11:28.078330+00:00', TRUE),
  ('9080d8a1-def2-4b95-bc9f-56c25ec9c3ba', 'e82df4fb-0b6d-44dc-8609-70b41430af38', '822a8aae-57bd-460e-9643-69815990bec8', 9613, '2026-03-02T05:11:28.078365+00:00', TRUE),
  ('06593b48-2546-4a52-a078-cf4ddfaed856', '822a8aae-57bd-460e-9643-69815990bec8', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 9787, '2026-03-02T05:11:28.078376+00:00', TRUE),
  ('d540b1d5-5e20-4252-985c-275b82fdad80', '491943d2-8aa3-4484-9d6d-afcab7ec579a', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 11403, '2026-03-02T05:11:28.078406+00:00', TRUE),
  ('6ba654b3-4c04-48ed-9975-1aae3f557a38', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 13564, '2026-03-02T05:11:28.078413+00:00', TRUE),
  ('da73004f-a9e6-4078-af54-4dc7a697a0e4', '710128e0-4e1d-479c-acbc-497bbc5bc802', '3910b199-caf7-4822-8346-1ba9bd750c8e', 10088, '2026-03-02T05:11:28.078442+00:00', TRUE),
  ('ac25cfd6-1c64-483a-8b36-5fe4c6c36e36', '3910b199-caf7-4822-8346-1ba9bd750c8e', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 11354, '2026-03-02T05:11:28.078450+00:00', TRUE),
  ('3f09bdb0-5831-44f8-b293-98cbdb953c9d', 'd98fc7ff-dd92-4723-994c-6267ef951bcc', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 12426, '2026-03-02T05:11:28.078479+00:00', TRUE),
  ('65803100-7b84-4ff5-a273-b54fe48d5ad2', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 13858, '2026-03-02T05:11:28.078490+00:00', TRUE),
  ('7caeab6c-eb5c-4284-9857-87ab6ba744d1', '398de7e0-8f4f-44ba-adfe-503a157cfe7c', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 14851, '2026-03-02T05:11:28.078523+00:00', TRUE),
  ('441b31cd-1c7b-4385-a5da-490a6c98d58d', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 12481, '2026-03-02T05:11:28.078530+00:00', TRUE),
  ('ea509bae-75a0-4878-b73c-0688efd2808e', 'd9380e8d-8949-4849-af57-7a91a1a2b953', '37a1e15c-a38c-4763-a2bd-042741bce012', 8042, '2026-03-02T05:11:28.078564+00:00', TRUE),
  ('7ac7d043-2744-4689-835a-20b21dca962b', '37a1e15c-a38c-4763-a2bd-042741bce012', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 11248, '2026-03-02T05:11:28.078572+00:00', TRUE),
  ('1fdfc9a6-af31-4151-a96e-6df93e8fafff', '3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 11357, '2026-03-02T05:11:28.078603+00:00', TRUE),
  ('3408e82d-61c5-49e1-a037-b8e25422d9ca', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 13411, '2026-03-02T05:11:28.078612+00:00', TRUE),
  ('a63fa5df-9d00-44e4-bd00-3d993c737a99', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', 312, '2026-03-02T05:11:28.078658+00:00', FALSE),
  ('26b8b704-7b50-4ce5-894f-452741649286', 'e17ae312-37c6-4a66-9172-2d20d8528033', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', 52, '2026-03-02T05:11:28.078679+00:00', FALSE),
  ('9d8197de-888c-42ce-8bcf-ef0fe6fccc39', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', 65, '2026-03-02T05:11:28.078700+00:00', FALSE),
  ('b0fd1afe-871a-4afc-be00-5c203b147a90', 'eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', '61dd4370-bff0-4d09-be31-19f19c4dad5d', 292, '2026-03-02T05:11:28.078715+00:00', FALSE),
  ('b7be0c34-2d44-4d48-8cef-ddb74dd11260', 'ea3afac7-54f0-4f68-8ed5-a5b6bd386c59', '45650b49-9701-4415-92a9-79073243d198', 199, '2026-03-02T05:11:28.078730+00:00', FALSE),
  ('0baea611-d24a-43d6-be24-49286f4b80bc', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'e17ae312-37c6-4a66-9172-2d20d8528033', 313, '2026-03-02T05:11:28.078739+00:00', FALSE),
  ('936234c3-3d96-4649-8679-cdc7a35c7c14', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', 306, '2026-03-02T05:11:28.078748+00:00', FALSE),
  ('f29c2881-9ce1-47e3-8934-be21250d807b', '55a1207d-a029-48da-a79d-c1f3f6824a37', '1e049026-1231-4763-bc50-82cb51950fa2', 356, '2026-03-02T05:11:28.078757+00:00', FALSE),
  ('aea90ceb-8669-48b2-ad20-903fa2592cc4', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'ca288a07-2bf8-46fa-a121-9bd0d0f44c64', 320, '2026-03-02T05:11:28.078766+00:00', FALSE),
  ('e5cb67d4-7fb5-4788-b705-e4b156846cf1', '37a1e15c-a38c-4763-a2bd-042741bce012', '45650b49-9701-4415-92a9-79073243d198', 96, '2026-03-02T05:11:28.078780+00:00', FALSE),
  ('1484d14a-4ece-4c60-8760-aca02d8912d3', 'b49a4523-83ff-4f59-8fca-54356928a18b', '4e9dfce6-555b-434a-81b6-237c61b9b530', 286, '2026-03-02T05:11:28.078797+00:00', FALSE),
  ('55bfca86-c16e-4d83-a3be-4a9339b5ca90', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 'e82df4fb-0b6d-44dc-8609-70b41430af38', 94, '2026-03-02T05:11:28.078812+00:00', FALSE),
  ('626b175d-7954-4b48-bfc3-47e1759eb62e', '4e9dfce6-555b-434a-81b6-237c61b9b530', '2eb95b36-c9c3-4720-849b-fc240c9434da', 364, '2026-03-02T05:11:28.078826+00:00', FALSE),
  ('657b64cd-eb82-47f7-af15-c485f09e4c6a', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 180, '2026-03-02T05:11:28.078835+00:00', FALSE),
  ('45a3d118-9ada-400f-8007-f90f6573012f', 'f3687206-405e-43b6-afb0-8ca73eee5dd1', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 21, '2026-03-02T05:11:28.078844+00:00', FALSE),
  ('bad0c577-9063-4315-a923-609b55354aec', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 96, '2026-03-02T05:11:28.078852+00:00', FALSE),
  ('f3f3c44c-29e5-4356-bcdb-34fceead7277', '4e9dfce6-555b-434a-81b6-237c61b9b530', '45650b49-9701-4415-92a9-79073243d198', 206, '2026-03-02T05:11:28.078863+00:00', FALSE),
  ('89e9f697-6cfe-4a11-ada1-2846a9a0e815', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 62, '2026-03-02T05:11:28.078878+00:00', FALSE),
  ('2d980b9e-ec93-4d4c-98b1-4f9440489e0e', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', 'e17ae312-37c6-4a66-9172-2d20d8528033', 379, '2026-03-02T05:11:28.078894+00:00', FALSE),
  ('1eabdf25-5b41-4773-8870-bb3e71ad320a', '0b395a7b-0673-4348-afd0-7cea9252629f', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', 10, '2026-03-02T05:11:28.078911+00:00', FALSE),
  ('eeb9524c-5aa7-4c5a-a8b6-b96fea0c0502', '1a972a71-a530-407a-b3f7-1dd9b2532cec', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 200, '2026-03-02T05:11:28.079050+00:00', FALSE),
  ('2c38f9e6-97fe-477f-8ceb-a6e29880c926', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 197, '2026-03-02T05:11:28.079063+00:00', FALSE),
  ('a85ab466-5c6d-4863-b5fd-ec5418a52534', 'a50c967b-2e89-448d-be47-4df628c51572', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 215, '2026-03-02T05:11:28.079079+00:00', FALSE),
  ('b273c634-1b47-492e-9651-d32e54bdcbb8', 'ae82282e-d380-4500-99e0-2dc4e276c0cf', '491943d2-8aa3-4484-9d6d-afcab7ec579a', 298, '2026-03-02T05:11:28.079088+00:00', FALSE),
  ('93956d3c-c44b-4624-87d8-ac139b1310d0', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', '2eb95b36-c9c3-4720-849b-fc240c9434da', 495, '2026-03-02T05:11:28.079096+00:00', FALSE),
  ('1d827b0f-710e-4af6-8492-4e8753c11584', '153f4022-a4ce-404a-8544-25d004fd34ad', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 242, '2026-03-02T05:11:28.079107+00:00', FALSE),
  ('226c5063-77e1-4888-90f1-a1f23cfb7461', '004ac8b2-a37d-42c8-aba3-35b204f596f0', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 63, '2026-03-02T05:11:28.079115+00:00', FALSE),
  ('11584808-fc90-4f7f-bbb0-d9b444bf09b9', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', 'a50c967b-2e89-448d-be47-4df628c51572', 385, '2026-03-02T05:11:28.079124+00:00', FALSE),
  ('69ac1396-8377-4e44-9257-d14eafdd8c3d', 'b59d9b9a-a169-43c1-832d-7e7d4acfa19c', '4e9dfce6-555b-434a-81b6-237c61b9b530', 331, '2026-03-02T05:11:28.079133+00:00', FALSE),
  ('c0400153-b737-4c54-8ae3-c6958c481aa5', '4e9dfce6-555b-434a-81b6-237c61b9b530', 'f3687206-405e-43b6-afb0-8ca73eee5dd1', 254, '2026-03-02T05:11:28.079142+00:00', FALSE),
  ('80ca0f0e-6a9d-446a-adeb-16a4388120f4', '755c7aff-e538-4681-9b90-4b870a42ac72', '0b1e7a03-2922-4d53-8871-290520e6bb76', 183, '2026-03-02T05:11:28.079150+00:00', FALSE),
  ('289f79a4-5743-4577-9880-85648f4e4c17', '8db26b5c-2c09-4578-89bf-f9afaf765e36', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 344, '2026-03-02T05:11:28.079159+00:00', FALSE),
  ('fcea8d5f-c180-480d-83eb-45bd0801e1f3', 'a50c967b-2e89-448d-be47-4df628c51572', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 416, '2026-03-02T05:11:28.079167+00:00', FALSE),
  ('a142f26e-c281-44d7-b7f2-e023a2362f56', '8a034e84-26b3-4198-8ec9-3749b1f60537', 'a2eaefc9-dbff-4704-b908-74518d687e17', 168, '2026-03-02T05:11:28.079176+00:00', FALSE),
  ('ad62fcc0-2bb3-430c-9dda-dd309e346f59', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', 18, '2026-03-02T05:11:28.079185+00:00', FALSE),
  ('2ba99e26-8967-4cc0-b024-4545ea3220d9', '61dd4370-bff0-4d09-be31-19f19c4dad5d', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', 489, '2026-03-02T05:11:28.079194+00:00', FALSE),
  ('7c8c664b-5491-47f2-bd93-c5ad2a263e87', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 175, '2026-03-02T05:11:28.079202+00:00', FALSE),
  ('3e5b5fae-26c5-44ff-97c0-e1b0624e208d', '7019b91a-d908-4c93-8ed2-d1c60e518630', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 272, '2026-03-02T05:11:28.079211+00:00', FALSE),
  ('6995eaea-b5f3-4291-a1e4-68450d25b19b', 'd98fc7ff-dd92-4723-994c-6267ef951bcc', '88a425a0-b499-4825-8a16-3d33b85feec9', 186, '2026-03-02T05:11:28.079219+00:00', FALSE),
  ('9c50c700-e887-4336-b092-d5e37120d304', 'f37d558b-fd0a-404c-a193-bc3a8a2edfba', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', 15, '2026-03-02T05:11:28.079232+00:00', FALSE),
  ('9e27bc69-bb96-4392-8e2c-a911db3e9dcb', 'e37b6dcf-7ccb-47d0-8b9d-0da2fa30ad09', 'd9380e8d-8949-4849-af57-7a91a1a2b953', 81, '2026-03-02T05:11:28.079241+00:00', FALSE),
  ('ba31c88c-49ec-4934-bc99-f036aa1e3cb5', '0d9040df-34a3-4e54-b660-a85e3c60a6fe', 'f37d558b-fd0a-404c-a193-bc3a8a2edfba', 208, '2026-03-02T05:11:28.079259+00:00', FALSE),
  ('93e0c429-0788-492a-935a-4674a4cf1522', '4736fc20-1c22-49c2-af87-c35802302507', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 244, '2026-03-02T05:11:28.079268+00:00', FALSE),
  ('9f001cbb-a6fb-4192-a0ae-892219b99444', '4736fc20-1c22-49c2-af87-c35802302507', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 239, '2026-03-02T05:11:28.079277+00:00', FALSE),
  ('0ee4d029-3905-49ab-98cb-c7e5ffcd08bc', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'f37d558b-fd0a-404c-a193-bc3a8a2edfba', 204, '2026-03-02T05:11:28.079290+00:00', FALSE),
  ('e39956dd-af1f-4cc9-8831-cabbfbf5bec6', '61dd4370-bff0-4d09-be31-19f19c4dad5d', '398de7e0-8f4f-44ba-adfe-503a157cfe7c', 129, '2026-03-02T05:11:28.079310+00:00', FALSE),
  ('2404c2d3-4738-40f3-a169-9af84c909a79', '1e049026-1231-4763-bc50-82cb51950fa2', '87d880d4-c949-40e3-8d76-9307b45d57fe', 14, '2026-03-02T05:11:28.079319+00:00', FALSE),
  ('c9ba7281-5b78-4fe2-ad7c-105fafaad0b4', '8db26b5c-2c09-4578-89bf-f9afaf765e36', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 232, '2026-03-02T05:11:28.079327+00:00', FALSE),
  ('b848f820-a6d9-4f2b-b7e1-13ddfd887fe1', '61dd4370-bff0-4d09-be31-19f19c4dad5d', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', 426, '2026-03-02T05:11:28.079336+00:00', FALSE),
  ('db409655-050a-41e1-be6b-52c9d792deb2', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 448, '2026-03-02T05:11:28.079344+00:00', FALSE),
  ('79811268-69cf-4542-8258-ad795155964c', '73e9a7c4-09e6-46d8-a093-b241d7d1d5df', '4e9dfce6-555b-434a-81b6-237c61b9b530', 244, '2026-03-02T05:11:28.079353+00:00', FALSE),
  ('71b40f64-aef1-4a83-a021-3118c6404475', 'd0ad6342-88fd-443f-82ba-919fc1d652d0', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 223, '2026-03-02T05:11:28.079361+00:00', FALSE),
  ('06b9f40d-2988-446f-9eaf-7222198b7c52', '0b395a7b-0673-4348-afd0-7cea9252629f', '37a1e15c-a38c-4763-a2bd-042741bce012', 290, '2026-03-02T05:11:28.079374+00:00', FALSE),
  ('d3a2bd8f-5796-48bd-82bb-1c94f89b24a4', '0b1e7a03-2922-4d53-8871-290520e6bb76', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', 411, '2026-03-02T05:11:28.079385+00:00', FALSE),
  ('1b8d50ce-4083-4b0b-b12d-b94529d200f3', '0b395a7b-0673-4348-afd0-7cea9252629f', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 237, '2026-03-02T05:11:28.079393+00:00', FALSE),
  ('d6ed7dff-b106-42cf-99c7-4f15bf114b79', 'e82df4fb-0b6d-44dc-8609-70b41430af38', '215b3d04-402a-4ac2-83ed-1edb9a421691', 205, '2026-03-02T05:11:28.079402+00:00', FALSE),
  ('de837bd6-5b12-47a3-ac05-c8fa4ac02ca3', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', '73e9a7c4-09e6-46d8-a093-b241d7d1d5df', 251, '2026-03-02T05:11:28.079411+00:00', FALSE),
  ('56080f4e-a404-4340-b119-8f82a1f2d6d0', '3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', '755c7aff-e538-4681-9b90-4b870a42ac72', 334, '2026-03-02T05:11:28.079419+00:00', FALSE),
  ('db94e731-6ed8-42a4-a62d-2227814c95f7', '78d66ff4-0519-4157-9d95-76c2900ba7f9', '87d880d4-c949-40e3-8d76-9307b45d57fe', 477, '2026-03-02T05:11:28.079428+00:00', FALSE),
  ('cf051085-4625-44aa-bf03-e4529f1324d8', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', '34fa84c8-3356-4ed6-9ac5-967cd2baabac', 285, '2026-03-02T05:11:28.079441+00:00', FALSE),
  ('137f933b-40a1-441d-b547-d296bc977244', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', '822a8aae-57bd-460e-9643-69815990bec8', 34, '2026-03-02T05:11:28.079449+00:00', FALSE),
  ('164295cd-bb80-4c24-bbfa-29b582aa8e0f', '3f064471-24a0-47cd-8927-925cb3e5df7f', 'b59d9b9a-a169-43c1-832d-7e7d4acfa19c', 311, '2026-03-02T05:11:28.079458+00:00', FALSE),
  ('2b3a7e6b-7474-439e-b387-baa708683ca8', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', '755c7aff-e538-4681-9b90-4b870a42ac72', 432, '2026-03-02T05:11:28.079466+00:00', FALSE),
  ('fcecd45c-f950-4704-9405-8ff6cc34f3fc', 'ea3afac7-54f0-4f68-8ed5-a5b6bd386c59', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', 368, '2026-03-02T05:11:28.079474+00:00', FALSE),
  ('c2d81a86-0c03-4495-a1e8-702e1754f424', '2eb95b36-c9c3-4720-849b-fc240c9434da', '34fa84c8-3356-4ed6-9ac5-967cd2baabac', 353, '2026-03-02T05:11:28.079483+00:00', FALSE),
  ('462f5078-6df6-4f57-843e-47d0b51bc7ea', '8a034e84-26b3-4198-8ec9-3749b1f60537', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 173, '2026-03-02T05:11:28.079496+00:00', FALSE),
  ('059a2a27-e019-4f5f-8e24-8208898c723f', '4e9dfce6-555b-434a-81b6-237c61b9b530', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 411, '2026-03-02T05:11:28.079507+00:00', FALSE),
  ('8ab52f88-d38c-4c60-b9ca-c2d08a337a33', '64921a63-bea6-4a5c-9e49-7a817678c94f', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 457, '2026-03-02T05:11:28.079516+00:00', FALSE),
  ('117ff05e-21d2-48ab-a3c8-29e61658c822', 'c5337857-3b58-4b0c-8814-4585dcbf765f', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', 142, '2026-03-02T05:11:28.079525+00:00', FALSE),
  ('34e5ea80-59b4-4cb0-a8c1-552e2ba6ecc5', 'eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', '3910b199-caf7-4822-8346-1ba9bd750c8e', 142, '2026-03-02T05:11:28.079533+00:00', FALSE),
  ('db1cfbb1-8555-492e-b6c9-45f8040c469b', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 'ae82282e-d380-4500-99e0-2dc4e276c0cf', 478, '2026-03-02T05:11:28.079542+00:00', FALSE),
  ('370f50b3-e558-447e-bfbe-fe4eca7e9628', '9ce13d41-dede-4658-a7e4-7bc00372d65c', '3910b199-caf7-4822-8346-1ba9bd750c8e', 72, '2026-03-02T05:11:28.079550+00:00', FALSE),
  ('d08c71a3-bfde-4f95-895a-dc6fa810250f', 'b59d9b9a-a169-43c1-832d-7e7d4acfa19c', '822a8aae-57bd-460e-9643-69815990bec8', 330, '2026-03-02T05:11:28.079558+00:00', FALSE),
  ('81d6bb50-9127-4e2d-acd5-ecaaa797fcb1', '1a972a71-a530-407a-b3f7-1dd9b2532cec', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 149, '2026-03-02T05:11:28.079567+00:00', FALSE),
  ('6ac1ba71-9852-4f0c-97b2-0bb166057ef0', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', '2eb95b36-c9c3-4720-849b-fc240c9434da', 479, '2026-03-02T05:11:28.079575+00:00', FALSE),
  ('9125a495-66f2-435b-8eab-8a2557f55820', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 220, '2026-03-02T05:11:28.079670+00:00', FALSE),
  ('e11b19c9-6bf7-45e2-9831-bb42050b7e8e', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', '4e9dfce6-555b-434a-81b6-237c61b9b530', 380, '2026-03-02T05:11:28.079687+00:00', FALSE),
  ('09b6649c-99a3-48c3-864b-9cbd3d57980a', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 'ed20f879-2d42-4ba7-8df7-d696c4b6aafd', 317, '2026-03-02T05:11:28.079696+00:00', FALSE),
  ('68940de9-65d3-4afb-b080-0354b5c6b1a5', '153f4022-a4ce-404a-8544-25d004fd34ad', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 284, '2026-03-02T05:11:28.079710+00:00', FALSE),
  ('050b1905-c72a-446d-81f7-087cddb24434', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 'e17ae312-37c6-4a66-9172-2d20d8528033', 156, '2026-03-02T05:11:28.079870+00:00', FALSE),
  ('7d1bbcaf-69eb-4acc-855d-3174d659a430', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', '755c7aff-e538-4681-9b90-4b870a42ac72', 210, '2026-03-02T05:11:28.079923+00:00', FALSE),
  ('07fb83e9-5818-4991-aeba-54f65239954e', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', 291, '2026-03-02T05:11:28.079938+00:00', FALSE),
  ('a8a3e69b-392d-4d59-a016-183152eda94a', '64aeeb22-42db-46bf-85bd-b21b135c9803', '8a034e84-26b3-4198-8ec9-3749b1f60537', 261, '2026-03-02T05:11:28.079948+00:00', FALSE),
  ('dcdbd81b-9c64-42cb-9960-4f10b13675ac', '398de7e0-8f4f-44ba-adfe-503a157cfe7c', 'a50c967b-2e89-448d-be47-4df628c51572', 104, '2026-03-02T05:11:28.079958+00:00', FALSE),
  ('df5490e1-cb3f-4109-be18-2aa10a52d848', '491943d2-8aa3-4484-9d6d-afcab7ec579a', '7019b91a-d908-4c93-8ed2-d1c60e518630', 302, '2026-03-02T05:11:28.079967+00:00', FALSE),
  ('801607a9-a4f7-424d-b80f-915094a6f389', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', '55a1207d-a029-48da-a79d-c1f3f6824a37', 129, '2026-03-02T05:11:28.079979+00:00', FALSE),
  ('80851b7f-a1b5-4eb5-a54e-2c3c55e9dd2a', 'a50c967b-2e89-448d-be47-4df628c51572', '710128e0-4e1d-479c-acbc-497bbc5bc802', 450, '2026-03-02T05:11:28.079999+00:00', FALSE),
  ('b1b728aa-177f-4b2f-a5ff-0267898ff6b1', '145cc805-810a-4320-864d-ba6b5c6fbc33', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 490, '2026-03-02T05:11:28.080011+00:00', FALSE),
  ('bc2e3265-7349-4ef4-a47d-9cd004d8baa4', 'a50c967b-2e89-448d-be47-4df628c51572', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 82, '2026-03-02T05:11:28.080021+00:00', FALSE),
  ('1b51395e-1dc0-4201-9596-34f3dbac4a14', 'eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', '1e049026-1231-4763-bc50-82cb51950fa2', 175, '2026-03-02T05:11:28.080032+00:00', FALSE),
  ('cb319fb3-2707-4712-a042-b58a51d5407a', 'a2eaefc9-dbff-4704-b908-74518d687e17', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', 20, '2026-03-02T05:11:28.080041+00:00', FALSE),
  ('5339f7f9-fd7e-4dc5-861b-98121e3fd696', '2eb95b36-c9c3-4720-849b-fc240c9434da', 'd9380e8d-8949-4849-af57-7a91a1a2b953', 339, '2026-03-02T05:11:28.080050+00:00', FALSE),
  ('ae4424b0-27d2-43d3-89d7-a1d8c49f5ee0', '37a1e15c-a38c-4763-a2bd-042741bce012', 'a50c967b-2e89-448d-be47-4df628c51572', 342, '2026-03-02T05:11:28.080059+00:00', FALSE),
  ('92c39e1d-45a3-41c9-9583-cfcaca15c4a3', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 'a50c967b-2e89-448d-be47-4df628c51572', 484, '2026-03-02T05:11:28.080067+00:00', FALSE),
  ('a7cf23d8-b178-4a65-ba03-3ece7b259d51', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', '4736fc20-1c22-49c2-af87-c35802302507', 400, '2026-03-02T05:11:28.080076+00:00', FALSE),
  ('1a1981a8-b63a-4a73-9b8a-ff517286745d', 'ed20f879-2d42-4ba7-8df7-d696c4b6aafd', '8a034e84-26b3-4198-8ec9-3749b1f60537', 72, '2026-03-02T05:11:28.080087+00:00', FALSE),
  ('473dbb0e-652c-43b3-b571-f88c1af1e8c5', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 146, '2026-03-02T05:11:28.080095+00:00', FALSE),
  ('26ebb626-b5a4-4a23-b411-9428219bc8ae', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', '2eb95b36-c9c3-4720-849b-fc240c9434da', 261, '2026-03-02T05:11:28.080104+00:00', FALSE);

-- Table: AccountSignals
-- This is pushed by BigQuery through a continuous query if it is configured
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('50b64a6a-2e8f-4a0b-9742-c7e180949e82', '4e9dfce6-555b-434a-81b6-237c61b9b530', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078156+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('d2659e80-bce0-46b0-9570-6bb8b3c99d34', '686337b0-304e-4270-89c3-d015f9039294', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078198+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('10504018-b7a4-47a4-89b2-950fa492bbd4', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078244+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('ccbba78a-0f45-49b9-a58b-21777de250cf', '215b3d04-402a-4ac2-83ed-1edb9a421691', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078293+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('affa841d-0f9a-4b0f-ad6d-eb3e180263fe', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078337+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('1fbdd097-b431-4a21-9a5c-a1f53db6d754', '822a8aae-57bd-460e-9643-69815990bec8', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078383+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('0fc87891-dd4b-494b-8c47-f6ccc2c592c7', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078420+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('cc117869-7a6b-4e66-89bf-e3148ac8c6ea', '3910b199-caf7-4822-8346-1ba9bd750c8e', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078456+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('c85a78c6-3cc8-4262-8fd2-2fb9661a1b96', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078499+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('ccdb20f8-cd05-42ae-b942-cb41396ec27d', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078537+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('721511f1-ebc4-45dc-adb5-9dafc5426bc3', '37a1e15c-a38c-4763-a2bd-042741bce012', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078579+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('4d8b0f0d-211a-4537-8c79-c2fd815812f3', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078627+00:00');

실행하는 데 몇 분 정도 걸릴 수 있습니다. 완료된 후 데이터를 미리 볼 수 있습니다.

Spanner 스튜디오의 데이터 미리보기

4. 워치독 (BigQuery 연속 쿼리 및 Spanner 동기화)

첫 번째 방어선은 BigQuery로 스트리밍되는 원격 분석 데이터입니다. 의심스러운 이동 (예: 불가능한 거리)을 모니터링하고 실시간으로 Spanner에 알림을 푸시하려고 합니다.

실제 시나리오에서는 BigQuery 연속 쿼리 및 역방향 ETL을 사용하여 이 데이터를 스트리밍합니다. 하지만 ENTERPRISE 버전 이상의 예약이 필요합니다.

예약이 가능한 경우 명령어는 다음과 같습니다. 예약을 설정하지 않은 경우 콘솔에 복사하지 않아도 됩니다.

EXPORT DATA
  OPTIONS (
    uri = 'https://spanner.googleapis.com/projects/<YOUR_PROJECT_ID>/instances/game-instance/databases/game-db',
    format='CLOUD_SPANNER',
    spanner_options="""{ "table": "AccountSignals" }"""
  ) AS
SELECT
  GENERATE_UUID() as SignalId,
  PlayerId,
  'SUSPICIOUS_MOVEMENT' as AlertType,
  CURRENT_TIMESTAMP() as EventTime
FROM `game_analytics.GameplayTelemetry`
WHERE
  EventType = 'player_move'
  AND (LocationX > 1000 OR LocationY > 1000);

연속 쿼리를 만들려면 BigQuery 콘솔 SQL 작업공간에서 더보기 > 연속 쿼리 만들기를 클릭합니다.

이 쿼리는 역방향 ETL 엔진 역할을 하여 트랜잭션 시스템 (Spanner)이 분석 시스템 (BigQuery)에서 감지된 이상치를 즉시 인식하도록 합니다.

이 실습에서는 Spanner에 일부 트랜잭션을 인위적으로 삽입했습니다.

5. 멀티모달 탐정 (Spanner Graph 및 벡터 검색)

이제 Spanner에 '위험도 높음' 신호가 있으므로 사기 조직을 조사할 수 있습니다. Spanner Graph를 사용하여 금융 웹을 시각화하고 주모자를 찾습니다.

Spanner Studio에서 이러한 쿼리를 실행합니다.

그래프: 리더 찾기

이 쿼리는 피해자가 도둑에게 송금하고 도둑이 보스 노드로 송금하는 거래의 금융 웹을 추적합니다. 보스별로 그룹화하고 전리품을 합산합니다.

Spanner 스튜디오에 복사하고 실행을 클릭합니다.

GRAPH PlayerNetwork
MATCH (victim)-[:Transfers]->(thief)-[t:Transfers]->(boss)
RETURN
  boss.Name AS RingLeader, COUNT(t) AS TributesReceived,
  SUM(t.Amount) AS TotalLoot
GROUP BY RingLeader
ORDER BY TotalLoot DESC
LIMIT 5;

'Pixel'이 가장 많은 찬사를 받은 사용자로 표시됩니다.

다중 신호 조사

그래프 결과를 앞에서 BigQuery에서 푸시한 실시간 행동 신호와 조인해 보겠습니다. 'Pixel'에 돈을 보내고 의심스러운 움직임으로 표시된 플레이어를 찾고 싶습니다.

SELECT DISTINCT
  p.Name,
  s.AlertType as BQ_Signal,
  s.EventTime as SignalTime
FROM GRAPH_TABLE (
  PlayerNetwork
  MATCH (associate:Players)-[:Transfers]->(boss:Players)
  WHERE boss.Name = 'Pixel'
  RETURN DISTINCT associate.Name
) as g
JOIN Players p
  ON p.Name = g.Name
JOIN AccountSignals s
  ON p.PlayerId = s.PlayerId
ORDER BY s.EventTime DESC;

벡터 검색: 봇 계정 식별

실제 플레이어인가요, 아니면 조직적인 봇 그룹인가요? 벡터 검색을 사용하여 프로필 설명이 'Pixel'과 의심스러울 정도로 유사한 계정을 식별합니다.

SELECT
  Name, AvatarDescription,
  COSINE_DISTANCE(AvatarEmbedding, (SELECT AvatarEmbedding FROM Players WHERE Name = 'Pixel')) as Similarity
FROM Players
WHERE Name != 'Pixel'
ORDER BY Similarity ASC
LIMIT 5;

유사성 점수가 낮을수록 'Pixel'의 벡터에 더 가깝습니다. 설명이 비슷한 경우 봇일 가능성이 높습니다.

MATCH 절에서 스칼라 함수를 적용할 수도 있습니다.

GRAPH PlayerNetwork
MATCH (associate:Players)-[:Transfers]->(boss:Players)
WHERE boss.Name = 'Pixel'
ORDER BY (
  COSINE_DISTANCE(associate.AvatarEmbedding, (SELECT AvatarEmbedding FROM Players WHERE Name = 'Pixel'))
) ASC
RETURN DISTINCT associate.Name

6. 줄거리 파악하기 (BigQuery 속성 그래프 및 GCS 통합)

주범은 잡았지만 이 대규모 '참치 강탈'을 어떻게 조직했는지 알아야 합니다. BigQuery 속성 그래프를 사용하여 BigQuery에서 커뮤니케이션 패턴을 추적하여 게임 채팅 로그를 쿼리합니다.

BigQuery Studio에서 다음 쿼리를 실행합니다.

BigQuery 속성 그래프

'Pixel'과 다른 플레이어 간의 통신 추적:

GRAPH game_analytics.CatChatNetwork
MATCH (p1:Players)-[c:Communicates]->(p2:Players)
WHERE p1.Name = 'Pixel' OR p2.Name = 'Pixel'
RETURN
  p1.Name AS Sender,
  p2.Name AS Receiver,
  c.Message,
  -- Resolving structured metadata from ObjectRef
  p1.ProfilePictureUrl.uri AS SenderProfilePic
ORDER BY Message DESC;

'Operation Fishbowl is a go' 및 'Diverting funds to the central tuna reserve'와 같은 메시지가 표시됩니다. BigQuery 속성 그래프를 사용하면 비정형 데이터 (ProfilePictureUrl.uri를 사용하는 GCS 이미지 참조)로 보강된 커뮤니케이션을 분석할 수 있습니다.

결과에서 GCS 링크를 클릭하면 플레이어 이미지가 표시됩니다.

Pixel 프로필 사진

이 분석 쿼리는 사기 조직 구성원 간의 채팅 패턴과 사진을 추가로 비교합니다.

이 코드를 실행하기 전에 Cloud Storage 버킷에 저장된 프로필 사진의 임베딩을 생성하는 멀티모달 모델을 선언합니다. 이 모델은 초기 설정에서 생성된 연결을 통해 연결되므로 해당 연결에 연결된 기술 사용자에게 Vertex AI 사용자 권한도 부여합니다.

'PROJECT_ID'를 프로젝트 ID로 바꿉니다.

GRANT `roles/aiplatform.user`
ON PROJECT `<<PROJECT_ID>>`
TO "connection:<<PROJECT_ID>>.us.unicorn-connection";

이제 연결을 만들 수 있습니다.

CREATE OR REPLACE MODEL `game_analytics.multimodal_model`
  REMOTE WITH CONNECTION `us.unicorn-connection`
  OPTIONS (ENDPOINT = 'multimodalembedding@001');

권한 오류로 인해 실패하는 경우('bqcx-12345745345345@gcp-sa-bigquery-condel.iam.gserviceaccount.com에 엔드포인트에 액세스하거나 엔드포인트를 사용할 권한이 없습니다' 등) 권한이 전파될 때까지 몇 분 정도 기다렸다가 다시 시도하세요.

아래 쿼리는 AI.GENERATE_EMBEDDING 함수를 사용하여 스토리지 버킷의 사진을 살펴보고 임베딩을 만듭니다. 그런 다음 이러한 임베딩을 COSINE_DISTANCE를 사용하여 비교하여 채팅 로그와 프로필 사진이 얼마나 유사한지 파악합니다.

-- BigQuery Property Graph: Tracing communication patterns in chat logs
-- AND calculating distance between auto-embedded chat message and profile picture
-- BigQuery Property Graph: Tracing communication patterns
-- AND identifying similarity AMONG the fraudsters themselves
WITH GraphResults AS (
  SELECT *
  FROM GRAPH_TABLE(
  game_analytics.CatChatNetwork
    MATCH (p1:Players)-[c:Communicates]->(p2:Players)
    WHERE p1.Name = 'Pixel' OR p2.Name = 'Pixel'
    RETURN
      p1.Name AS Sender,
      c.Message,
      p1.ProfilePictureUrl.uri AS SenderProfilePic,
      c.MessageEmbedding.result AS MessageEmbedding
  )
),
UniquePics AS (
  SELECT DISTINCT SenderProfilePic AS uri FROM GraphResults
),
PicEmbeddings AS (
  SELECT embedding, uri
  FROM AI.GENERATE_EMBEDDING(
    MODEL game_analytics.multimodal_model,
    (
      SELECT OBJ.MAKE_REF(uri, 'us.unicorn-connection') as content, uri
      FROM UniquePics
    )
  )
),
CatData AS (
  -- Distinct list of players (excluding Pixel) with their embeddings and HTTPS Pic URLs
  SELECT DISTINCT
    g.Sender,
    g.MessageEmbedding,
    g.Message,
    p.embedding AS PicEmbedding,
    REPLACE( g.SenderProfilePic, 'gs://sample-data-and-media/spanner-bq-fraud-heist/profile_pics/', 'https://storage.mtls.cloud.google.com/sample-data-and-media/spanner-bq-fraud-heist/profile_pics/') AS SenderProfilePic
  FROM GraphResults g
  LEFT JOIN PicEmbeddings p ON g.SenderProfilePic = p.uri
  WHERE g.Sender != 'Pixel'
    AND g.MessageEmbedding IS NOT NULL
    AND p.embedding IS NOT NULL
)
SELECT
  c1.Sender AS Fraudster_A,
  c2.Sender AS Fraudster_B,
  c1.SenderProfilePic AS Pic_A,
  c2.SenderProfilePic AS Pic_B,
  c1.Message,
  -- Compare chat messages between Fraudster A and B
  COSINE_DISTANCE(c1.MessageEmbedding, c2.MessageEmbedding) AS MessageDistance,
  -- Compare profile pictures between Fraudster A and B
  COSINE_DISTANCE(c1.PicEmbedding, c2.PicEmbedding) AS PictureDistance
FROM CatData c1
CROSS JOIN CatData c2
WHERE c1.Sender < c2.Sender -- Avoid self-comparison and duplicate pairs (A-B and B-A)
  AND c1.SenderProfilePic <> c2.SenderProfilePic
ORDER BY PictureDistance ASC, MessageDistance ASC
LIMIT 10;

프로필 사진을 열면 클랜 구성원이 자신을 표현하는 방식이 유사하다는 것을 알 수 있습니다.

사기 조직 시각화

노트북과 Python 셀 매직을 사용하여 사기 조직을 시각화할 수 있습니다. 이렇게 하면 그래프 결과를 쉽게 시각화할 수 있습니다. 자세한 내용은 시각화 관련 문서를 참고하세요.

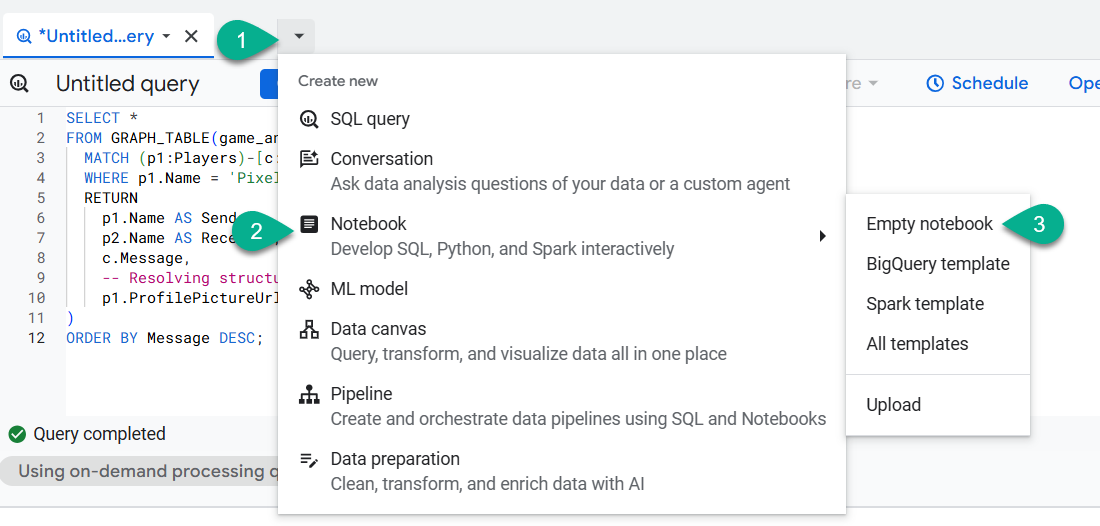

BigQuery Studio에서 더보기 > 노트북 > 빈 노트북을 클릭합니다.

노트북 만들기

다음 코드를 코드 셀에 붙여넣습니다.

!pip install bigquery-magics==0.12.1

+ 코드 버튼을 사용하여 새 셀을 만들고 다음을 붙여넣습니다.

%%bigquery --graph
GRAPH game_analytics.CatChatNetwork
MATCH p=(p1:Players)-[c:Communicates]-(p2:Players)
WHERE p1.Name = 'Pixel' OR p2.Name = 'Pixel'
RETURN TO_JSON(p) AS full_path

모두 실행을 클릭합니다. 약 1분 후에 통신 네트워크의 그래프 시각화가 표시됩니다.

그래프 시각화

7. 삭제

이 Codelab에서 사용한 리소스 비용이 Google Cloud 계정에 청구되지 않도록 하려면 생성한 리소스를 삭제하세요.

Spanner 인스턴스 삭제

gcloud spanner instances delete game-instance

BigQuery 데이터 세트 삭제

bq rm -r -f -d game_analytics

또는 프로젝트 삭제

이 실습을 위해 새 프로젝트를 만든 경우 전체 프로젝트를 삭제할 수 있습니다.

gcloud projects delete <YOUR_PROJECT_ID>

8. 축하합니다.

축하합니다. Spanner와 BigQuery를 사용하여 실시간 사기 방어 쉴드를 성공적으로 빌드했습니다.

지금까지 배운 내용은 다음과 같습니다.

BigQuery 연속 쿼리를 사용하여 실시간 통계를 Spanner로 푸시합니다.
Spanner Graph를 사용하여 금융 관계를 추적합니다.
비정형 데이터에 대한 유사성 쿼리에는 Spanner 벡터 검색을 사용합니다.
BigQuery 그래프를 사용하여 커뮤니케이션 네트워크를 추적합니다.

다음 단계

Spanner Graph 문서 살펴보기
Spanner 그래프 GitHub 저장소에서 더 많은 코드 예시를 확인하세요.
BigQuery 그래프에 대해 자세히 알아보세요.
BigQuery 연속 쿼리를 확인하세요.

Spanner 및 BigQuery: 실시간 사기 방어 쉴드 컬렉션을 사용해 정리하기 내 환경설정을 기준으로 콘텐츠를 저장하고 분류하세요.

1. 소개

실습할 내용

필요한 항목

2. 시작하기 전 / 설정

Google Cloud 프로젝트 만들기 또는 선택

Cloud Shell 시작

필요한 API 사용 설정

저장소 클론

3. 인프라 프로비저닝

BigQuery 데이터 세트 및 연결 설정

Spanner 설정

BigQuery로 데이터 가져오기

Spanner로 데이터 가져오기

4. 워치독 (BigQuery 연속 쿼리 및 Spanner 동기화)

5. 멀티모달 탐정 (Spanner Graph 및 벡터 검색)

그래프: 리더 찾기

다중 신호 조사

벡터 검색: 봇 계정 식별

6. 줄거리 파악하기 (BigQuery 속성 그래프 및 GCS 통합)

BigQuery 속성 그래프

사기 조직 시각화

7. 삭제

Spanner 인스턴스 삭제

BigQuery 데이터 세트 삭제

또는 프로젝트 삭제

8. 축하합니다.

다음 단계

Spanner 및 BigQuery: 실시간 사기 방어 쉴드
