Getting Started with Agent2Agent (A2A) Protocol: A Purchasing Concierge and Remote Seller Agent Interactions with Gemini on Cloud Run and Agent Engine

1. Introduction

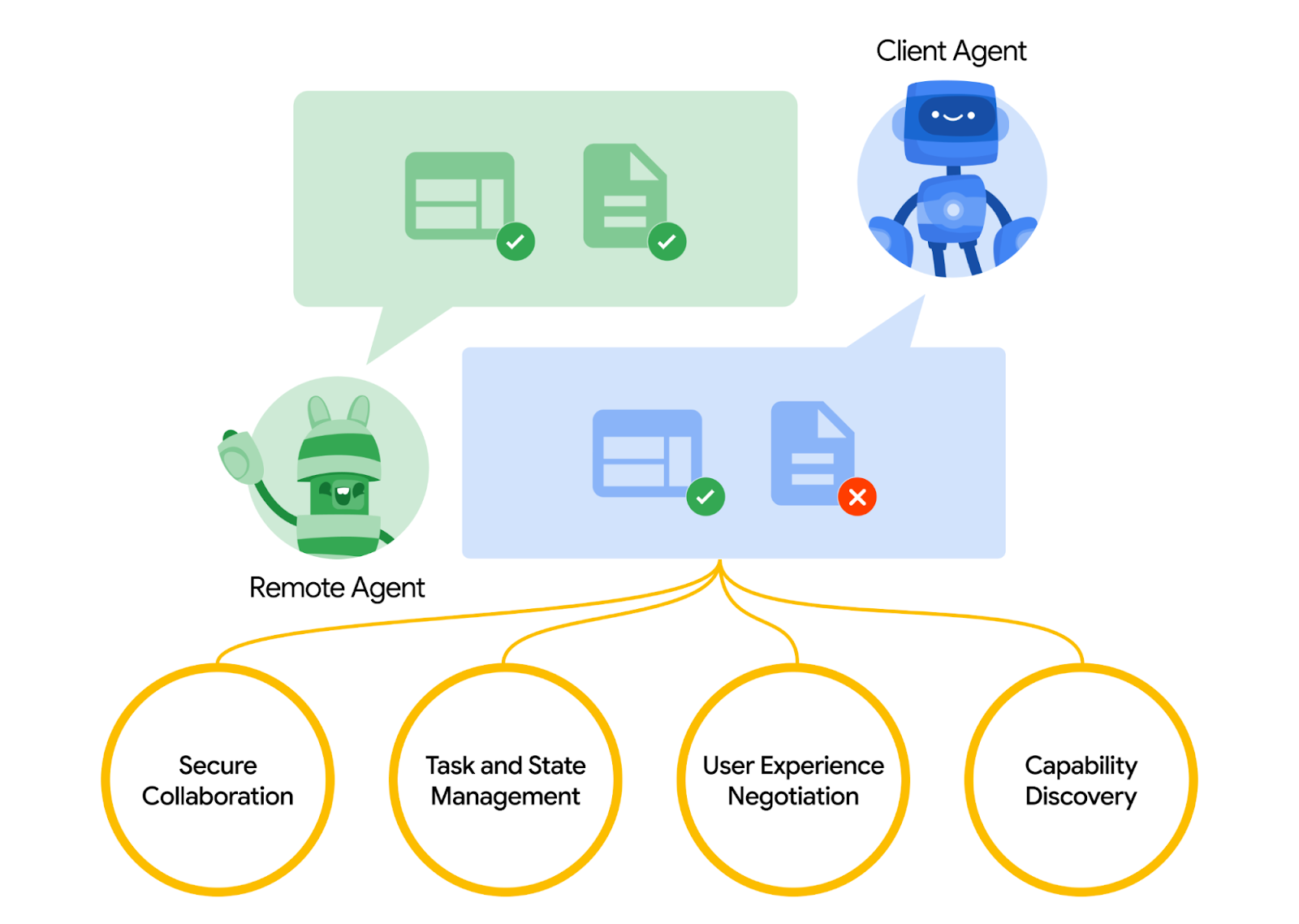

Agent2Agent (A2A) protocol is designed to standardize communication between AI agents, particularly for those which are deployed in external systems. Previously, such protocols were established for Tools called Model Context Protocol (MCP) which is an emerging standard to connect LLMs with data and resources. A2A tries to complement MCP where A2A is focused on a different problem, while MCP focuses on lowering complexity to connect agents with tools and data, A2A focuses on how to enable agents to collaborate in their natural modalities. It allows agents to communicate as agents (or as users) instead of as tools; for example, enable back-and-forth communication when you want to order something.

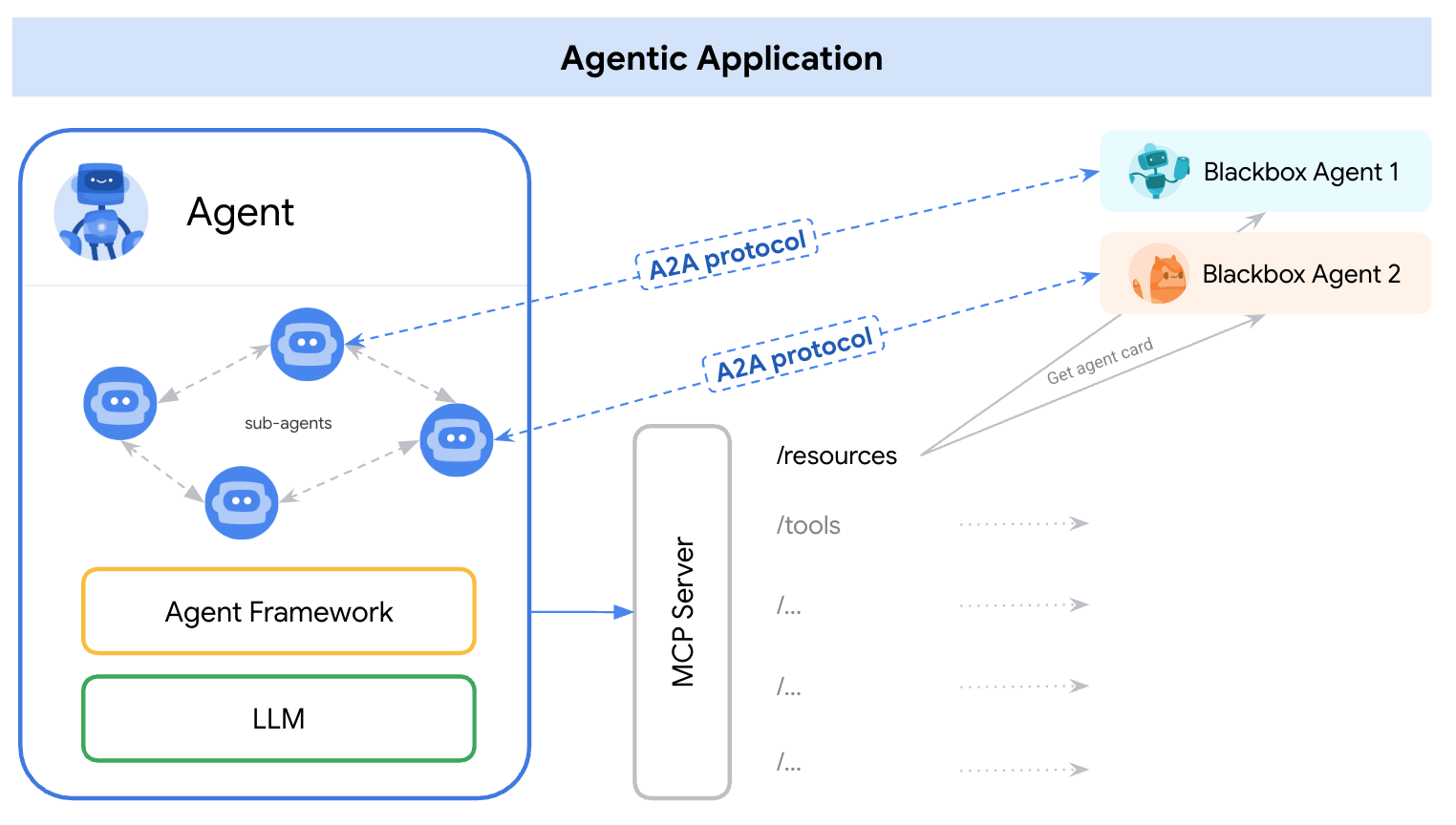

A2A is positioned to complement MCP, in the official documentation it is recommended that applications use MCP for tools and A2A for agents - represented by AgentCard ( We will discuss this later on ). The frameworks can then use A2A to communicate with their user, the remote agents, and other agents.

In this demo, we will start with implementation of A2A using its python SDK. We will explore a use case when we have a personal purchasing concierge which can help us to communicate with burger and pizza seller agents to handle our order.

A2A utilizes client-server principle. Here is the typical A2A flow that we will expect in this demo

A2A Client will first doing discovery on all accessible A2A Server agent card and utilize its information to build a connection client

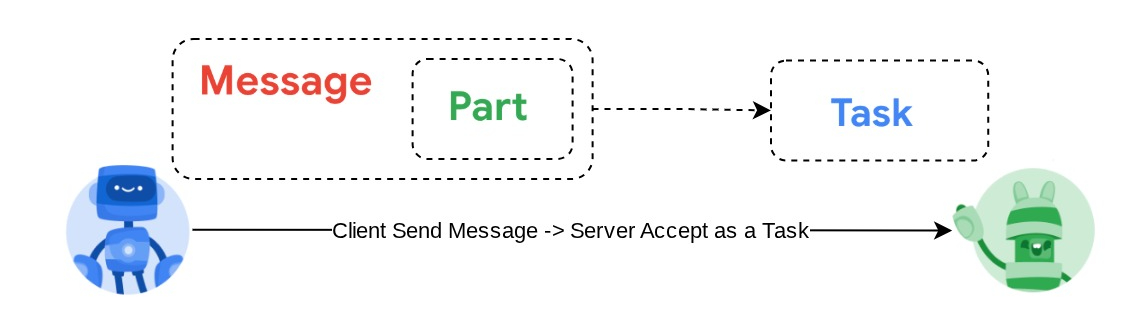

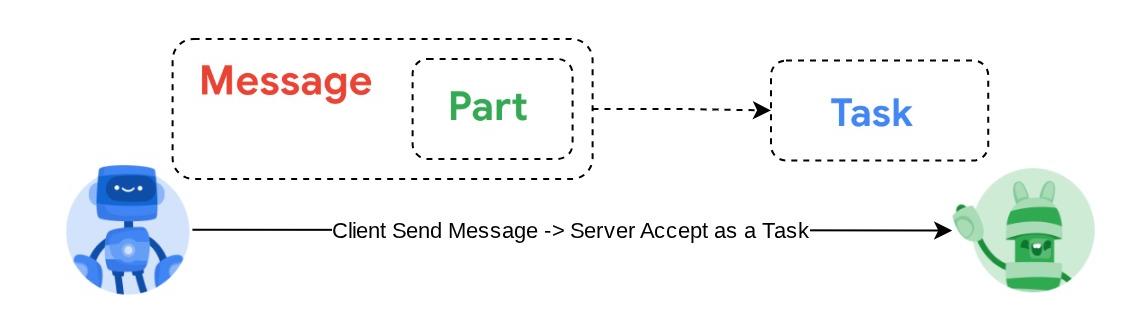

When required, A2A Client will send a message to the A2A Server, the server will evaluate this as a Task to be completed. If push notification receiver URL is configured on the A2A client and supported by A2A Server, the server will also capable to publish the state of the task progression to the receiving endpoint on the client

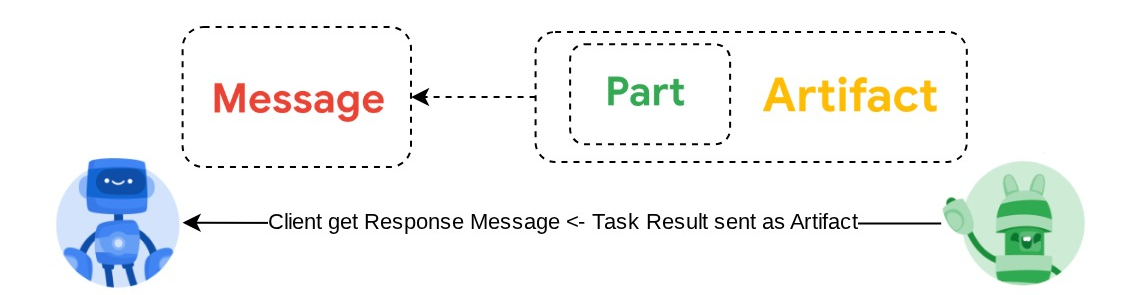

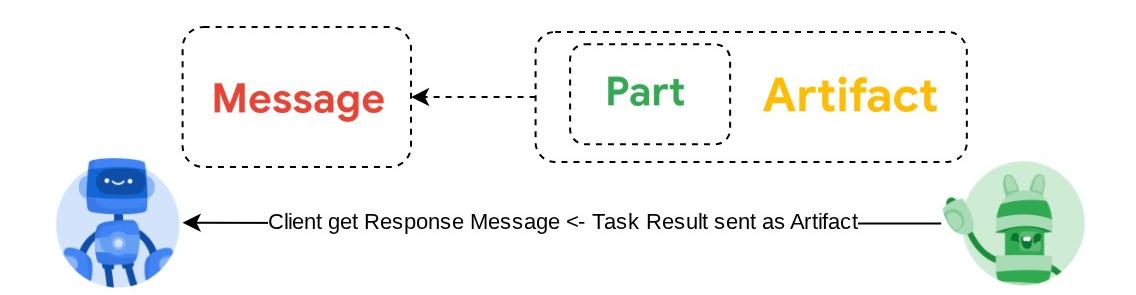

After task finished, the A2A server will send the response artifact to the A2A Client

Through the codelab, you will employ a step by step approach as follows:

Prepare your Google Cloud project and Enable all the required API on it
Setup workspace for your coding environment
Prepare env variables for burger and pizza agent services and try locally
Deploy burger and pizza agent to Cloud Run
Inspect the details on how A2A server established
Prepare env variables for purchasing concierge and try locally
Deploy purchasing concierge to Agent Engine

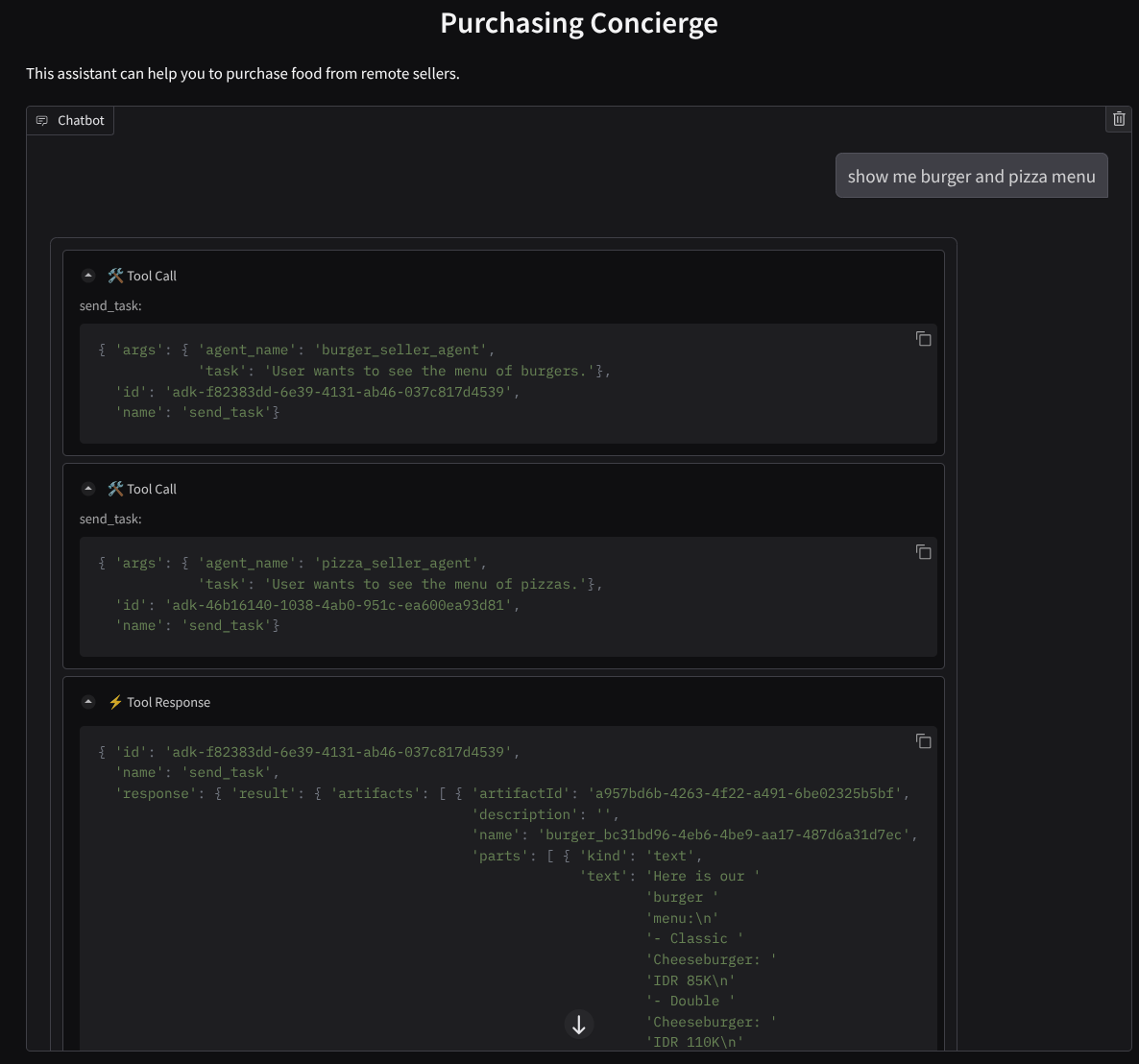

Connect to the agent engine via local interface
Inspect the details on how A2A client established and its data modelling
Inspect the payload and interaction between A2A client and server

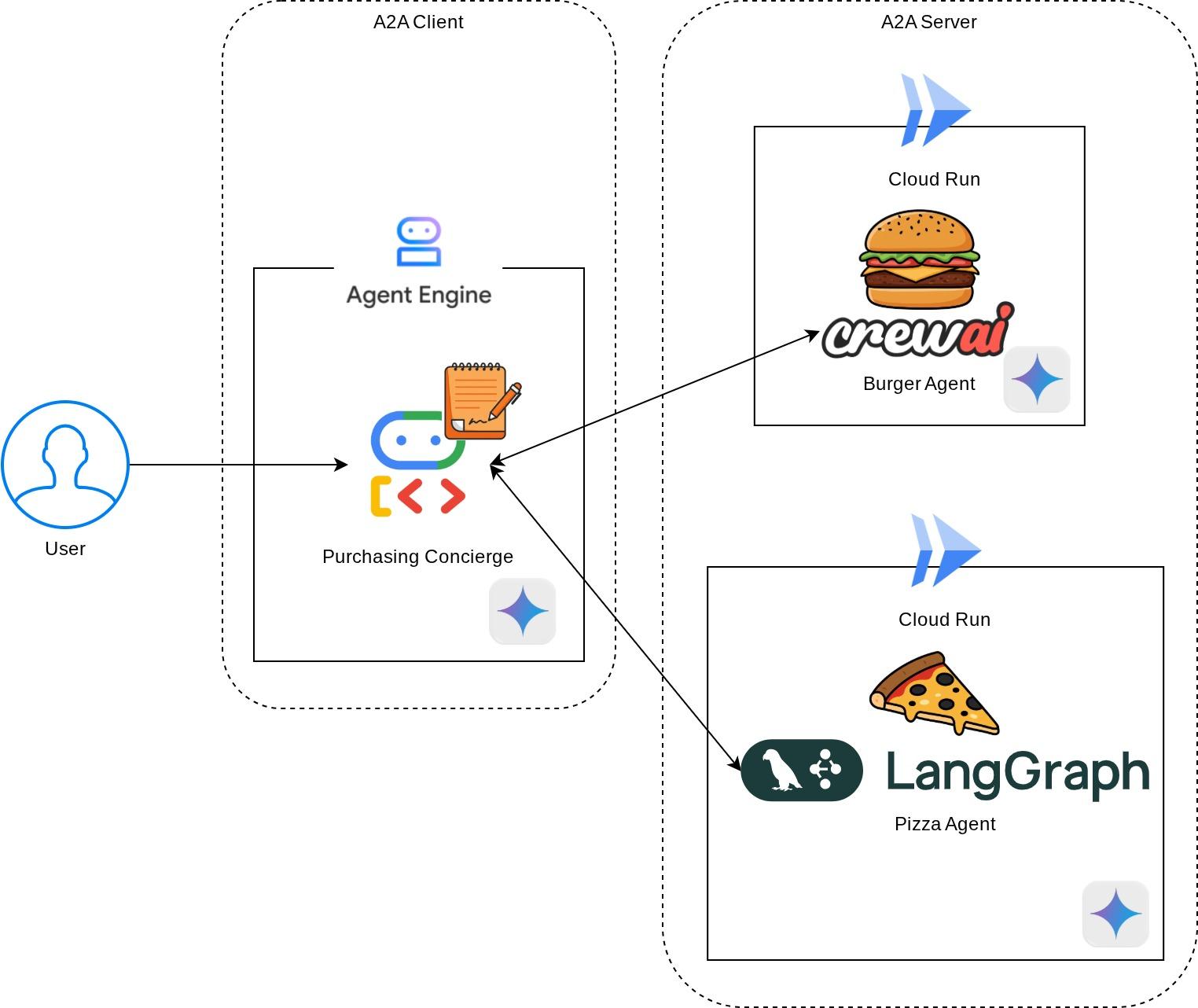

Architecture Overview

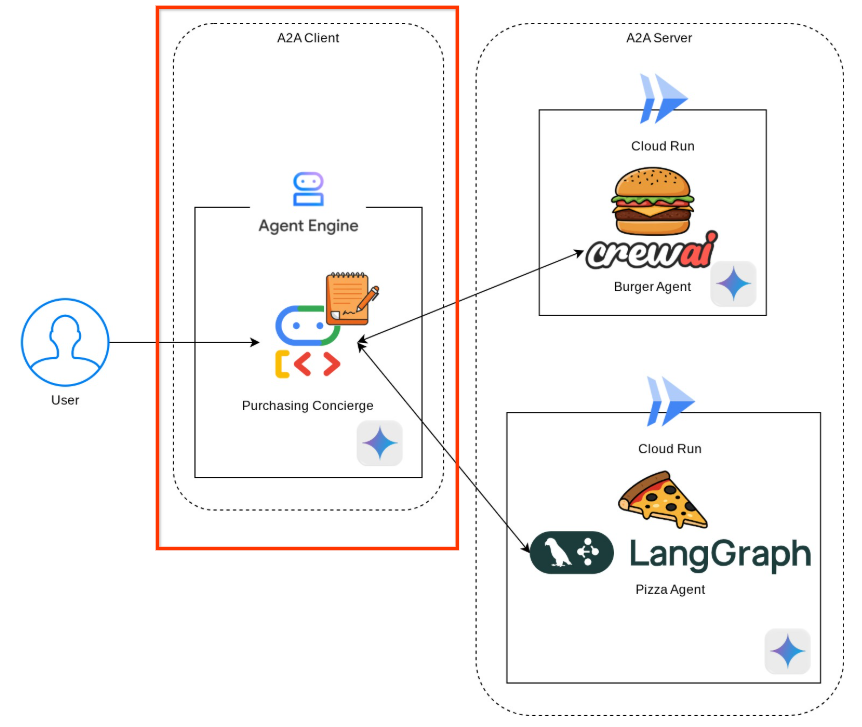

We will deploy the following service architecture

We will deploy 2 services which will act as A2A server, the Burger agent ( backed by CrewAI agent framework ) and Pizza agent ( backed by Langgraph agent framework ). The user will only directly interact with the Purchasing concierge which will be run using Agent Development Kit (ADK) framework which will act as A2A client.

Each of these agents will have their own environment and deployment on their own.

Prerequisites

Comfortable working with Python
An understanding of basic full-stack architecture using HTTP service

What you'll learn

Core structure of A2A Server
Core structure of A2A Client
Deploying agent service to Cloud Run
Deploying agent service to Agent Engine
How A2A Client connect to A2A Server
Request and Response structure on non-streaming connection

What you'll need

Chrome web browser
A Gmail account
A Cloud Project with billing enabled

This codelab, designed for developers of all levels (including beginners), uses Python in its sample application. However, Python knowledge isn't required for understanding the concepts presented.

2. Before you begin

Select Active Project in the Cloud Console

This codelab assumes that you already have a Google Cloud project with billing enabled. If you do not have it yet, you can follow the instructions below to get started.

In the Google Cloud Console, on the project selector page, select or create a Google Cloud project.

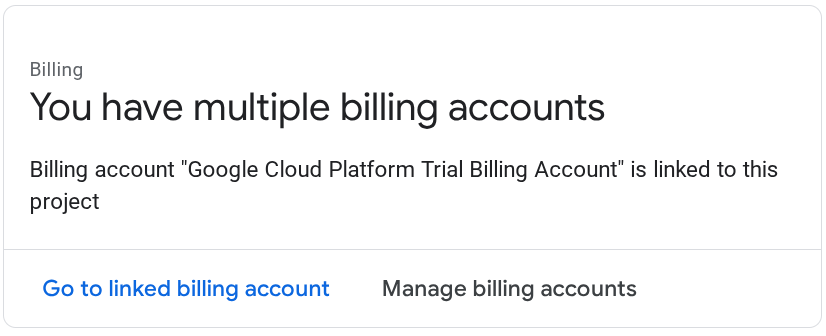

Make sure that billing is enabled for your Cloud project. Learn how to check if billing is enabled on a project.

Setup Cloud Project in Cloud Shell Terminal

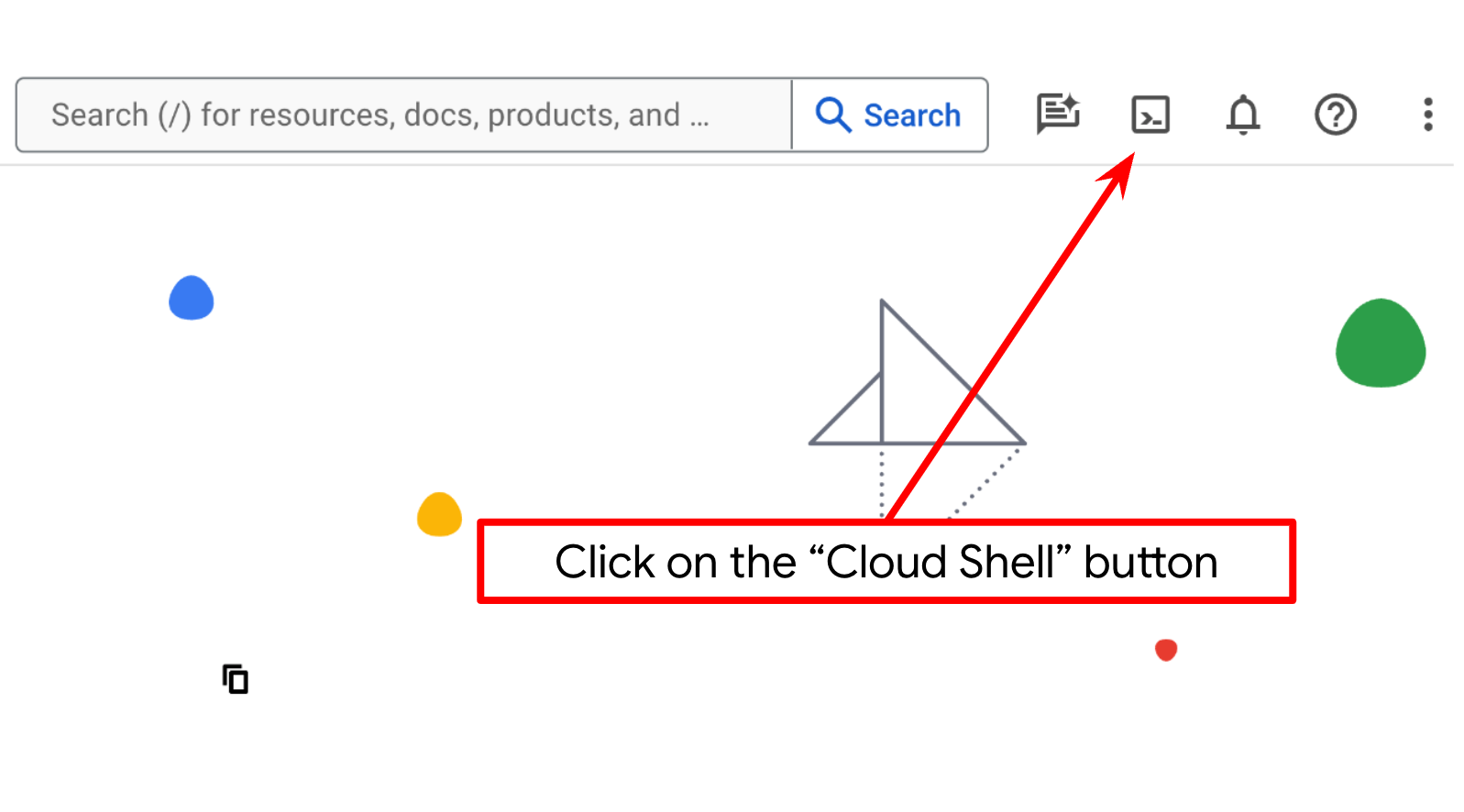

You'll use Cloud Shell, a command-line environment running in Google Cloud that comes preloaded with bq. Click Activate Cloud Shell at the top of the Google Cloud console. If it prompts you to authorize, click Authorize

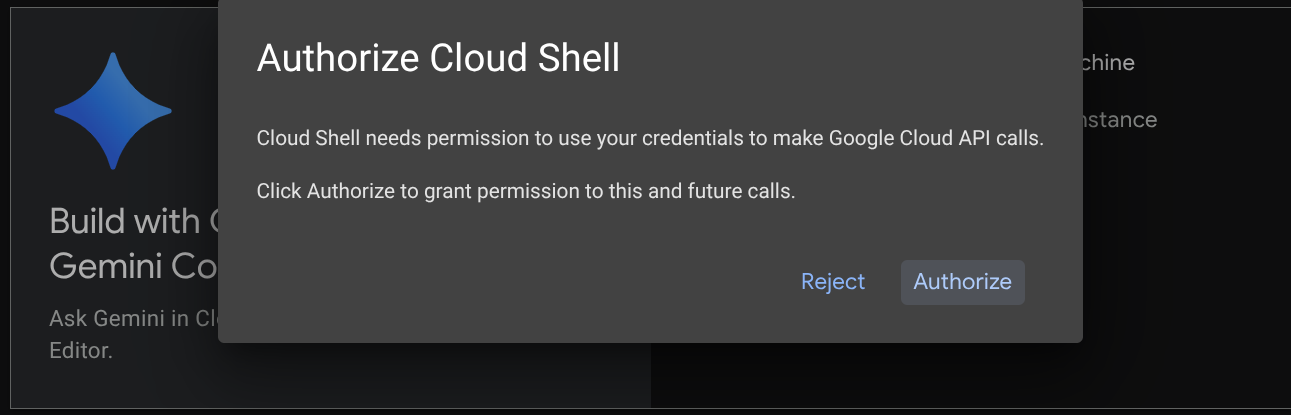

Once connected to Cloud Shell, you check that you're already authenticated and that the project is set to your project ID using the following command:

gcloud auth list

Run the following command in Cloud Shell to confirm that the gcloud command knows about your project.

gcloud config list project

If your project is not set, use the following command to set it:

gcloud config set project <YOUR_PROJECT_ID>

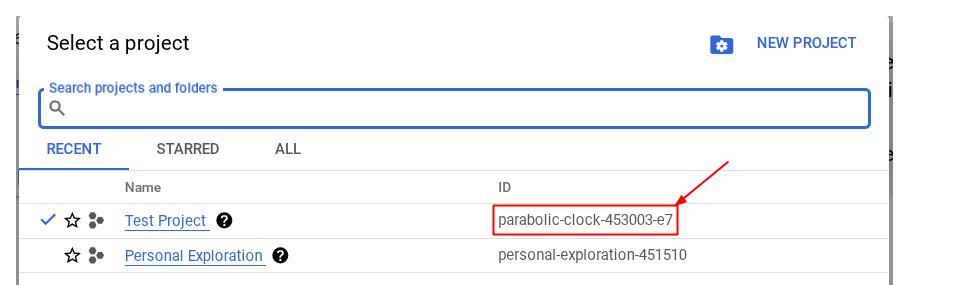

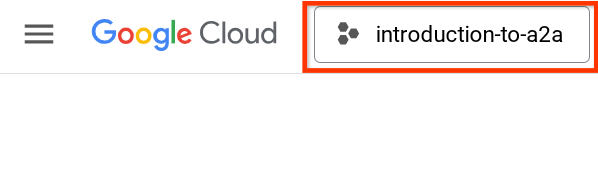

Alternatively, you also can see the PROJECT_ID id in the console

Click it and you will all of your project and the project ID on the right side

Enable the required APIs via the command shown below. This could take a few minutes, so please be patient.

gcloud services enable aiplatform.googleapis.com \
                       run.googleapis.com \
                       cloudbuild.googleapis.com \
                       cloudresourcemanager.googleapis.com

On successful execution of the command, you should see a message similar to the one shown below:

Operation "operations/..." finished successfully.

The alternative to the gcloud command is through the console by searching for each product or using this link.

If any API is missed, you can always enable it during the course of the implementation.

Refer documentation for gcloud commands and usage.

Go to Cloud Shell Editor and Setup Application Working Directory

Now, we can set up our code editor to do some coding stuff. We will use the Cloud Shell Editor for this

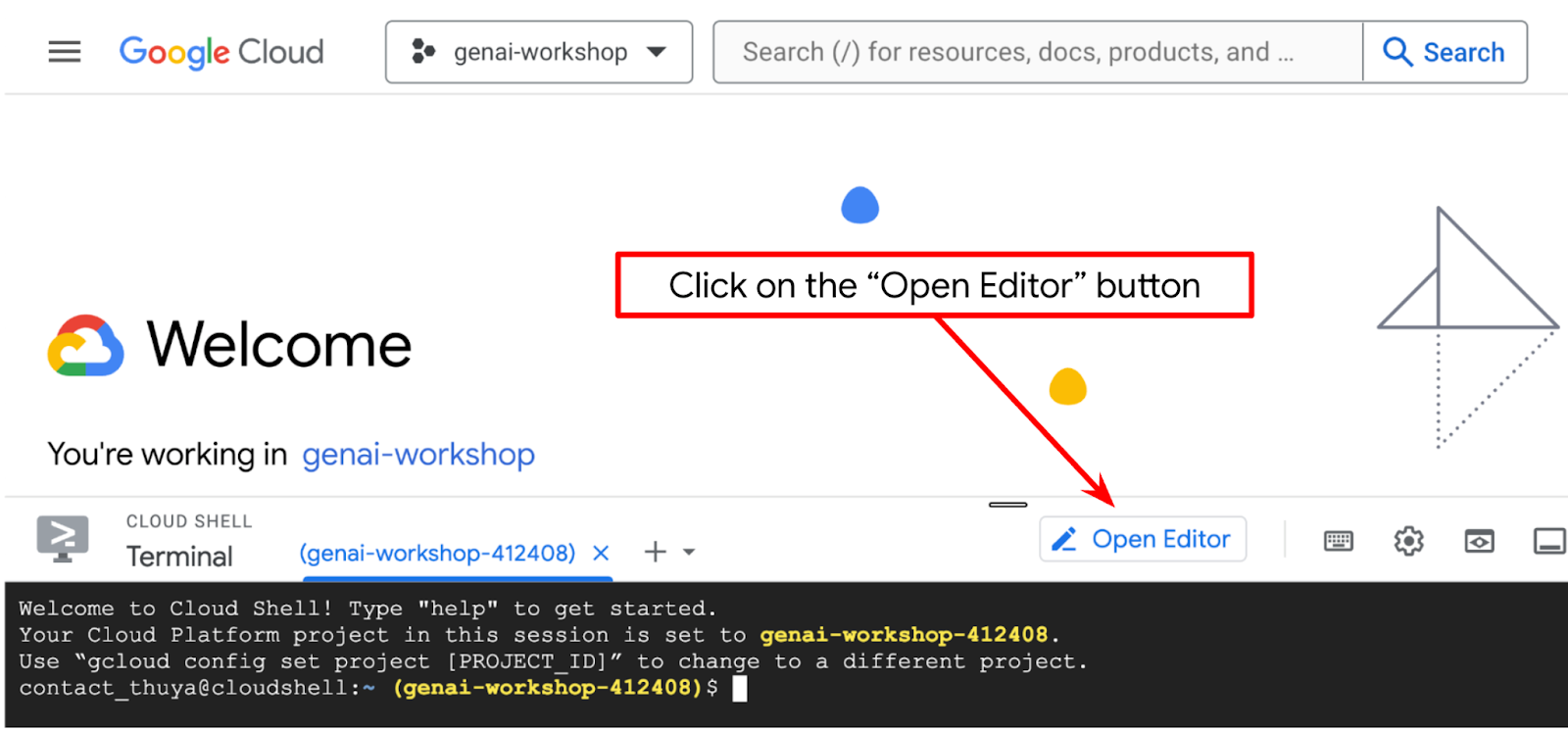

Click on the Open Editor button, this will open a Cloud Shell Editor, we can write our code here

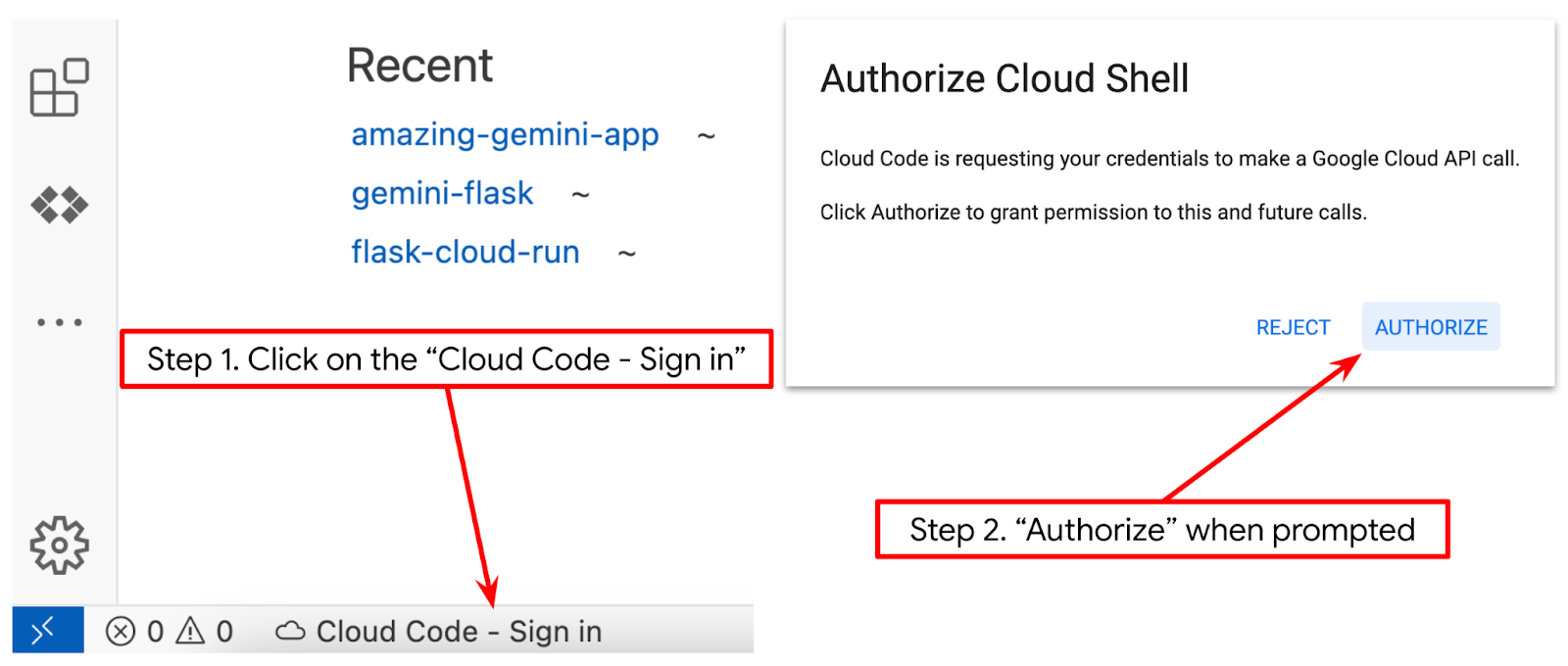

Make sure the Cloud Code project is set in the bottom left corner (status bar) of the Cloud Shell editor, as highlighted in the image below and is set to the active Google Cloud project where you have billing enabled. Authorize if prompted. If you already follow previous command, the button may also point directly to your activated project instead of sign in button

Next, let's clone the template working directory for this codelab from Github, run the following command. It will create the working directory in the purchasing-concierge-a2a directory

git clone https://github.com/alphinside/purchasing-concierge-intro-a2a-codelab-starter.git purchasing-concierge-a2a

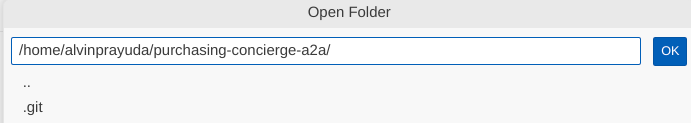

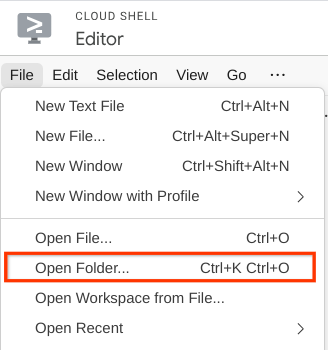

After that, go to the top section of the Cloud Shell Editor and click File->Open Folder, find your username directory and find the purchasing-concierge-a2a directory then click the OK button. This will make the chosen directory as the main working directory. In this example, the username is alvinprayuda, hence the directory path is shown below

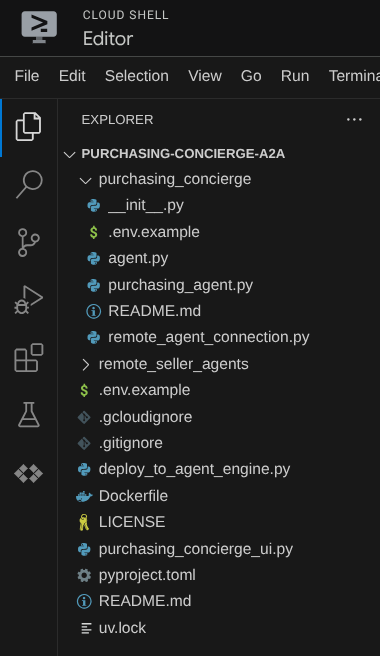

Now, your Cloud Shell Editor should look like this

Environment Setup

The next step is to prepare the development environment. Your current active terminal should be inside the purchasing-concierge-a2a working directory. We will utilize Python 3.12 in this codelab and we will use uv python project manager to simplify the need of creating and managing python version and virtual environment

If you haven't opened the terminal yet, open it by clicking on Terminal -> New Terminal , or use Ctrl + Shift + C , it will open a terminal window on the bottom part of the browser

Now let's initialize the virtual environment of the purchasing concierge using uv (already preinstalled on cloud terminal ). Run this command

uv sync --frozen

This will create the .venv directory and install the dependencies. Quick sneak peek on the pyproject.toml will give you information about the dependencies shown like this

dependencies = [
    "a2a-sdk>=0.2.16",
    "google-adk>=1.8.0",
    "gradio>=5.38.2",
]

To test the virtual env, create new file main.py and copy the following code

def main():
   print("Hello from purchasing-concierge-a2a!")

if __name__ == "__main__":
   main()

Then, run the following command

uv run main.py

You will get output like shown below

Using CPython 3.12
Creating virtual environment at: .venv
Hello from purchasing-concierge-a2a!

This shows that the python project is being set up properly.

Now we can move to the next step, configuring and deploying our remote seller agent

3. Deploying Remote Seller Agent - A2A Server to Cloud Run

In this step, we will deploy these two remote seller agents marked by the red box. The burger agent will be powered by CrewAI agent framework and the pizza agent will be powered by Langgraph agent, both of them are powered by Gemini Flash 2.0 model

Deploying the Remote Burger Agent

The burger agent source code is under the remote_seller_agents/burger_agent directory. The agent initialization can be inspected on the agent.py script. Here is the code snippet of the initialized agent

from crewai import Agent, Crew, LLM, Task, Process
from crewai.tools import tool

...

       model = LLM(
            model="vertex_ai/gemini-2.5-flash-lite",  # Use base model name without provider prefix
        )
        burger_agent = Agent(
            role="Burger Seller Agent",
            goal=(
                "Help user to understand what is available on burger menu and price also handle order creation."
            ),
            backstory=("You are an expert and helpful burger seller agent."),
            verbose=False,
            allow_delegation=False,
            tools=[create_burger_order],
            llm=model,
        )

        agent_task = Task(
            description=self.TaskInstruction,
            agent=burger_agent,
            expected_output="Response to the user in friendly and helpful manner",
        )

        crew = Crew(
            tasks=[agent_task],
            agents=[burger_agent],
            verbose=False,
            process=Process.sequential,
        )

        inputs = {"user_prompt": query, "session_id": sessionId}
        response = crew.kickoff(inputs)
        return response

...

All files that exist under remote_seller_agents/burger_agent directory are already sufficient to deploy our agent to Cloud Run so that it can be accessible as a service. We will discuss this later on. Run the following command to deploy it

gcloud run deploy burger-agent \
    --source remote_seller_agents/burger_agent \
    --port=8080 \
    --allow-unauthenticated \
    --min 1 \
    --region us-central1 \
    --update-env-vars GOOGLE_CLOUD_LOCATION=us-central1 \
    --update-env-vars GOOGLE_CLOUD_PROJECT={your-project-id}

If you are prompted that a container repository will be created for deploying from source, answer Y. This only occurred if you never deployed to a cloud run from source before. After successful deployment it will show a log like this.

Service [burger-agent] revision [burger-agent-xxxxx-xxx] has been deployed and is serving 100 percent of traffic.
Service URL: https://burger-agent-xxxxxxxxx.us-central1.run.app

The xxxx part here will be a unique identifier when we deploy the service. Now, let's try to go the https://burger-agent-xxxxxxxxx.us-central1.run.app/.well-known/agent.json route of those deployed burger agent services via browser. This is the URL to access the deployed A2A server agent card.

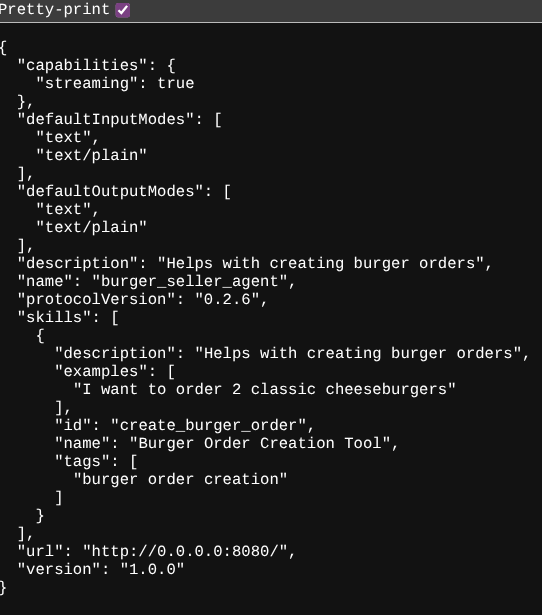

If successfully deployed, you will see the response like shown below in your browser when accessing https://burger-agent-xxxxxxxxx.us-central1.run.app/.well-known/agent.json :

This is the burger agent card information that should be accessible for discovery purposes. We will discuss this later on. Notice that the url value is still set at http://0.0.0.0:8080/ here. This url value should be the main information for A2A Client to send messages from the outside world and it is not configured properly. For this demo, we will need to update this value to the URL of our burger agent service by adding an additional environment variable HOST_OVERRIDE.

Updating the Burger Agent URL Value on Agent Card via Environment Variable

To add HOST_OVERRIDE to burger agent service, do the following steps

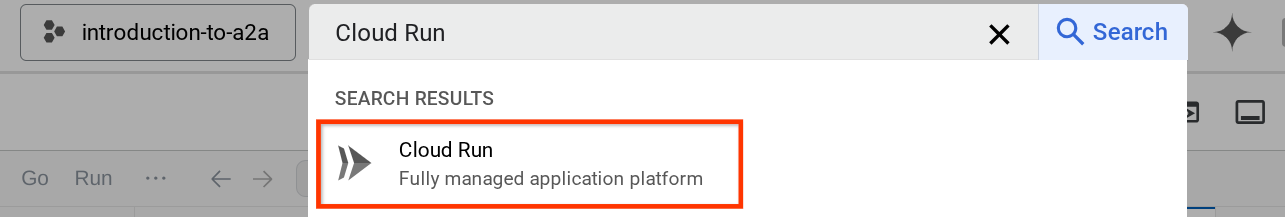

Search Cloud Run on search bar on top of your cloud console

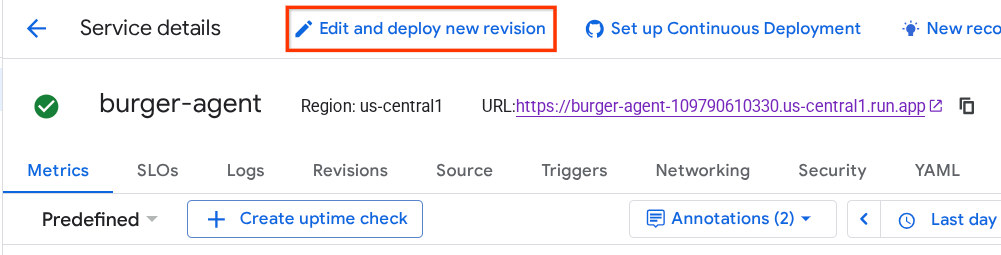

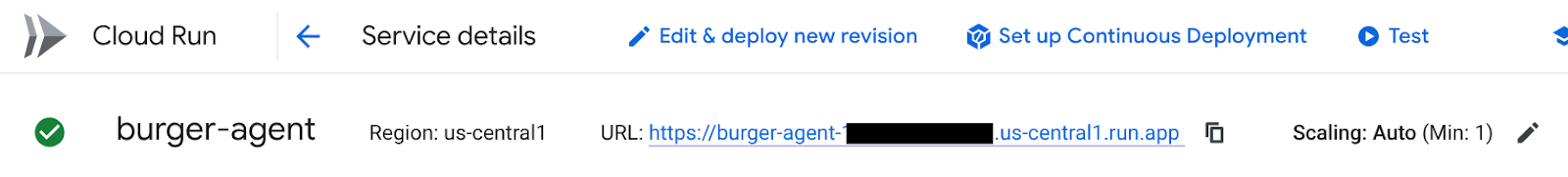

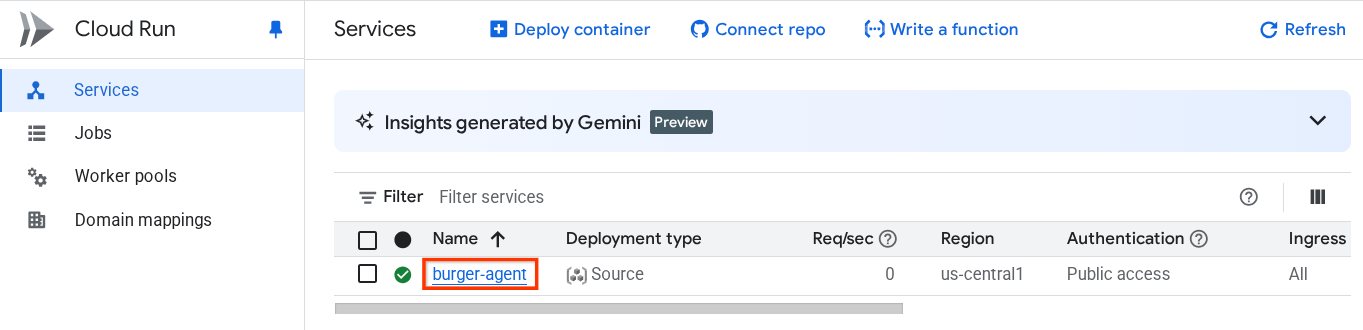

Click on previously deployed burger-agent cloud run service

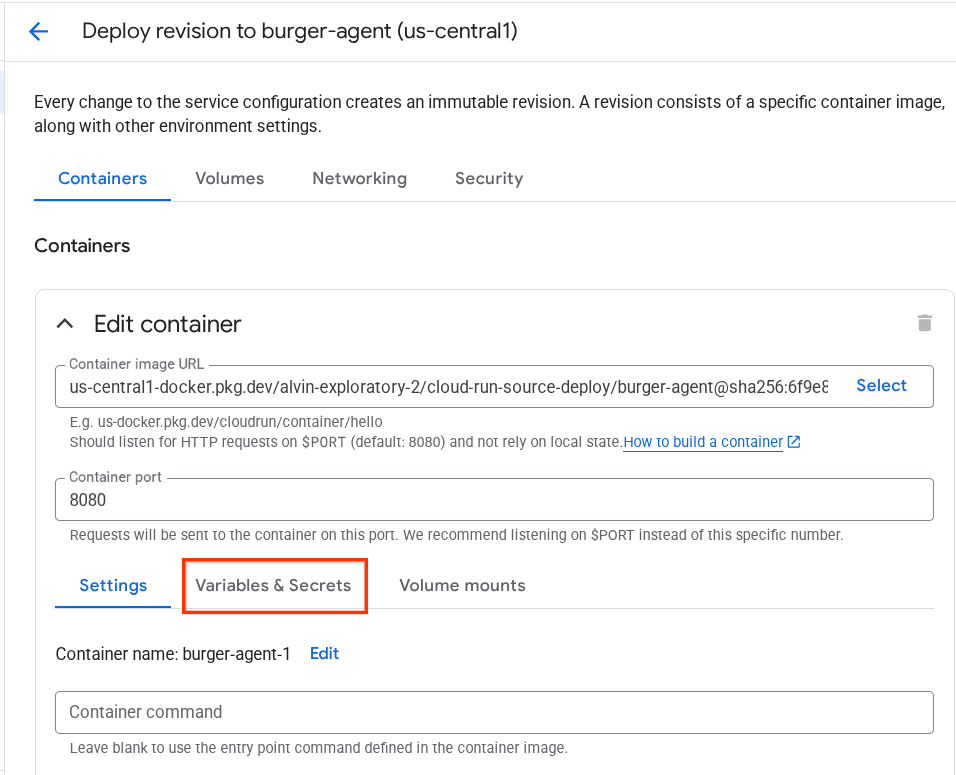

Copy the burger-service URL, then click on the Edit and deploy new revision

Then, click on Variable & Secrets section

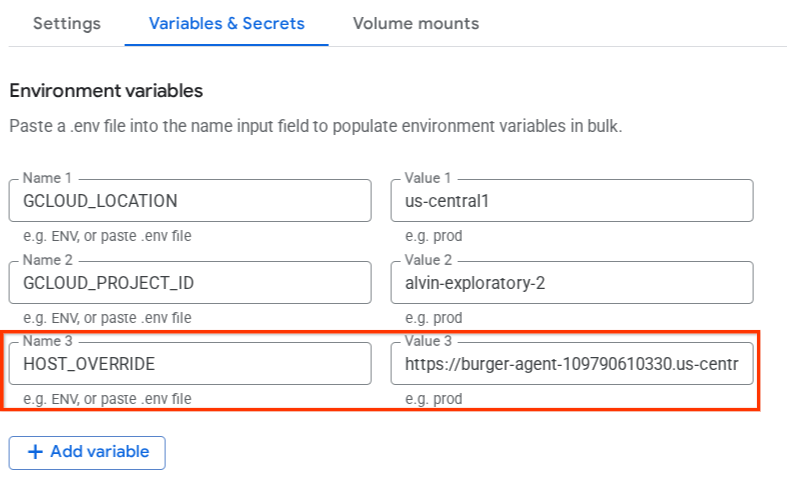

After that, click Add variable and set the HOST_OVERRIDE the value to the service URL ( the one with https://burger-agent-xxxxxxxxx.us-central1.run.app pattern )

Finally, click the deploy button to redeploy your service

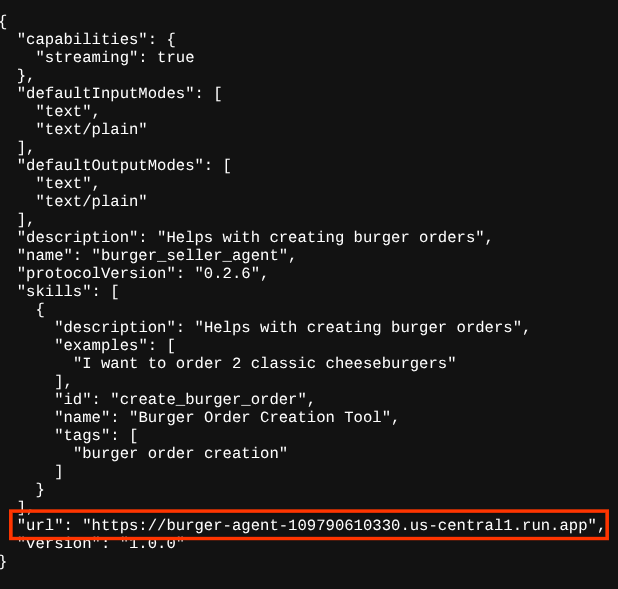

Now, when you access the burger-agent agent card again in the browser https://burger-agent-xxxxxxxxx.us-central1.run.app/.well-known/agent.json , the url value will already be properly configured

Deploying the Remote Pizza Agent

Similarly, pizza agent source code is under the remote_seller_agents/pizza_agent directory. The agent initialization can be inspected on the agent.py script. Here is the code snippet of the initialized agent

from langchain_google_vertexai import ChatVertexAI
from langgraph.prebuilt import create_react_agent

...

self.model = ChatVertexAI(
    model="gemini-2.5-flash-lite",
    location=os.getenv("GOOGLE_CLOUD_LOCATION"),
    project=os.getenv("GOOGLE_CLOUD_PROJECT"),
)
self.tools = [create_pizza_order]
self.graph = create_react_agent(
    self.model,
    tools=self.tools,
    checkpointer=memory,
    prompt=self.SYSTEM_INSTRUCTION,
)

...

Similar to the previous burger-agent deployment step, All files that exist under remote_seller_agents/pizza_agent directory are already sufficient to deploy our agent to Cloud Run so that it can be accessible as a service. Run the following command to deploy it

gcloud run deploy pizza-agent \
    --source remote_seller_agents/pizza_agent \
    --port=8080 \
    --allow-unauthenticated \
    --min 1 \
    --region us-central1 \
    --update-env-vars GOOGLE_CLOUD_LOCATION=us-central1 \
    --update-env-vars GOOGLE_CLOUD_PROJECT={your-project-id}

After successful deployment it will show a log like this.

Service [pizza-agent] revision [pizza-agent-xxxxx-xxx] has been deployed and is serving 100 percent of traffic.
Service URL: https://pizza-agent-xxxxxxxxx.us-central1.run.app

The xxxx part here will be a unique identifier when we deploy the service. It's the same case with the burger agent, when you try to go to the https://pizza-agent-xxxxxxxxx.us-central1.run.app/.well-known/agent.json route of those deployed pizza agent services via browser to access the A2A server agent card, the pizza agent url value on its agent card is not properly configured yet. We also need to add HOST_OVERRIDE to its environment variable

Updating the Pizza Agent URL Value on Agent Card via Environment Variable

To add HOST_OVERRIDE to pizza agent service, do the following steps

Search Cloud Run on search bar on top of your cloud console

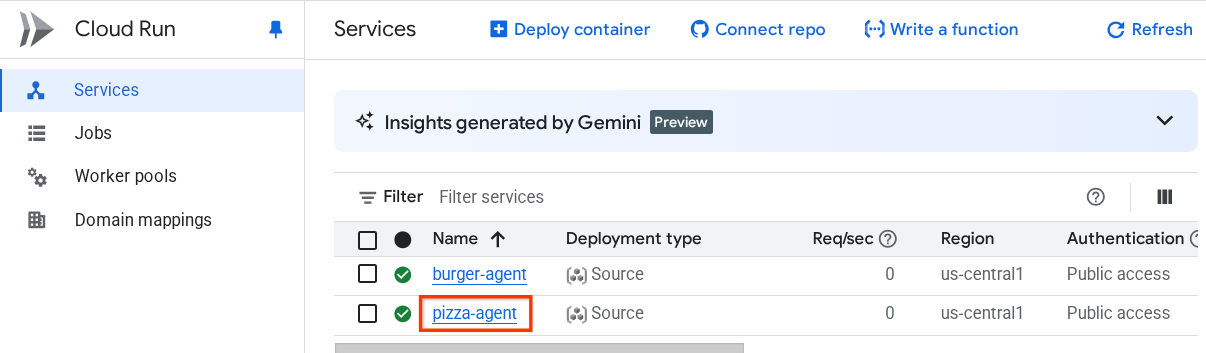

Click on previously deployed pizza-agent cloud run service

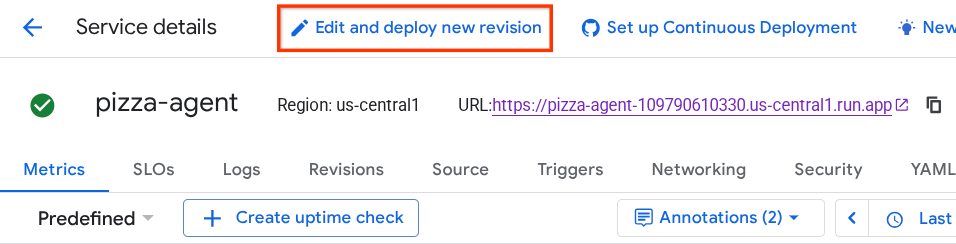

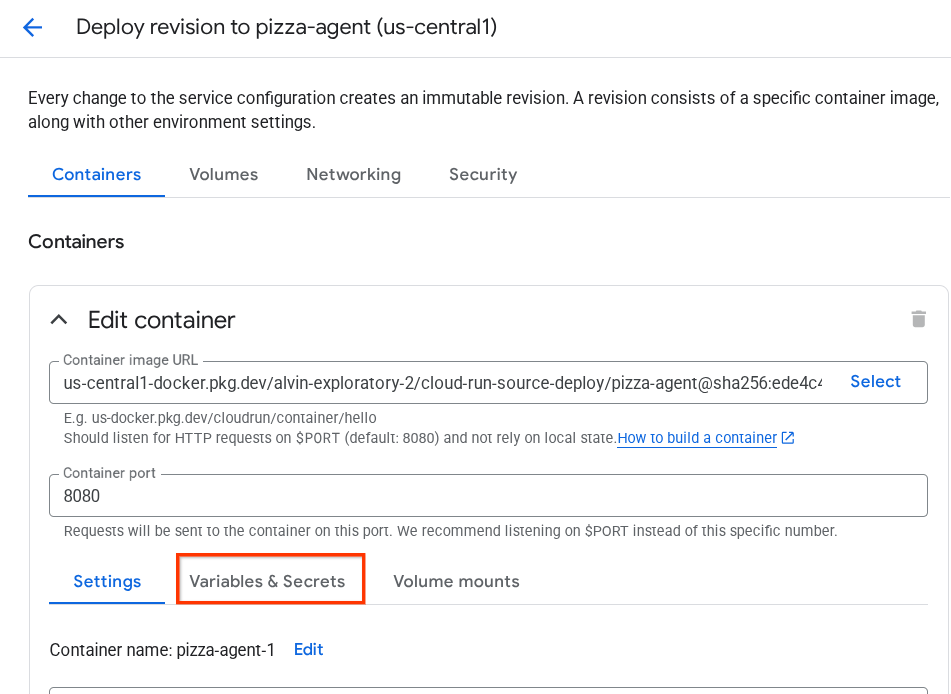

Click on the Edit and deploy new revision

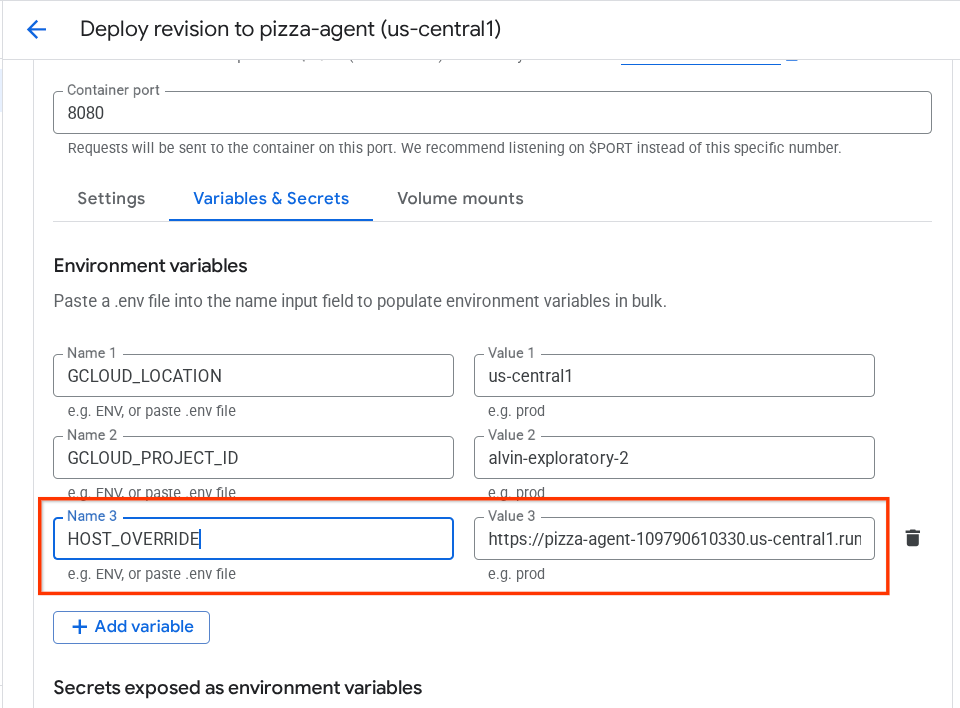

Copy the pizza-service URL, then click on Variable & Secrets section

After that, click Add variable and set the HOST_OVERRIDE the value to the service URL ( the one with https://pizza-agent-xxxxxxxxx.us-central1.run.app pattern )

Finally, click the deploy button to redeploy your service

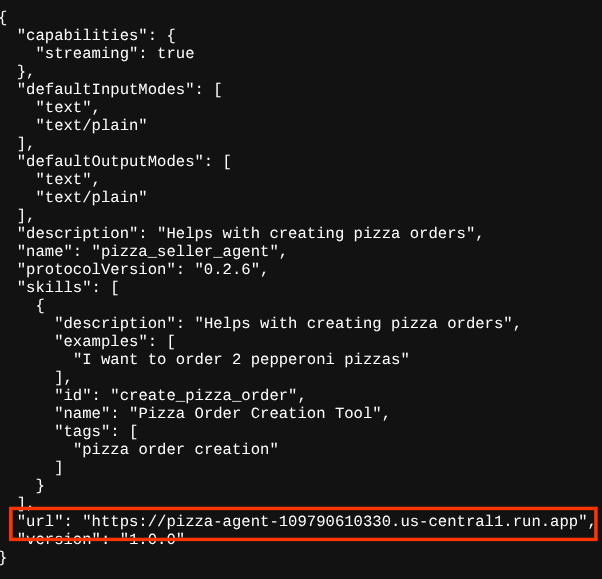

Now, when you access the pizza-agent agent card again in the browser https://pizza-agent-xxxxxxxxx.us-central1.run.app/.well-known/agent.json, the url value will already be properly configured

At this point, we already successfully deploy both burger and pizza services to Cloud Run. Now let's discuss the core components of the A2A Server

4. Core Components of A2A Server

Now let's discuss the core concept and components of the A2A server

Agent Card

Each of A2A Server must have an agent card that is accessible on the /.well-known/agent.json resource. This is to support the discovery phase on the A2A Client, which should give complete information and contexts on how to access the agent and know all of its capabilities. It's kinda similar with well documented API documentation using Swagger or Postman.

This is the content of our deployed burger agent agent card

{
  "capabilities": {
    "streaming": true
  },
  "defaultInputModes": [
    "text",
    "text/plain"
  ],
  "defaultOutputModes": [
    "text",
    "text/plain"
  ],
  "description": "Helps with creating burger orders",
  "name": "burger_seller_agent",
  "protocolVersion": "0.2.6",
  "skills": [
    {
      "description": "Helps with creating burger orders",
      "examples": [
        "I want to order 2 classic cheeseburgers"
      ],
      "id": "create_burger_order",
      "name": "Burger Order Creation Tool",
      "tags": [
        "burger order creation"
      ]
    }
  ],
  "url": "https://burger-agent-109790610330.us-central1.run.app",
  "version": "1.0.0"
}

These agent cards highlight many important components, such as agent skills, streaming capabilities, supported modalities, protocol version, and other things.

All of this information can be utilized to develop a proper communication mechanism so that the A2A client can communicate properly. The supported modality and authentication mechanism ensure the communication can be properly established, and the agent skills information can be embedded into A2A client system prompt to give the client's agent context about the remote agent capabilities and skills to be invoked. More detailed fields for this agent card can be found in this documentation.

In our code, the implementation of agent card is established using the A2A python sdk, check the remote_seller_agents/burger_agent/main.py snippet below for the implementation

...

        capabilities = AgentCapabilities(streaming=True)
        skill = AgentSkill(
            id="create_burger_order",
            name="Burger Order Creation Tool",
            description="Helps with creating burger orders",
            tags=["burger order creation"],
            examples=["I want to order 2 classic cheeseburgers"],
        )
        agent_host_url = (
            os.getenv("HOST_OVERRIDE")
            if os.getenv("HOST_OVERRIDE")
            else f"http://{host}:{port}/"
        )
        agent_card = AgentCard(
            name="burger_seller_agent",
            description="Helps with creating burger orders",
            url=agent_host_url,
            version="1.0.0",
            defaultInputModes=BurgerSellerAgent.SUPPORTED_CONTENT_TYPES,
            defaultOutputModes=BurgerSellerAgent.SUPPORTED_CONTENT_TYPES,
            capabilities=capabilities,
            skills=[skill],
        )

...

We can see several fields there like:

AgentCapabilities : Declaration of additional optional functions that supported by the agent service,like capability for streaming and/or push notification support
AgentSkill : Tools or functions that is supported by the agent
Input/OutputModes : Input/Output type modality that is supported
Url : Address to communicate with the agent

In this configuration we provide a dynamic agent host url creation, so that it is easier to switch between local testing and cloud deployment, thus why we need to add the HOST_OVERRIDE variable in the previous step.

Task Queue and Agent Executor

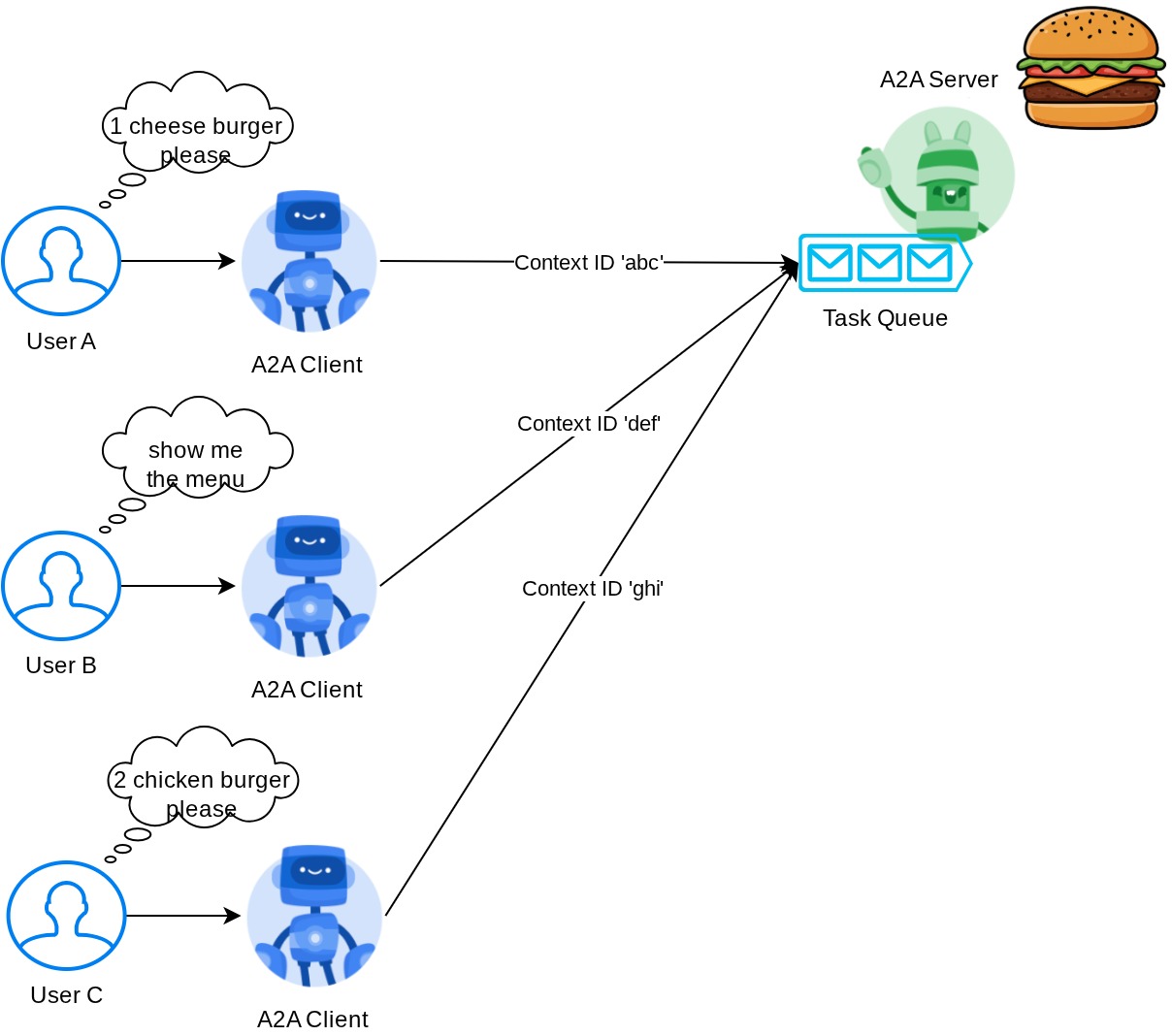

A2A server may be handling requests from different agents or users and be able to isolate each task perfectly. To better visualize the contexts of these, you can inspect the image below

Thus, each A2A server should be able to track incoming tasks and store proper information about it. The A2A SDK provides modules to address this challenge in the A2A server. First, we can instantiate logic on how we want to handle the incoming request. By inheriting the AgentExecutor abstract class we can control how we want to manage task execution and cancellation. This example implementation can be inspected at remote_seller_agents/burger_agent/agent_executor.py module ( similar path for the pizza seller case )

...

class BurgerSellerAgentExecutor(AgentExecutor):
    """Burger Seller AgentExecutor."""

    def __init__(self):
        self.agent = BurgerSellerAgent()

    async def execute(
        self,
        context: RequestContext,
        event_queue: EventQueue,
    ) -> None:
        query = context.get_user_input()
        try:
            result = self.agent.invoke(query, context.context_id)
            print(f"Final Result ===> {result}")

            parts = [Part(root=TextPart(text=str(result)))]
            await event_queue.enqueue_event(
                completed_task(
                    context.task_id,
                    context.context_id,
                    [new_artifact(parts, f"burger_{context.task_id}")],
                    [context.message],
                )
            )
        except Exception as e:
            print("Error invoking agent: %s", e)
            raise ServerError(error=ValueError(f"Error invoking agent: {e}")) from e

    async def cancel(
        self, request: RequestContext, event_queue: EventQueue
    ) -> Task | None:
        raise ServerError(error=UnsupportedOperationError())

...

In the code above, we implement a basic processing scheme in which the agent will be directly invoked when request incoming and send completed task events after it finished the invocation. However we didn't implement the cancellation method here as it was deemed as a short running operation.

After we build the executor, we can directly utilize the built-in DefaultRequestHandler, InMemoryTaskStore, and A2AStarletteApplication to spin up the HTTP Server. This implementation can be inspected in remote_seller_agents/burger_agent/__main__.py

...

        request_handler = DefaultRequestHandler(
            agent_executor=BurgerSellerAgentExecutor(),
            task_store=InMemoryTaskStore(),
        )
        server = A2AStarletteApplication(
            agent_card=agent_card, http_handler=request_handler
        )

        uvicorn.run(server.build(), host=host, port=port)

...

This module will provide you implementation of /.well-known/agent.json route to access the agent card and also the POST endpoint to support the A2A protocol

Summary

In short, so far our deployed A2A Server using Python SDK that can support the 2 functionalities below:

Publishing the agent card on the /.well-known/agent.json route
Handle JSON-RPC request with in memory task queueing

The entry point on starting these functionalities can be inspected on the __main__.py script ( on the remote_seller_agents/burger_agent or remote_seller_agents/pizza_agent ) .

5. Deploying the Purchasing Concierge - A2A Client to Agent Engine

In this step, we will deploy the purchasing concierge agent. This agent is the one that we will interact with.

The source code of our purchasing concierge agent is under the purchasing_concierge directory. The agent initialization can be inspected on the purchasing_agent.py script. Here is the code snippet of the initialized agent.

from google.adk import Agent

...

def create_agent(self) -> Agent:
        return Agent(
            model="gemini-2.5-flash-lite",
            name="purchasing_agent",
            instruction=self.root_instruction,
            before_model_callback=self.before_model_callback,
            before_agent_callback=self.before_agent_callback,
            description=(
                "This purchasing agent orchestrates the decomposition of the user purchase request into"
                " tasks that can be performed by the seller agents."
            ),
            tools=[
                self.send_task,
            ],
        )

...

We will deploy this agent to the agent engine. Vertex AI Agent Engine is a set of services that enables developers to deploy, manage, and scale AI agents in production. It handles the infrastructure to scale agents in production so we can focus on creating applications. You can read more about this in this document . If previously we need to prepare files needed to deploy our agent service (such as main server script and Dockerfile), in this case we can deploy our agent directly from python script without the need of developing our own backend service by using a combination of ADK and Agent Engine. Follow this steps to deploy it :

First, we need to create our staging storage in Cloud Storage

gcloud storage buckets create gs://purchasing-concierge-{your-project-id} --location=us-central1

Now, we need to prepare the .env variable first, let's copy the .env.example into .env file

cp .env.example .env

Now, open the .env file and you will see the following content

GOOGLE_GENAI_USE_VERTEXAI=TRUE
GOOGLE_CLOUD_PROJECT={your-project-id}
GOOGLE_CLOUD_LOCATION=us-central1
STAGING_BUCKET=gs://purchasing-concierge-{your-project-id}
PIZZA_SELLER_AGENT_URL={your-pizza-agent-url}
BURGER_SELLER_AGENT_URL={your-burger-agent-url}
AGENT_ENGINE_RESOURCE_NAME={your-agent-engine-resource-name}

This agent will be communicating with the burger and pizza agent, thus we need to provide the proper credentials for both of them. We will need to update the PIZZA_SELLER_AGENT_URL and BURGER_SELLER_AGENT_URL with the Cloud Run URL from previous steps.

If you forget about this, let's visit the Cloud Run console. Type "Cloud Run" on the search bar on top of your console and right click on the Cloud Run icon to open it in a new tab

You should see our previous deployed remote seller agent services like shown below

Now to see the public URL of those services, click on the one of the service and you'll be redirected to the Service details page. You can see the URL on the top area right beside the Region information

The final environment variable should look similar to this one

GOOGLE_GENAI_USE_VERTEXAI=TRUE
GOOGLE_CLOUD_PROJECT={your-project-id}
GOOGLE_CLOUD_LOCATION=us-central1
STAGING_BUCKET=gs://purchasing-concierge-{your-project-id}
PIZZA_SELLER_AGENT_URL=https://pizza-agent-xxxxx.us-central1.run.app
BURGER_SELLER_AGENT_URL=https://burger-agent-xxxxx.us-central1.run.app
AGENT_ENGINE_RESOURCE_NAME={your-agent-engine-resource-name}

Now, we are ready to deploy our purchasing concierge agent. In this demo we will deploy using script deploy_to_agent_engine.py that the content is shown below

"""
Copyright 2025 Google LLC

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
"""

import vertexai
from vertexai.preview import reasoning_engines
from vertexai import agent_engines
from dotenv import load_dotenv
import os
from purchasing_concierge.agent import root_agent

load_dotenv()

PROJECT_ID = os.getenv("GOOGLE_CLOUD_PROJECT")
LOCATION = os.getenv("GOOGLE_CLOUD_LOCATION")
STAGING_BUCKET = os.getenv("STAGING_BUCKET")

vertexai.init(
    project=PROJECT_ID,
    location=LOCATION,
    staging_bucket=STAGING_BUCKET,
)

adk_app = reasoning_engines.AdkApp(
    agent=root_agent,
)

remote_app = agent_engines.create(
    agent_engine=adk_app,
    display_name="purchasing-concierge",
    requirements=[
        "google-cloud-aiplatform[adk,agent_engines]",
        "a2a-sdk==0.2.16",
    ],
    extra_packages=[
        "./purchasing_concierge",
    ],
    env_vars={
        "GOOGLE_GENAI_USE_VERTEXAI": os.environ["GOOGLE_GENAI_USE_VERTEXAI"],
        "PIZZA_SELLER_AGENT_URL": os.environ["PIZZA_SELLER_AGENT_URL"],
        "BURGER_SELLER_AGENT_URL": os.environ["BURGER_SELLER_AGENT_URL"],
    },
)

print(f"Deployed remote app resource: {remote_app.resource_name}")

This is the steps needed to deploy our ADK agent to the agent engine. First, we need to create an AdkApp object from our ADK root_agent. Then we can run the agent_engines.create method by providing the adk_app object, specifying the requirements in the requirements field, specifying the agent directory path in the extra_packages and providing necessary env variables.

We can deploy it by running the script:

uv run deploy_to_agent_engine.py

After successful deployment it will show a log like this. Notes that xxxx is your project ID and yyyy is your agent engine resource ID

AgentEngine created. Resource name: projects/xxxx/locations/us-central1/reasoningEngines/yyyy
To use this AgentEngine in another session:
agent_engine = vertexai.agent_engines.get('projects/xxxx/locations/us-central1/reasoningEngines/yyyy)
Deployed remote app resource: projects/xxxx/locations/us-central1/reasoningEngines/xxxx

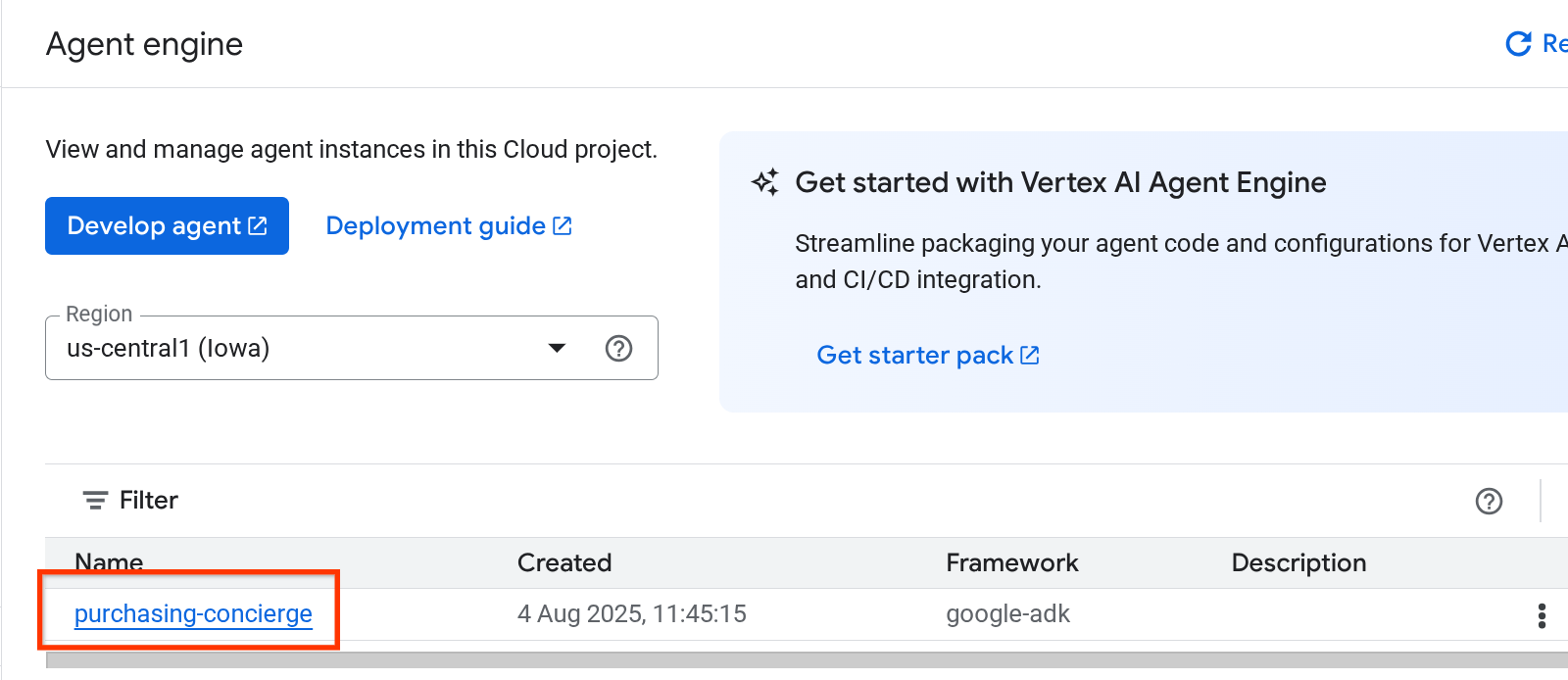

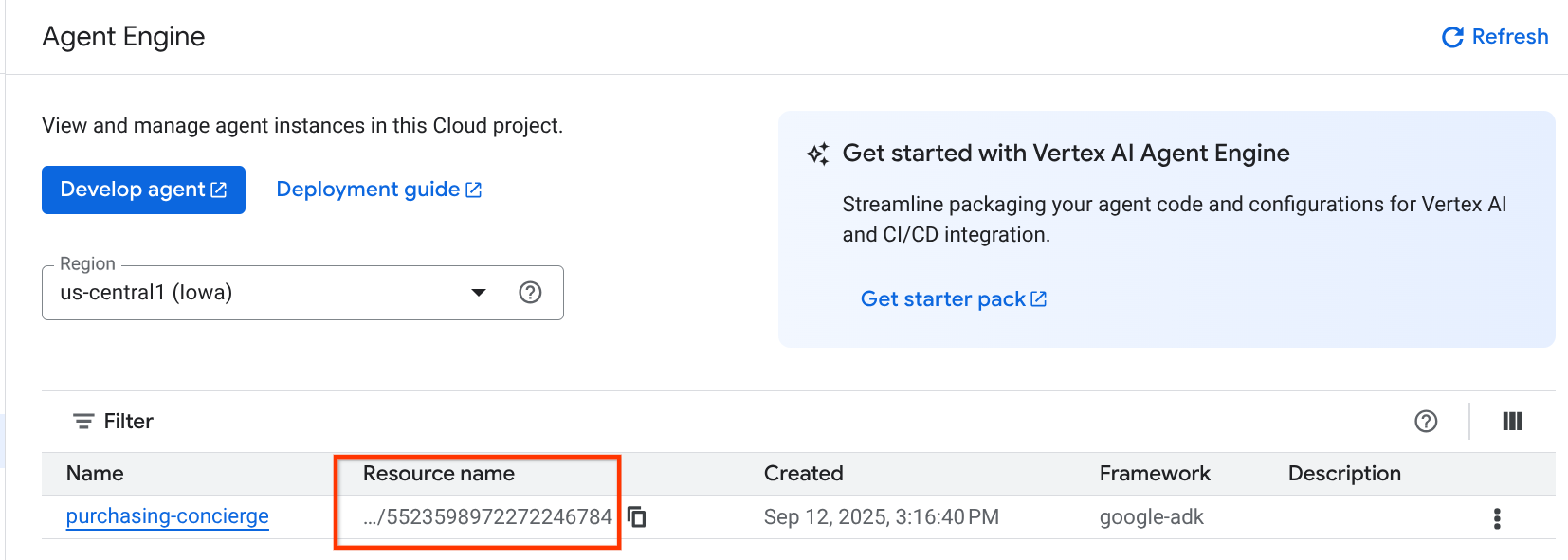

And when we inspect it in agent engine dashboard, ( search for "agent engine" on the search bar ) it will shown our previous deployment

Testing the Deployed Agent on Agent Engine

Interaction with the agent engine can be done via curl command and SDK. For example, run the following command to try having an interaction with the deployed agent.

You can try sending this query to check whether the agent is successfully deployed

curl \
-H "Authorization: Bearer $(gcloud auth print-access-token)" \
-H "Content-Type: application/json" \
https://us-central1-aiplatform.googleapis.com/v1/projects/{YOUR_PROJECT_ID}/locations/us-central1/reasoningEngines/{YOUR_AGENT_ENGINE_RESOURCE_ID}:streamQuery?alt=sse -d '{
  "class_method": "stream_query",
  "input": {
    "user_id": "user_123",
    "message": "List available burger menu please",
  }
}'

If successful it will show several response events streamed on your console like this

{
  "content": {
    "parts": [
      {
        "text": "Here is our burger menu:\n- Classic Cheeseburger: IDR 85K\n- Double Cheeseburger: IDR 110K\n- Spicy Chicken Burger: IDR 80K\n- Spicy Cajun Burger: IDR 85K"
      }
    ],
    "role": "model"
  },
  "usage_metadata": {
    "candidates_token_count": 51,
    "candidates_tokens_details": [
      {
        "modality": "TEXT",
        "token_count": 51
      }
    ],
    "prompt_token_count": 907,
    "prompt_tokens_details": [
      {
        "modality": "TEXT",
        "token_count": 907
      }
    ],
    "total_token_count": 958,
    "traffic_type": "ON_DEMAND"
  },
  "invocation_id": "e-14679918-af68-45f1-b942-cf014368a733",
  "author": "purchasing_agent",
  "actions": {
    "state_delta": {},
    "artifact_delta": {},
    "requested_auth_configs": {}
  },
  "id": "dbe7fc43-b82a-4f3e-82aa-dd97afa8f15b",
  "timestamp": 1754287348.941454
}

We will try using UI in the next step, however let's discuss what are the core components and typical flow of A2A clients first

6. Core Components of A2A Client

The image shown above is the typical flow of A2A interactions:

Client will try to find any published agent card in the provided remote agent URL in the route /.well-known/agent.json
Then, when necessary it will send a Message to that agent with the message and necessary metadata parameters ( E.g. session ID, historical context, etc ). The server will perceive this Message as a Task to be completed
The A2A server process the request, if the server support push notifications, it will also capable to publish some notifications throughout the task processing ( This functionality is out of scope of this codelab )
After finished, the A2A server will send the response artifact back to the client

Some of the core objects for above interactions is these items (more details can be read here) :

Message: A communication turn between a client and a remote agent
Task: The fundamental unit of work managed by A2A, identified by a unique ID
Artifact: An output (e.g., a document, image, structured data) generated by the agent as a result of a task, composed of Parts
Part: The smallest unit of content within a Message or Artifact. Part can be a text, image, video, file, etc.

Card Discovery

When A2A Client service is being spun up, the typical process is to try to get the agent card information and store it to easily access it when needed. In this codelab, we implement it on before_agent_callback, you can see the implementation in purchasing_concierge/purchasing_agent.py see the code snippet below

...

async def before_agent_callback(self, callback_context: CallbackContext):
        if not self.a2a_client_init_status:
            httpx_client = httpx.AsyncClient(timeout=httpx.Timeout(timeout=30))
            for address in self.remote_agent_addresses:
                card_resolver = A2ACardResolver(
                    base_url=address, httpx_client=httpx_client
                )
                try:
                    card = await card_resolver.get_agent_card()
                    remote_connection = RemoteAgentConnections(
                        agent_card=card, agent_url=card.url
                    )
                    self.remote_agent_connections[card.name] = remote_connection
                    self.cards[card.name] = card
                except httpx.ConnectError:
                    print(f"ERROR: Failed to get agent card from : {address}")
            agent_info = []
            for ra in self.list_remote_agents():
                agent_info.append(json.dumps(ra))
            self.agents = "\n".join(agent_info)

...

In here, we try to access all available agent cards using built-in A2A client A2ACardResolver module, then we gather the connection needed to send message to agent, after that we also need to list all available agent and its specifications into the prompt so that our agent aware that it can communicate with these agents

Prompt and Send Task Tool

This is the prompt and tool we provide to our ADK agent here

...

def root_instruction(self, context: ReadonlyContext) -> str:
    current_agent = self.check_active_agent(context)
    return f"""You are an expert purchasing delegator that can delegate the user product inquiry and purchase request to the
appropriate seller remote agents.

Execution:
- For actionable tasks, you can use `send_task` to assign tasks to remote agents to perform.
- When the remote agent is repeatedly asking for user confirmation, assume that the remote agent doesn't have access to user's conversation context.
So improve the task description to include all the necessary information related to that agent
- Never ask user permission when you want to connect with remote agents. If you need to make connection with multiple remote agents, directly
connect with them without asking user permission or asking user preference
- Always show the detailed response information from the seller agent and propagate it properly to the user.
- If the remote seller is asking for confirmation, rely the confirmation question to the user if the user haven't do so.
- If the user already confirmed the related order in the past conversation history, you can confirm on behalf of the user
- Do not give irrelevant context to remote seller agent. For example, ordered pizza item is not relevant for the burger seller agent
- Never ask order confirmation to the remote seller agent

Please rely on tools to address the request, and don't make up the response. If you are not sure, please ask the user for more details.
Focus on the most recent parts of the conversation primarily.

If there is an active agent, send the request to that agent with the update task tool.

Agents:
{self.agents}

Current active seller agent: {current_agent["active_agent"]}
"""

...

async def send_task(self, agent_name: str, task: str, tool_context: ToolContext):
        """Sends a task to remote seller agent

        This will send a message to the remote agent named agent_name.

        Args:
            agent_name: The name of the agent to send the task to.
            task: The comprehensive conversation context summary
                and goal to be achieved regarding user inquiry and purchase request.
            tool_context: The tool context this method runs in.

        Yields:
            A dictionary of JSON data.
        """
        if agent_name not in self.remote_agent_connections:
            raise ValueError(f"Agent {agent_name} not found")
        state = tool_context.state
        state["active_agent"] = agent_name
        client = self.remote_agent_connections[agent_name]
        if not client:
            raise ValueError(f"Client not available for {agent_name}")
        session_id = state["session_id"]
        task: Task
        message_id = ""
        metadata = {}
        if "input_message_metadata" in state:
            metadata.update(**state["input_message_metadata"])
            if "message_id" in state["input_message_metadata"]:
                message_id = state["input_message_metadata"]["message_id"]
        if not message_id:
            message_id = str(uuid.uuid4())

        payload = {
            "message": {
                "role": "user",
                "parts": [
                    {"type": "text", "text": task}
                ],  # Use the 'task' argument here
                "messageId": message_id,
                "contextId": session_id,
            },
        }

        message_request = SendMessageRequest(
            id=message_id, params=MessageSendParams.model_validate(payload)
        )
        send_response: SendMessageResponse = await client.send_message(
            message_request=message_request
        )
        print(
            "send_response",
            send_response.model_dump_json(exclude_none=True, indent=2),
        )

        if not isinstance(send_response.root, SendMessageSuccessResponse):
            print("received non-success response. Aborting get task ")
            return None

        if not isinstance(send_response.root.result, Task):
            print("received non-task response. Aborting get task ")
            return None

        return send_response.root.result

...

In the prompt, we give our purchasing concierge agent all available remote agents name and description, and in the tool self.send_task we provide a mechanism to retrieve the appropriate client to connect to the agent and send the required metadata using the SendMessageRequest object.

The Communication Protocols

The Task definition is a domain that is owned by the A2A server. However, from the perspective of the A2A client, they see it as a Message that is sent to the server, it is up to the server how to define incoming messages from the client as which task and whether completing the task needs the interaction from the client, you can read more details about task lifecycle in this documentation. The higher level concept of this can be visualized below:

This interchange of message -> task is implemented using the payload format on top of the JSON-RPC standard like shown in below example of message/send protocol :

{
  # identifier for this request
  "id": "abc123",
  # version of JSON-RPC protocol
  "jsonrpc": "2.0",
  # method name
  "method": "message/send",
  # parameters/arguments of the method
  "params": {
    "message": "hi, what can you help me with?"
  }
}

There are various methods available, for example to support different types of communication (e.g. sync, streaming, async ) or to configure notifications for the task status. A2A server can be flexibly configured to handle these task definition standards. Details of these methods can be read in this document.

7. Integration Testing and Payload Inspection

Now let's inspect our purchasing concierge with the remote agent interaction using a web UI.

First, we need to update the AGENT_ENGINE_RESOURCE_NAME in the .env file. Make sure you provide the correct agent engine resource name. Your .env file should look like this:

GOOGLE_GENAI_USE_VERTEXAI=TRUE
GOOGLE_CLOUD_PROJECT={your-project-id}
GOOGLE_CLOUD_LOCATION=us-central1
STAGING_BUCKET=gs://purchasing-concierge-{your-project-id}
PIZZA_SELLER_AGENT_URL=https://pizza-agent-xxxxx.us-central1.run.app
BURGER_SELLER_AGENT_URL=https://burger-agent-xxxxx.us-central1.run.app
AGENT_ENGINE_RESOURCE_NAME=projects/xxxx/locations/us-central1/reasoningEngines/yyyy

After that, run the following command to deploy a Gradio app

uv run purchasing_concierge_ui.py

It will shown the following output if succeeded

* Running on local URL:  http://0.0.0.0:8080
* To create a public link, set `share=True` in `launch()`.

Then, Ctrl + click the http://0.0.0.0:8080 url on the terminal or click the web preview button to open the web UI

Try to have a conversation like this :

Show me burger and pizza menu
I want to order 1 bbq chicken pizza and 1 spicy cajun burger

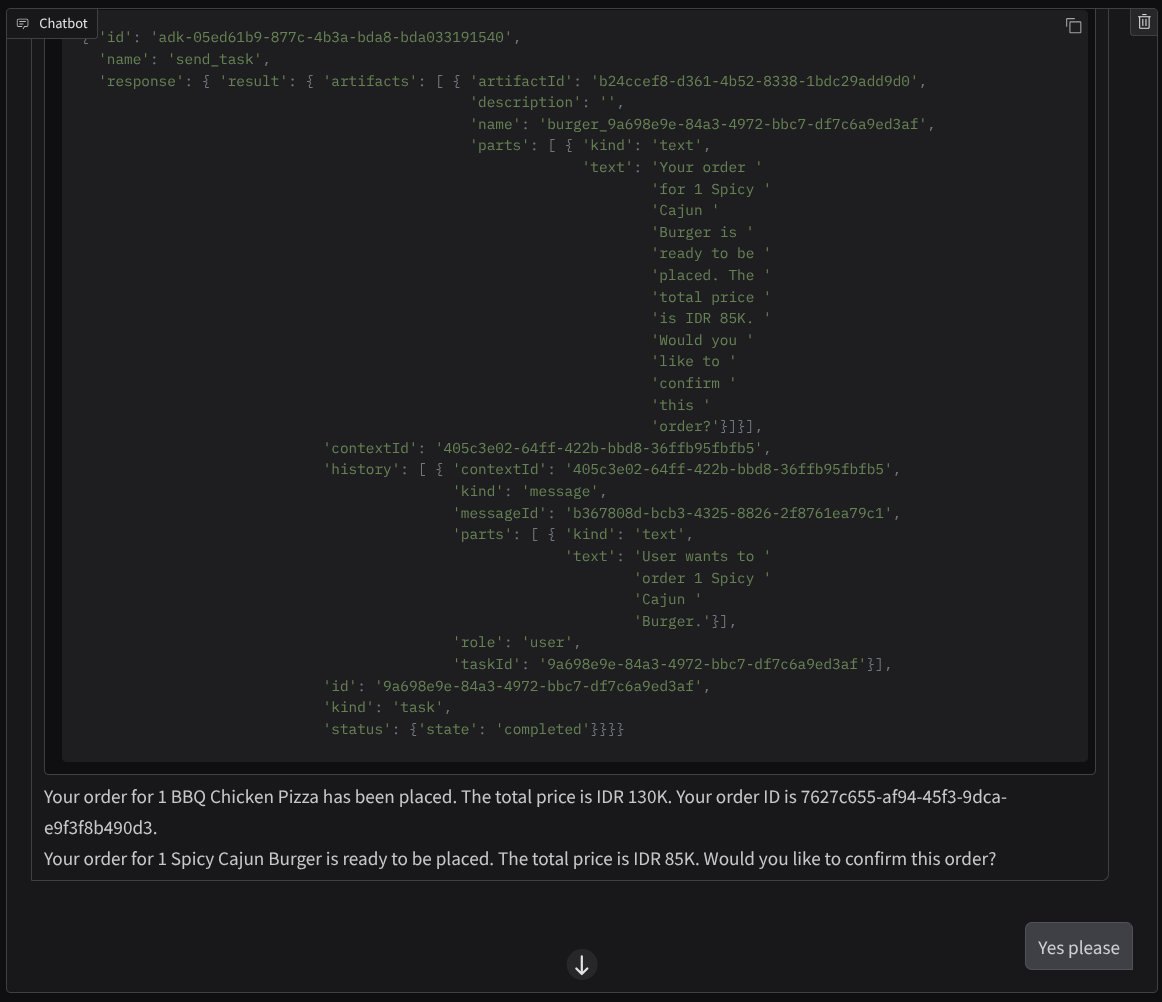

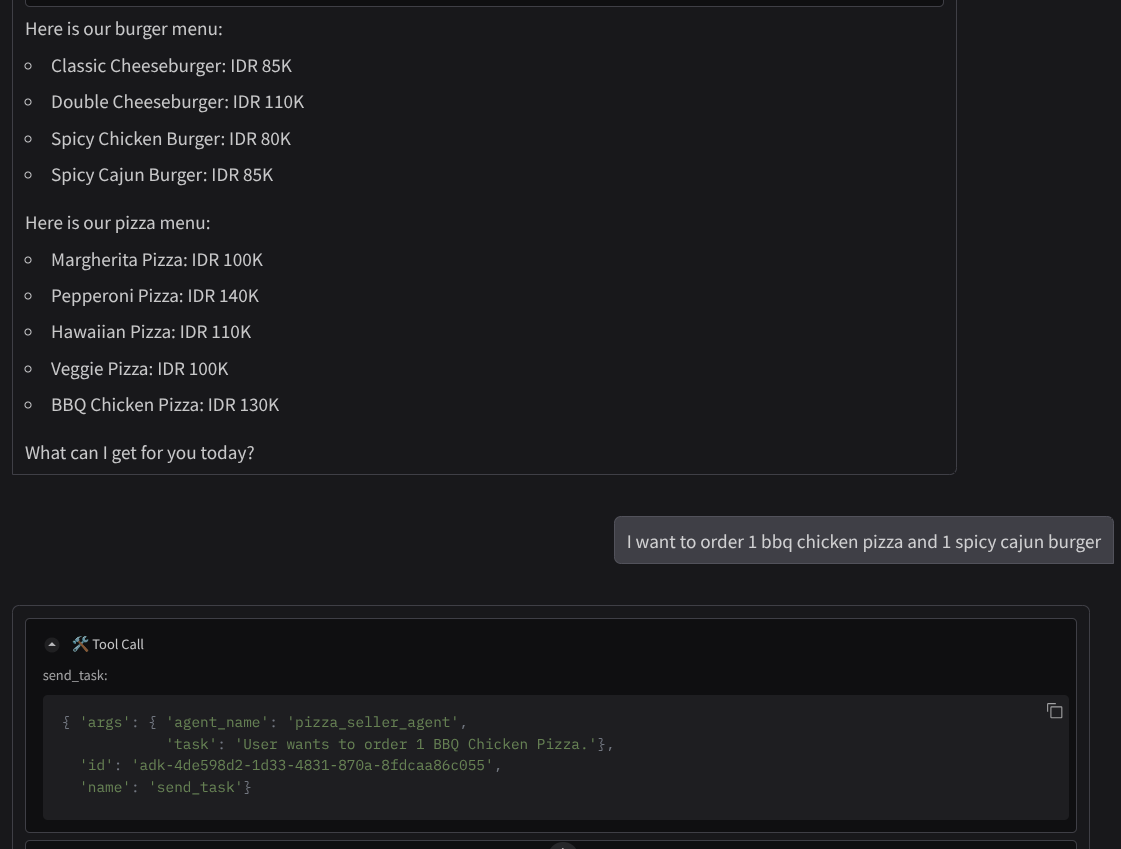

And continue the conversation until you finish the order. Inspect how the interaction is going and what is the tool call and response? The following image is an example of the interaction result.

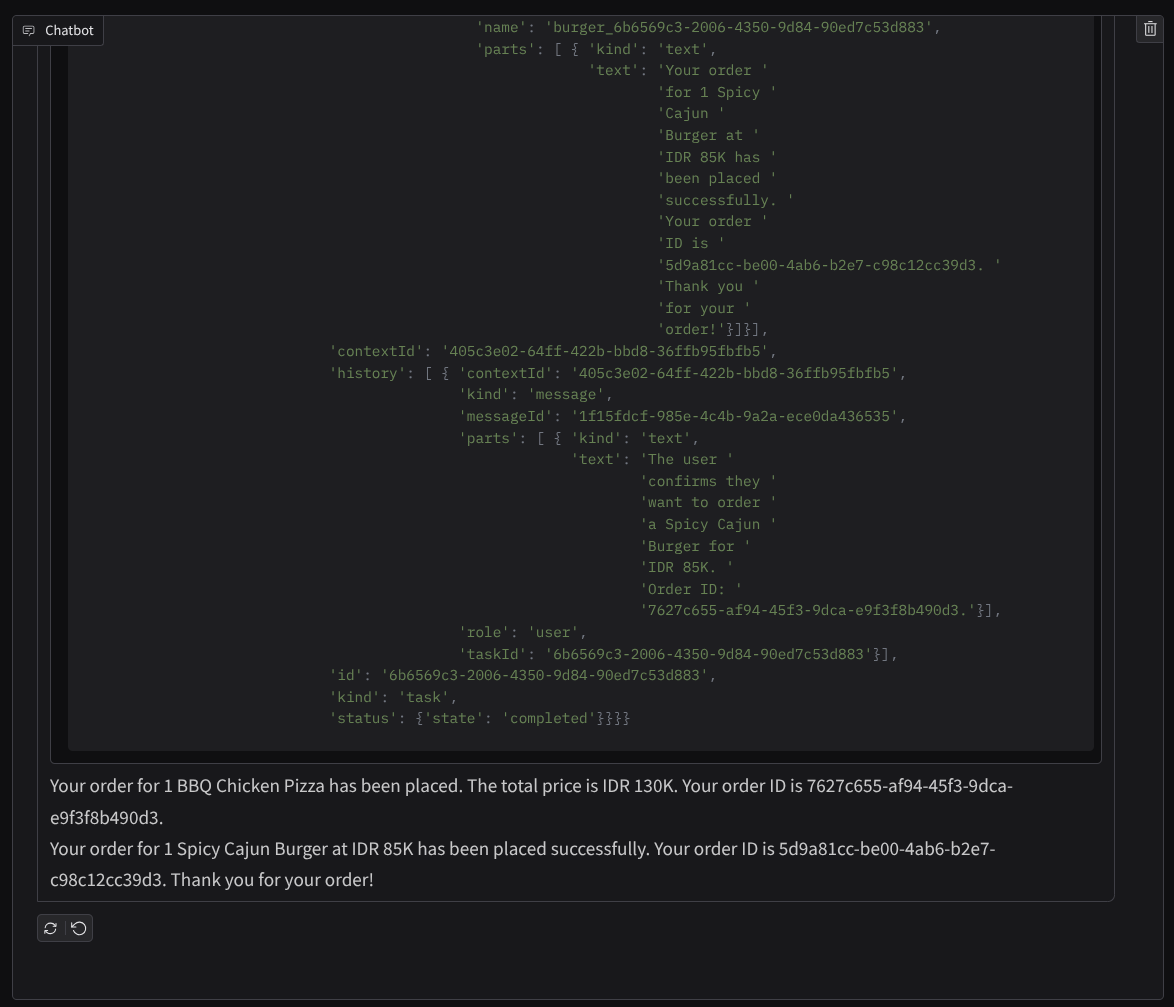

We can see that communicating with 2 different agents yields 2 different behaviors and A2A can handle this well. The pizza seller agent directly accepts our purchasing agent request, whereas the burger agent needs our confirmation before proceeding with our request and after we confirm the agent can rely the confirmation to the burger agent

Now, we have finished the basic concepts of A2A and see how it implemented as client and server architecture

8. Challenge

Now, can you prepare the necessary file and deploy the Gradio app into the cloud run by yourself? Time to take up the challenge!

9. Clean up

To avoid incurring charges to your Google Cloud account for the resources used in this codelab, follow these steps:

In the Google Cloud console, go to the Manage resources page.
In the project list, select the project that you want to delete, and then click Delete.
In the dialog, type the project ID, and then click Shut down to delete the project.
Alternatively you can go to Cloud Run on the console, select the service you just deployed and delete.
