1. 簡介
在本程式碼實驗室中,您將瞭解如何使用 BigQuery Graph,為虛構的零售公司 Cymbal Pets 建構 360 度全方位客戶視圖和推薦引擎。您將運用 SQL 的強大功能,直接在 BigQuery 中建立、查詢及分析圖表資料,並結合向量搜尋功能,提供進階產品推薦。
BigQuery Graph 可讓您將資料實體 (例如客戶、產品和訂單) 之間的關係建立為圖表模型,輕鬆回答有關客戶行為和產品關聯性的複雜問題。

學習內容
- 為 Cymbal Pets 圖表建立 BigQuery 資料集和結構定義
- 從 Cloud Storage 載入範例資料 (客戶、產品、訂單、商店)
- 在 BigQuery 建立屬性圖譜,連結這些實體
- 查詢圖譜,並以視覺化方式呈現客戶購買記錄
- 使用向量搜尋建構產品推薦系統
- 參考「一起購買」圖譜關係和 Jaccard 相似度指標,強化推薦系統
軟硬體需求
- 網路瀏覽器,例如 Chrome
- 已啟用計費功能的 Google Cloud 雲端專案
本程式碼實驗室適合各種程度的開發人員,包括初學者。
2. 事前準備
建立 Google Cloud 專案
- 在 Google Cloud 控制台中,選取或建立 Google Cloud 專案。
- 確認 Cloud 專案已啟用計費功能。
啟動 Cloud Shell
- 點選 Google Cloud 控制台頂端的「啟用 Cloud Shell」。
- 驗證:
gcloud auth list
- 確認專案:
gcloud config get project
- 視需要設定:
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID
啟用 API
執行下列指令,啟用必要的 BigQuery API:
gcloud services enable bigquery.googleapis.com
3. 定義結構定義
首先,您需要建立資料集來儲存圖表相關資料表,並定義節點和邊緣的結構定義。
- 在本程式碼實驗室中,我們會執行 SQL 指令。您可以在「BigQuery Studio」>「SQL 編輯器」中執行這些指令,或在 Cloud Shell 中使用
bq query指令。
我們假設您使用 BigQuery SQL 編輯器,以便更輕鬆地建立多行陳述式。 - 建立
cymbal_pets_demo資料集:
CREATE SCHEMA IF NOT EXISTS cymbal_pets_demo;
- 為
order_items、products、orders、stores、customers和co_related_products_for_angelica建立資料表。這些資料表將做為圖表的來源資料。
CREATE TABLE IF NOT EXISTS cymbal_pets_demo.order_items
(
order_id INT64,
product_id INT64,
order_item_id INT64,
quantity INT64,
price FLOAT64,
PRIMARY KEY (order_id, product_id, order_item_id) NOT ENFORCED
)
CLUSTER BY order_item_id;
CREATE TABLE IF NOT EXISTS cymbal_pets_demo.products
(
product_id INT64,
product_name STRING,
brand STRING,
category STRING,
subcategory INT64,
animal_type INT64,
search_keywords INT64,
price FLOAT64,
description STRING,
inventory_level INT64,
supplier_id INT64,
average_rating FLOAT64,
uri STRING,
embedding ARRAY<FLOAT64>,
PRIMARY KEY (product_id) NOT ENFORCED
)
CLUSTER BY product_id;
CREATE TABLE IF NOT EXISTS cymbal_pets_demo.orders
(
customer_id INT64,
order_id INT64,
shipping_address_city STRING,
store_id INT64,
order_date STRING,
order_type STRING,
payment_method STRING,
PRIMARY KEY (order_id) NOT ENFORCED
);
CREATE TABLE IF NOT EXISTS cymbal_pets_demo.stores
(
store_id INT64,
store_name STRING,
address_state STRING,
address_city STRING,
latitude FLOAT64,
longitude FLOAT64,
opening_hours STRUCT<Monday STRING, Tuesday STRING, Wednesday STRING, Thursday STRING, Friday STRING, Saturday STRING, Sunday STRING>,
manager_id INT64,
PRIMARY KEY (store_id) NOT ENFORCED
)
CLUSTER BY store_id;
CREATE TABLE IF NOT EXISTS cymbal_pets_demo.customers
(
customer_id INT64,
first_name STRING,
last_name STRING,
email STRING,
gender STRING,
address_city STRING,
address_state STRING,
loyalty_member BOOL,
PRIMARY KEY (customer_id) NOT ENFORCED
)
CLUSTER BY customer_id;
CREATE TABLE IF NOT EXISTS cymbal_pets_demo.co_related_products_for_angelica
(
angelica_product_id INT64,
other_product_id INT64,
co_purchase_count INT64,
jaccard_similarity FLOAT64
);
您已定義圖表資料的結構。
4. 載入資料
接著,使用 Cloud Storage 的範例資料填入資料表。
在 BigQuery SQL 編輯器中執行下列 LOAD DATA 陳述式:
LOAD DATA INTO `cymbal_pets_demo.customers`
FROM FILES (
format = 'AVRO',
uris = ['gs://sample-data-and-media/cymbal-pets/tables/customers/*.avro'],
enable_logical_types = true
);
LOAD DATA INTO `cymbal_pets_demo.order_items`
FROM FILES (
format = 'AVRO',
uris = ['gs://sample-data-and-media/cymbal-pets/tables/order_items/*.avro'],
enable_logical_types = true
);
LOAD DATA INTO `cymbal_pets_demo.orders`
FROM FILES (
format = 'AVRO',
uris = ['gs://sample-data-and-media/cymbal-pets/tables/orders/*.avro'],
enable_logical_types = true
);
-- 1. Create a new partitioned and clustered table from your current data
CREATE TABLE cymbal_pets_demo.orders_temp
PARTITION BY order_date
CLUSTER BY order_id
AS
SELECT
customer_id,
order_id,
shipping_address_city,
store_id,
-- Parse the string to a DATE type. Adjust format string ('%Y-%m-%d') if necessary.
PARSE_DATE('%Y-%m-%d', order_date) AS order_date,
order_type,
payment_method
FROM
cymbal_pets_demo.orders;
-- 2. Drop the original, non-partitioned table
DROP TABLE cymbal_pets_demo.orders;
-- 3. Rename the temporary table to the original table name
ALTER TABLE cymbal_pets_demo.orders_temp RENAME TO orders;
LOAD DATA INTO `cymbal_pets_demo.products`
FROM FILES (
format = 'AVRO',
uris = ['gs://sample-data-and-media/cymbal-pets/tables/products/*.avro'],
enable_logical_types = true
);
LOAD DATA INTO `cymbal_pets_demo.stores`
FROM FILES (
format = 'AVRO',
uris = ['gs://sample-data-and-media/cymbal-pets/tables/stores/*.avro'],
enable_logical_types = true
);
您應該會看到確認訊息,表示資料列已載入各個資料表。
5. 建立屬性圖譜

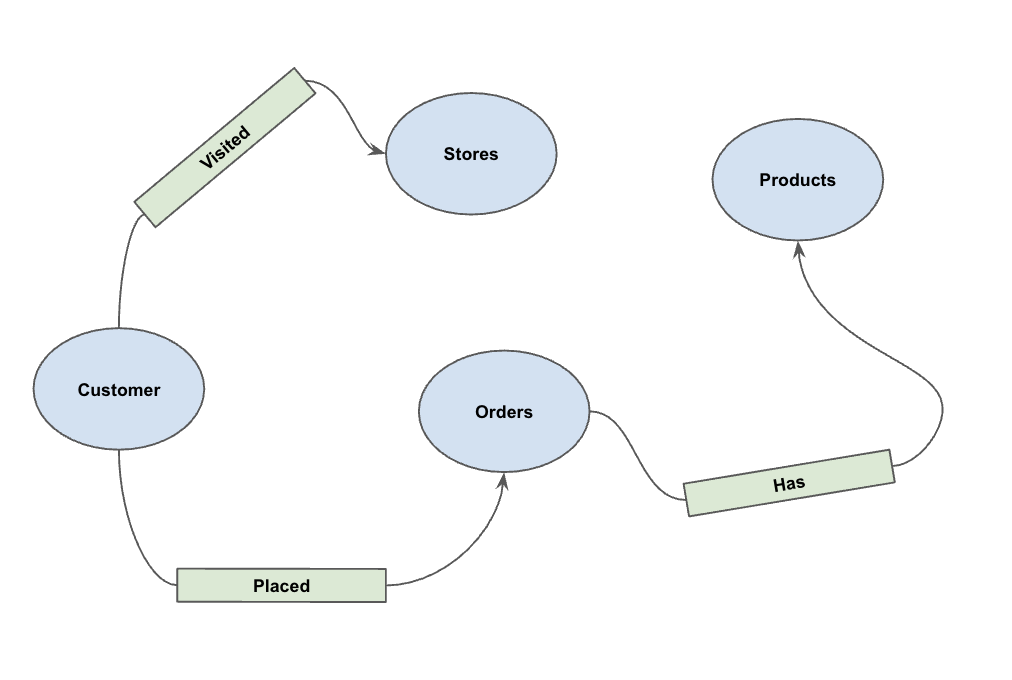

載入資料後,即可定義屬性圖。這會告訴 BigQuery 哪些資料表代表節點 (「客戶」、「產品」等實體),哪些資料表代表邊緣 (「造訪」、「下單」、「擁有」等關係)。

執行下列 DDL 陳述式:
CREATE OR REPLACE PROPERTY GRAPH cymbal_pets_demo.PetsOrderGraph
NODE TABLES (
cymbal_pets_demo.customers KEY(customer_id) LABEL Customer,
cymbal_pets_demo.products KEY(product_id) LABEL Products,
cymbal_pets_demo.stores KEY(store_id) LABEL Stores,
cymbal_pets_demo.orders KEY(order_id) LABEL Orders
)
EDGE TABLES (
cymbal_pets_demo.orders as customer_to_store_edge
KEY (order_id)
SOURCE KEY (customer_id) references customers(customer_id)
DESTINATION KEY (store_id) references stores(store_id)
LABEL Visited
PROPERTIES ALL COLUMNS,
cymbal_pets_demo.order_items
KEY (order_item_id)
SOURCE KEY (order_id) references orders(order_id)
DESTINATION KEY (product_id) references products(product_id)
LABEL Has
PROPERTIES ALL COLUMNS,
cymbal_pets_demo.orders as customer_to_orders_edge
KEY (order_id)
SOURCE KEY (customer_id) references customers(customer_id)
DESTINATION KEY (order_id) references orders(order_id)
LABEL Placed
PROPERTIES ALL COLUMNS,
cymbal_pets_demo.co_related_products_for_angelica
KEY (angelica_product_id)
SOURCE KEY (angelica_product_id) references products(product_id)
DESTINATION KEY (other_product_id) references products(product_id)
LABEL BoughtTogether
PROPERTIES ALL COLUMNS
);
這會建立圖表 PetsOrderGraph,讓我們可以使用 GRAPH_TABLE 運算子執行圖表遍歷。
6. 以視覺化方式呈現所有客戶的購買記錄
在本程式碼實驗室的視覺化和推薦部分,我們會使用 BigQuery Studio 的原生圖譜視覺化功能。這樣一來,我們就能輕鬆以圖表呈現結果。
或者,您也可以使用 IPython Magics,在 BigQuery Graph 筆記本中以圖表呈現資料。只要新增 %%bigquery 魔術指令和 TO_JSON 函式,就能以圖表呈現結果,詳情請參閱後續章節。
假設 Cymbal Pets 想要全方位瞭解所有顧客,以及他們在特定時間範圍內的購買行為。
在新的 BigQuery Studio 分頁中執行下列指令:
GRAPH cymbal_pets_demo.PetsOrderGraph
# finds the customer node and then finds all
# the Orders nodes that are connected to that customer through the
# Placed relationship
MATCH (customer:Customer)-[placed:Placed]->(ordr:Orders)-[has:Has]->(product:Products)
# filters the Orders nodes to only include those where the
# order_date is within the last 3 months.
WHERE ordr.order_date >= date('2024-11-27')
# # This line finds all the Products nodes that are connected to the
# # filtered Orders nodes through the Has relationship.
MATCH p=(customer:Customer)-[placed:Placed]->(ordr:Orders)-[has:Has]->(product:Products)
LIMIT 40
RETURN
TO_JSON(p) as paths
如要以圖表呈現結果,請在「查詢結果」窗格中點選「圖表」。

7. 以圖表呈現 Angelica 的購買記錄
假設 Cymbal Pets 想深入瞭解名為 Angelica Russell 的顧客。他們想分析 Angelica 過去 3 個月內購買的產品,以及造訪過的商店。
GRAPH cymbal_pets_demo.PetsOrderGraph
# finds the customer node with the name "Angelica Russell" and then finds all
# the Orders nodes that are connected to that customer through the
# Placed relationship and all the Products nodes that are connected to the
# filtered Orders nodes through the Has relationship.
MATCH p=(customer:Customer {first_name: 'Angelica', last_name: 'Russell'})-[placed:Placed]->(ordr:Orders)-[has:Has]->(product:Products)
# filters the Orders nodes to only include those where the
# order_date is within the last 3 months.
WHERE ordr.order_date >= date('2024-11-27')
# finds the Stores nodes where Angelica placed order from
MATCH p2=(customer)-[visited:Visited]->(store:Stores)
RETURN
TO_JSON(p) as path, TO_JSON(p2) as path2

8. 使用向量搜尋推薦產品
Cymbal Pets 想根據 Angelica 最近購買的商品,向她推薦產品。我們可以使用向量搜尋,找出與她過去購買的產品有相似嵌入的產品。
在新的 Colab 儲存格中執行下列 SQL 指令碼。這個指令碼會:
- 找出 Angelica 最近購買的產品。
- 使用
VECTOR_SEARCH從products資料表找出前 4 個相似產品。
注意:這個步驟假設您已執行 AI.GENERATE_EMBEDDINGS,在產品資料表中建立嵌入資料欄。
DECLARE products_bought_by_angelica ARRAY<INT64>;
-- 1. Get IDs of products bought by Angelica
SET products_bought_by_angelica = (
SELECT ARRAY_AGG(product_id) FROM
GRAPH_TABLE(
cymbal_pets_demo.PetsOrderGraph
MATCH (c:Customer {first_name: 'Angelica', last_name: 'Russell'})-[placed:Placed]->(o:Orders)
WHERE o.order_date >= date('2024-11-27')
MATCH (o)-[has_edge:Has]->(p:Products)
RETURN DISTINCT p.product_id as product_id
));
-- 2. Find similar products using vector search
SELECT
query.product_name as AngelicaBought,
base.product_name as RecommendedProducts,
base.category
FROM
VECTOR_SEARCH(
TABLE cymbal_pets_demo.products,
'embedding',
(SELECT * FROM cymbal_pets_demo.products
WHERE product_id IN UNNEST(products_bought_by_angelica)),
'embedding',
top_k => 4)
WHERE query.product_name <> base.product_name;
您應該會看到一份推薦產品清單,其中的產品與 Angelica 購買的產品語意相似。

9. 使用「一起購買」和 Jaccard 相似度指標的推薦系統
另一項強大的推薦技術是「協同過濾」,也就是推薦其他使用者經常一起購買的產品。

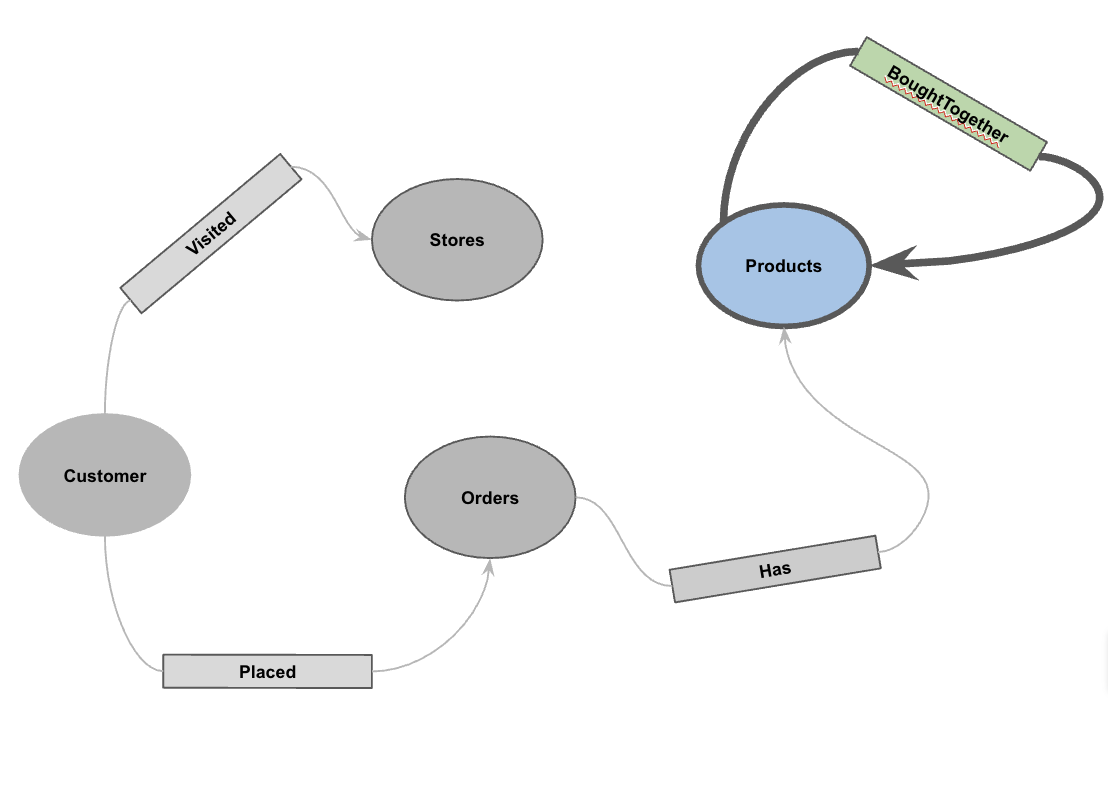

如要找出這些產品,我們可以從客戶開始遍歷圖表,先找出他們購買的產品,再找出購買這些產品的其他客戶,最後找出這些客戶購買的其他產品。
運用 Jaccard 相似度克服熱門程度偏誤
雖然原始共同購買次數很有用,但可能會偏向熱銷產品。熱銷產品可能只是碰巧與許多商品一起購買。
Jaccard 相似度會將共同購買次數正規化,進一步提升推薦系統。這項指標會評估兩個組合之間的相似度 (在本例中,是指包含各項產品的訂單組合)。
Jaccard 相似度的公式如下:
地點:
- A 交集 B 是同時包含產品 A 和產品 B 的訂單數量 (共同購買次數)。
- A 是包含產品 A 的訂單總數。
- B 是包含產品 B 的訂單總數。
在以下範例中,集合 A = {b,c,e,f,g},集合 B = {a,d,b,g},兩者的交集 A⋂B = {b,g},聯集 A⋃B = {a,b,c,d,e,f,g},因此 A 和 B 的 Jaccard 相似度為 2 / 7 = 0.285714

候選項目生成和重新排名
在處理大量資料集的實際推薦系統中,為所有可能的產品組合計算複雜的相似度分數 (例如 Jaccard),通常不切實際。常見的做法是採用兩階段方法:
- 候選項目生成:使用簡單快速的指標 (例如原始共同購買次數) 篩選搜尋空間,找出數量可控的候選項目 (例如前 10 名)。
- 重新排名:套用更精確但運算量較大的指標 (例如 Jaccard 相似度),為這組候選項目排名,並選出最終的最佳推薦內容。
在本程式碼實驗室中,我們將遵循以下模式:
- 階段 1:執行查詢,根據原始共同購買次數,找出每項產品的前 10 名共同購買產品,並儲存至資料表。
- 階段 2:使用圖表查詢擷取這些候選項目,依 Jaccard 相似度排序,並傳回前 3 名。
[!WARNING] 缺點:在第 1 階段依原始計數篩選,可能會遺漏高度特定但頻率較低的共同購買「喚回度」。如果某項產品與另一項產品高度相似,但兩者都很少有人購買,則可能不會進入前 10 名候選產品,因而遭到遺漏。
執行下列查詢,計算原始共同購買次數和 Jaccard 相似度,並依原始次數儲存前 10 名候選項目:
CREATE OR REPLACE TABLE cymbal_pets_demo.co_related_products_for_angelica AS
-- Calculate the total number of orders for each product
WITH ProductOrderCounts AS (
SELECT product_id, COUNT(DISTINCT order_id) as total_count
FROM cymbal_pets_demo.order_items
GROUP BY product_id
),
-- Calculate the intersection of each product pairs
CoPurchases AS (
SELECT
angelicaProduct.product_id AS angelica_product_id,
otherProduct.product_id AS other_product_id,
count(DISTINCT otherOrder.order_id) AS co_purchase_count
FROM
GRAPH_TABLE (cymbal_pets_demo.PetsOrderGraph
MATCH (angelica:Customer {first_name: 'Angelica', last_name: 'Russell'})-[:Placed]->(o:Orders)-[:Has]->(angelicaProduct:Products)
WHERE o.order_date >= date('2024-11-27')
WITH angelica, angelicaProduct
MATCH (otherCustomer:Customer)-[:Placed]->(otherOrder:Orders)-[:Has]->(angelicaProduct)
WHERE otherCustomer <> angelica
WITH angelicaProduct, otherOrder
MATCH (otherOrder)-[:HAS]->(otherProduct:Products)
WHERE angelicaProduct <> otherProduct
RETURN angelicaProduct, otherProduct, otherOrder
)
GROUP BY
angelicaProduct.product_id, otherProduct.product_id
)
SELECT * FROM (
SELECT
cp.angelica_product_id,
cp.other_product_id,
cp.co_purchase_count,
-- The Jaccard calculation, which is the intersection of A and B divided by (A + B - intersection)
SAFE_DIVIDE(cp.co_purchase_count, (poc1.total_count + poc2.total_count - cp.co_purchase_count)) AS jaccard_similarity,
ROW_NUMBER() OVER (PARTITION BY cp.angelica_product_id ORDER BY cp.co_purchase_count DESC) AS rn
FROM CoPurchases cp
JOIN ProductOrderCounts poc1 ON cp.angelica_product_id = poc1.product_id
JOIN ProductOrderCounts poc2 ON cp.other_product_id = poc2.product_id
)
WHERE rn <= 10;

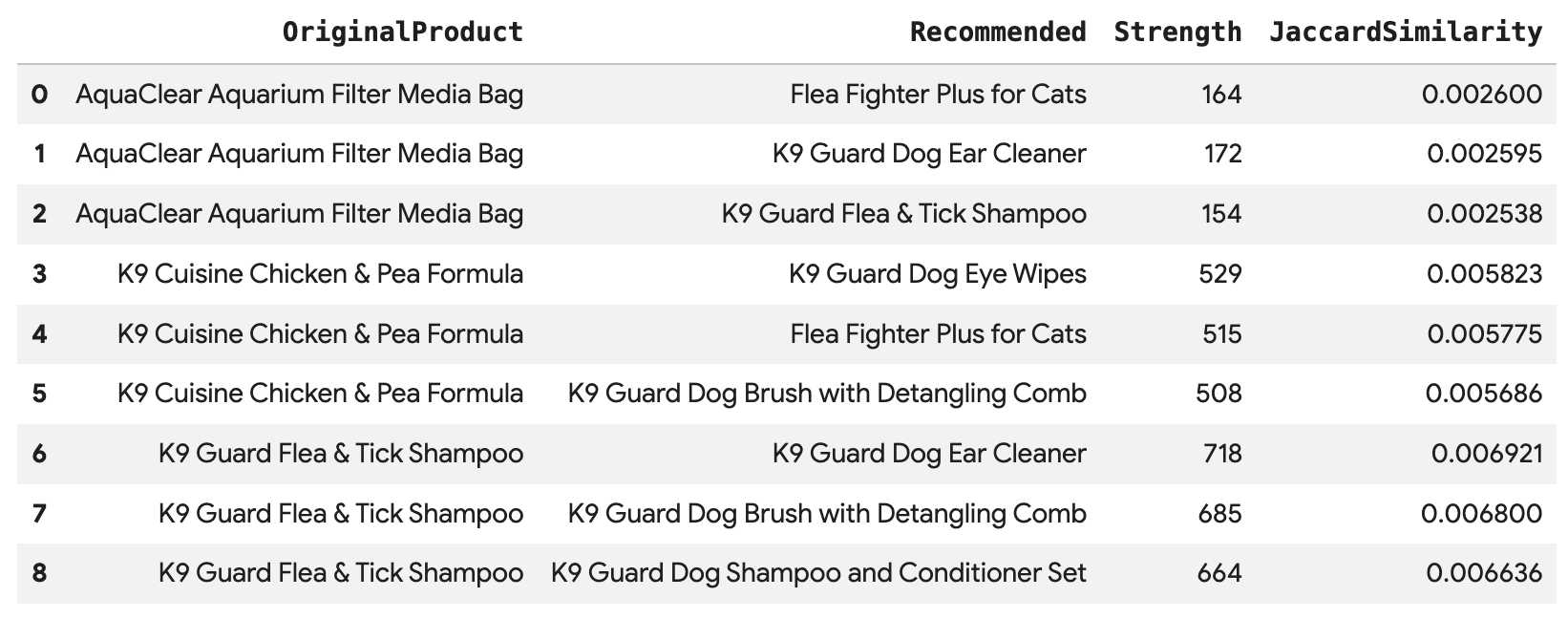

執行這項查詢,即可根據 Angelica 的每筆購買記錄,推薦前 3 名產品。這些產品會透過 BoughtTogether 邊緣直接連結,並顯示共同購買次數和 Jaccard 相似度:
SELECT * FROM GRAPH_TABLE(
cymbal_pets_demo.PetsOrderGraph
MATCH (customer:Customer {first_name: 'Angelica', last_name: 'Russell'})-[placed:Placed]->(ordr:Orders)
WHERE ordr.order_date >= date('2024-11-27')
MATCH (ordr)-[has:Has]->(product:Products)
MATCH (product)-[bought_together:BoughtTogether]->(recommended_product:Products)
RETURN
product.product_name AS OriginalProduct,
recommended_product.product_name AS Recommended,
bought_together.co_purchase_count AS Strength,
bought_together.jaccard_similarity AS JaccardSimilarity
)
-- Rank product recommendations by Jaccard Similarity
QUALIFY ROW_NUMBER() OVER (PARTITION BY OriginalProduct ORDER BY JaccardSimilarity DESC) <= 3
ORDER BY OriginalProduct;
這項查詢會從「顧客」->「訂單」->「產品」->「(BoughtTogether)」->「推薦產品」進行遍歷,根據集體購買行為顯示推薦產品,並擷取相似度分數。

10. 清除
為避免系統持續向您的 Google Cloud 帳戶收取費用,請刪除在本程式碼實驗室中建立的資源。
刪除資料集和所有資料表:
DROP SCHEMA IF EXISTS cymbal_pets_demo CASCADE;
如果您是為了這個程式碼實驗室建立新專案,也可以刪除專案:
gcloud projects delete $PROJECT_ID
11. 恭喜
恭喜!您已成功使用 BigQuery Graph 建構 360 度全方位客戶視圖和推薦引擎。
目前所學內容
- 如何在 BigQuery 建立屬性圖譜。
- 如何將資料載入圖表節點和邊。
- 如何使用
GRAPH_TABLE和MATCH查詢圖譜模式。 - 如何結合圖表查詢與向量搜尋,提供混合型推薦內容。
後續步驟
- 探索 BigQuery Graph 說明文件。
- 進一步瞭解 BigQuery 的向量搜尋功能。
