使用 BigQuery Graph 构建 Customer 360 推荐应用

1. 简介

在此 Codelab 中，您将学习如何使用 BigQuery Graph 为虚构零售公司 Cymbal Pets 构建客户 360 度视图和推荐引擎。您将利用 SQL 的强大功能直接在 BigQuery 中创建、查询和分析图数据，并将其与向量搜索相结合，以实现高级商品推荐。

借助 BigQuery Graph，您可以将数据实体（例如客户、商品和订单）之间的关系建模为图，从而轻松回答有关客户行为和商品亲和力的复杂问题。

使用场景图示

您将执行的操作

  • 为 Cymbal Pets 图创建 BigQuery 数据集和架构
  • 从 Cloud Storage 加载示例数据（客户、商品、订单、商店）
  • 在 BigQuery 中创建属性图，以连接这些实体
  • 使用图查询直观呈现客户交易记录
  • 使用向量搜索 构建商品推荐系统
  • 使用“一起购买”图关系增强推荐

所需条件

  • 网络浏览器，例如 Chrome
  • 启用了结算功能的 Google Cloud 项目

此 Codelab 适用于各种水平的开发者，包括新手。

2. 准备工作

创建 Google Cloud 项目

  1. 在 Google Cloud 控制台中，选择或创建 Google Cloud 项目。
  2. 确保您的 Cloud 项目已启用结算功能。

启动 Cloud Shell

  1. 点击 Google Cloud 控制台顶部的激活 Cloud Shell 。
  2. 核实身份验证：
gcloud auth list
  1. 确认您的项目：
gcloud config get project
  1. 根据需要进行设置：
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID

启用 API

运行此命令以启用所需的 BigQuery API：

gcloud services enable bigquery.googleapis.com

3. 定义架构

首先，您需要创建一个数据集来存储与图相关的表，并为节点和边定义架构。

  1. 在此 Codelab 中，我们将执行 SQL 命令。您可以在 BigQuery Studio > SQL 编辑器 中运行这些命令，也可以在 Cloud Shell 中使用 bq query 命令。新建 SQL 查询我们将假定您使用的是 BigQuery SQL 编辑器 ，以便更好地使用多行创建语句。
  2. 创建 cymbal_pets_demo 数据集：
CREATE SCHEMA IF NOT EXISTS cymbal_pets_demo;
  1. 为 order_items、products、orders、stores、customers 和 co_related_products_for_angelica 创建表。这些表将作为图的源数据。
CREATE TABLE IF NOT EXISTS cymbal_pets_demo.order_items
(
  order_id INT64,
  product_id INT64,
  order_item_id INT64,
  quantity INT64,
  price FLOAT64,
  PRIMARY KEY (order_id, product_id, order_item_id) NOT ENFORCED
)
CLUSTER BY order_item_id;

CREATE TABLE IF NOT EXISTS cymbal_pets_demo.products
(
  product_id INT64,
  product_name STRING,
  brand STRING,
  category STRING,
  subcategory INT64,
  animal_type INT64,
  search_keywords INT64,
  price FLOAT64,
  description STRING,
  inventory_level INT64,
  supplier_id INT64,
  average_rating FLOAT64,
  uri STRING,
  embedding ARRAY<FLOAT64>,
  PRIMARY KEY (product_id) NOT ENFORCED
)
CLUSTER BY product_id;

CREATE TABLE IF NOT EXISTS cymbal_pets_demo.orders
(
  customer_id INT64,
  order_id INT64,
  shipping_address_city STRING,
  store_id INT64,
  order_date DATE,
  order_type STRING,
  payment_method STRING,
  PRIMARY KEY (order_id) NOT ENFORCED
)
PARTITION BY order_date
CLUSTER BY order_id;

CREATE TABLE IF NOT EXISTS cymbal_pets_demo.stores
(
  store_id INT64,
  store_name STRING,
  address_state STRING,
  address_city STRING,
  latitude FLOAT64,
  longitude FLOAT64,
  opening_hours STRUCT<Monday STRING, Tuesday STRING, Wednesday STRING, Thursday STRING, Friday STRING, Saturday STRING, Sunday STRING>,
  manager_id INT64,
  PRIMARY KEY (store_id) NOT ENFORCED
)
CLUSTER BY store_id;

CREATE TABLE IF NOT EXISTS cymbal_pets_demo.customers
(
  customer_id INT64,
  first_name STRING,
  last_name STRING,
  email STRING,
  gender STRING,
  address_city STRING,
  address_state STRING,
  loyalty_member BOOL,
  PRIMARY KEY (customer_id) NOT ENFORCED
)
CLUSTER BY customer_id;

CREATE TABLE IF NOT EXISTS cymbal_pets_demo.co_related_products_for_angelica
(
  angelica_product_id INT64,
  other_product_id INT64,
  co_purchase_count INT64
);

您现在已定义图数据的结构。

4. 加载数据

现在，使用 Cloud Storage 中的示例数据填充表。

在 BigQuery SQL 编辑器中运行以下 LOAD DATA 语句：

LOAD DATA INTO `cymbal_pets_demo.customers`
FROM FILES (
    format = 'AVRO',
    uris = ['gs://sample-data-and-media/cymbal-pets/tables/customers/*.avro']
);

LOAD DATA INTO `cymbal_pets_demo.order_items`
FROM FILES (
    format = 'AVRO',
    uris = ['gs://sample-data-and-media/cymbal-pets/tables/order_items/*.avro']
);

LOAD DATA INTO `cymbal_pets_demo.orders`
FROM FILES (
    format = 'AVRO',
    uris = ['gs://sample-data-and-media/cymbal-pets/tables/orders/*.avro']
);

LOAD DATA INTO `cymbal_pets_demo.products`
FROM FILES (
    format = 'AVRO',
    uris = ['gs://sample-data-and-media/cymbal-pets/tables/products/*.avro']
);

LOAD DATA INTO `cymbal_pets_demo.stores`
FROM FILES (
    format = 'AVRO',
    uris = ['gs://sample-data-and-media/cymbal-pets/tables/stores/*.avro']
);

您应该会看到确认消息，表明行已加载到每个表中。

5. 创建属性图

加载数据后，您现在可以定义属性图 了。这会告知 BigQuery 哪些表代表节点 （例如客户、商品等实体），哪些表代表边 （例如“访问过”“已下单”“有”等关系）。

图表架构

运行以下 DDL 语句：

CREATE OR REPLACE PROPERTY GRAPH cymbal_pets_demo.PetsOrderGraph
NODE TABLES (
  cymbal_pets_demo.customers KEY(customer_id) LABEL Customer,
  cymbal_pets_demo.products KEY(product_id) LABEL Products,
  cymbal_pets_demo.stores KEY(store_id) LABEL Stores,
  cymbal_pets_demo.orders KEY(order_id) LABEL Orders
)
EDGE TABLES (
  cymbal_pets_demo.orders as customer_to_store_edge
    KEY (order_id)
    SOURCE KEY (customer_id) references customers(customer_id)
    DESTINATION KEY (store_id) references stores(store_id)
    LABEL Visited
    PROPERTIES ALL COLUMNS,

  cymbal_pets_demo.order_items
    KEY (order_item_id)
    SOURCE KEY (order_id) references orders(order_id)
    DESTINATION KEY (product_id) references products(product_id)
    LABEL Has
    PROPERTIES ALL COLUMNS,

  cymbal_pets_demo.orders as customer_to_orders_edge
    KEY (order_id)
    SOURCE KEY (customer_id) references customers(customer_id)
    DESTINATION KEY (order_id) references orders(order_id)
    LABEL Placed
    PROPERTIES ALL COLUMNS,

  cymbal_pets_demo.co_related_products_for_angelica
    KEY (angelica_product_id)
    SOURCE KEY (angelica_product_id) references products(product_id)
    DESTINATION KEY (other_product_id) references products(product_id)
    LABEL BoughtTogether
    PROPERTIES ALL COLUMNS
);

这会创建图 PetsOrderGraph，以便我们使用 GRAPH_TABLE 运算符执行图遍历。

6. 直观呈现所有客户的购买历史记录

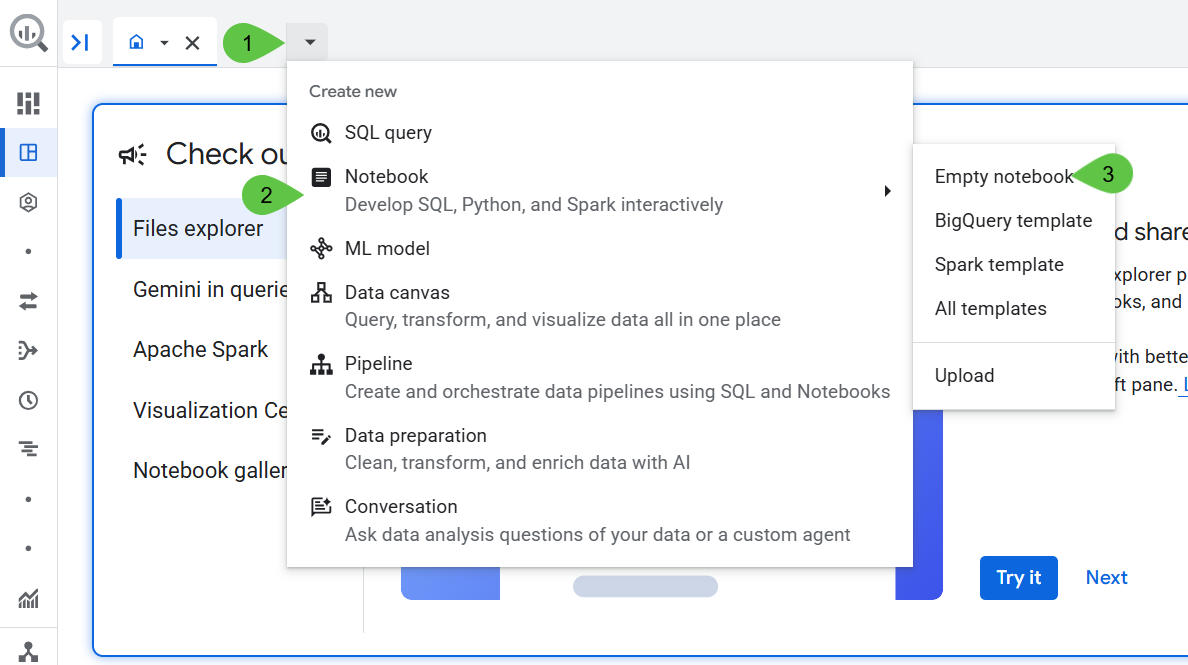

在 BigQuery Studio 中打开新建笔记本 。

创建新笔记本

对于此 Codelab 的可视化和推荐部分，我们将在 BigQuery Studio 中使用 Google Colab 笔记本。这样，我们就可以轻松直观呈现图结果。

BigQuery Graph 笔记本以 IPython 魔法命令的形式实现。通过添加带有 TO_JSON 函数的 %%bigquery 魔法命令，您可以直观呈现结果，如以下部分所示。

假设 Cymbal Pets 想要获得所有客户及其在特定时间窗口内所购商品的 360 度可视化视图。

在新单元格中运行以下命令：

%%bigquery --graph

GRAPH cymbal_pets_demo.PetsOrderGraph
  # finds the customer node and then finds all
  # the Orders nodes that are connected to that customer through the
  # Placed relationship
  MATCH (customer:Customer)-[placed:Placed]->(ordr:Orders)-[has:Has]->(product:Products)
  # filters the Orders nodes to only include those where the
  # order_date is within the last 3 months.
  WHERE ordr.order_date >= date('2024-11-27')
  # # This line finds all the Products nodes that are connected to the
  # # filtered Orders nodes through the Has relationship.
  MATCH p=(customer:Customer)-[placed:Placed]->(ordr:Orders)-[has:Has]->(product:Products)
  LIMIT 40
  RETURN
    TO_JSON(p) as paths

您应该会看到图结果的可视化表示。

所有客户的购买历史记录

7. 直观呈现 Angelica 的购买历史记录

假设 Cymbal Pets 想要深入了解一位名为 Angelica Russell 的客户。他们想要分析 Angelica 在过去 3 个月内购买的商品以及客户访问过的商店。

%%bigquery --graph

GRAPH cymbal_pets_demo.PetsOrderGraph
  # finds the customer node with the name "Angelica Russell" and then finds all
  # the Orders nodes that are connected to that customer through the
  # Placed relationship and all the Products nodes that are connected to the
  # filtered Orders nodes through the Has relationship.
   MATCH p=(customer:Customer {first_name: 'Angelica', last_name: 'Russell'})-[placed:Placed]->(ordr:Orders)-[has:Has]->(product:Products)
  # filters the Orders nodes to only include those where the
  # order_date is within the last 3 months.
  WHERE ordr.order_date >= date('2024-11-27')
  # finds the Stores nodes where Angelica placed order from
  MATCH p2=(customer)-[visited:Visited]->(store:Stores)
  RETURN
    TO_JSON(p) as path, TO_JSON(p2) as path2

Angelica 的购买记录

8. 使用向量搜索进行商品推荐

Cymbal Pets 想要根据 Angelica 最近购买的商品向她推荐商品。我们可以使用向量搜索 查找与她过去购买的商品具有相似嵌入的商品。

在新 Colab 单元格中运行以下 SQL 脚本。此脚本：

  1. 识别 Angelica 最近购买的商品。
  2. 使用 VECTOR_SEARCH 从 products 表中查找前 4 个类似商品。

注意：此步骤假定您已运行 AI.GENERATE_EMBEDDINGS 以在商品表中创建嵌入列。

%%bigquery
DECLARE products_bought_by_angelica ARRAY<INT64>;

-- 1. Get IDs of products bought by Angelica
SET products_bought_by_angelica = (
  SELECT ARRAY_AGG(product_id) FROM
   GRAPH_TABLE(
    cymbal_pets_demo.PetsOrderGraph
      MATCH (c:Customer {first_name: 'Angelica', last_name: 'Russell'})-[placed:Placed]->(o:Orders)
      WHERE o.order_date >= date('2024-11-27')
      MATCH (o)-[has_edge:Has]->(p:Products)
      RETURN DISTINCT p.product_id as product_id
  ));

-- 2. Find similar products using vector search
SELECT
  query.product_name as AngelicaBought,
  base.product_name as RecommendedProducts,
  base.category
FROM
  VECTOR_SEARCH(
    TABLE cymbal_pets_demo.products,
    'embedding',
    (SELECT * FROM cymbal_pets_demo.products
     WHERE product_id IN UNNEST(products_bought_by_angelica)),
    'embedding',
    top_k => 4)
WHERE query.product_name <> base.product_name;

您应该会看到一个推荐商品列表，这些商品在语义上与 Angelica 购买的商品相似。

Vector Search 结果

9. 使用“一起购买”关系进行推荐

另一种强大的推荐技术是“协同过滤” - 推荐其他用户经常一起购买的商品。我们在图中将其建模为 BoughtTogether 边。

为了推荐一起购买的商品，Cymbal Pets 执行了分析型离线图查询，以查找要为 Angelica 购买的每件商品推荐的热门商品。

%%bigquery
CREATE OR REPLACE TABLE cymbal_pets_demo.co_related_products_for_angelica AS
SELECT
    angelica_product_id,
    other_product_id,
    co_purchase_count
FROM (
    SELECT
        angelicaProduct.product_id AS angelica_product_id,
        otherProduct.product_id AS other_product_id,
        count(otherProduct) AS co_purchase_count,
        # ensures that the row numbering is done separately for each angelica_product_id
        ROW_NUMBER() OVER (PARTITION BY angelicaProduct.product_id ORDER BY count(otherProduct) DESC) AS rn
    FROM
        GRAPH_TABLE (cymbal_pets_demo.PetsOrderGraph
          MATCH (angelica:Customer {first_name: 'Angelica', last_name: 'Russell'})-[:Placed]->(o:Orders)-[:Has]->(angelicaProduct:Products)
          WHERE o.order_date >= date('2024-11-27')
          WITH angelica, angelicaProduct
          MATCH (otherCustomer:Customer)-[:Placed]->(otherOrder:Orders)-[:Has]->(angelicaProduct) # Find orders where Angelica's products were bought
          WHERE otherCustomer <> angelica # Exclude Angelica's own orders
          WITH angelicaProduct, otherOrder
          MATCH (otherOrder)-[:HAS]->(otherProduct:Products) # Find other products in those orders
          WHERE angelicaProduct <> otherProduct # Exclude the original product.
          RETURN angelicaProduct, otherProduct, otherOrder
        )
    GROUP BY
        angelicaProduct.product_id, otherProduct.product_id
)
WHERE rn <= 3; # only keep top 3 co-related products

推荐逻辑

运行此查询以推荐通过 BoughtTogether 边直接与 Angelica 的购买商品相关联的商品：

%%bigquery
SELECT * FROM GRAPH_TABLE(
  cymbal_pets_demo.PetsOrderGraph
  MATCH (customer:Customer {first_name: 'Angelica', last_name: 'Russell'})-[placed:Placed]->(ordr:Orders)
  WHERE ordr.order_date >= date('2024-11-27')
  MATCH (ordr)-[has:Has]->(product:Products)
  MATCH (product)-[bought_together:BoughtTogether]->(recommended_product:Products)
  RETURN
    product.product_name AS OriginalProduct,
    recommended_product.product_name AS Recommended,
    bought_together.co_purchase_count AS Strength
);

此查询从客户 -> 订单 -> 商品 ->（一起购买）-> 推荐商品进行遍历，根据集体购买行为向您显示推荐。

一起购买

10. 清理

为避免系统向您的 Google Cloud 账号持续收取费用，请删除在此 Codelab 期间创建的资源。

删除数据集和所有表：

DROP SCHEMA IF EXISTS cymbal_pets_demo CASCADE;

如果您为此 Codelab 创建了一个新项目，也可以删除该项目：

gcloud projects delete $PROJECT_ID

11. 恭喜

恭喜！您已使用 BigQuery Graph 成功构建了客户 360 度视图和推荐引擎。

您学到的内容

  • 如何在 BigQuery 中创建属性图。
  • 如何将数据加载到图节点和边。
  • 如何使用 GRAPH_TABLE 和 MATCH 查询图模式。
  • 如何将图查询与向量搜索相结合，以实现混合推荐。
